BDS 2.25 Inch Lift Kit | FOX 3.0 Internal Bypass Factory Race Series | Toyota Tundra (22-25)
Elevate your 2022-2024 Toyota Tundra truck to new heights with the 2.25 inch lift kit featuring FOX 3.0 Internal Bypass Factory Race Coilovers from BDS Suspension. Enhance your truck's stance, performance, and capabilities with this all-inclusive kit, providing ample clearance for up to 35" tyres. Transform your truck today!

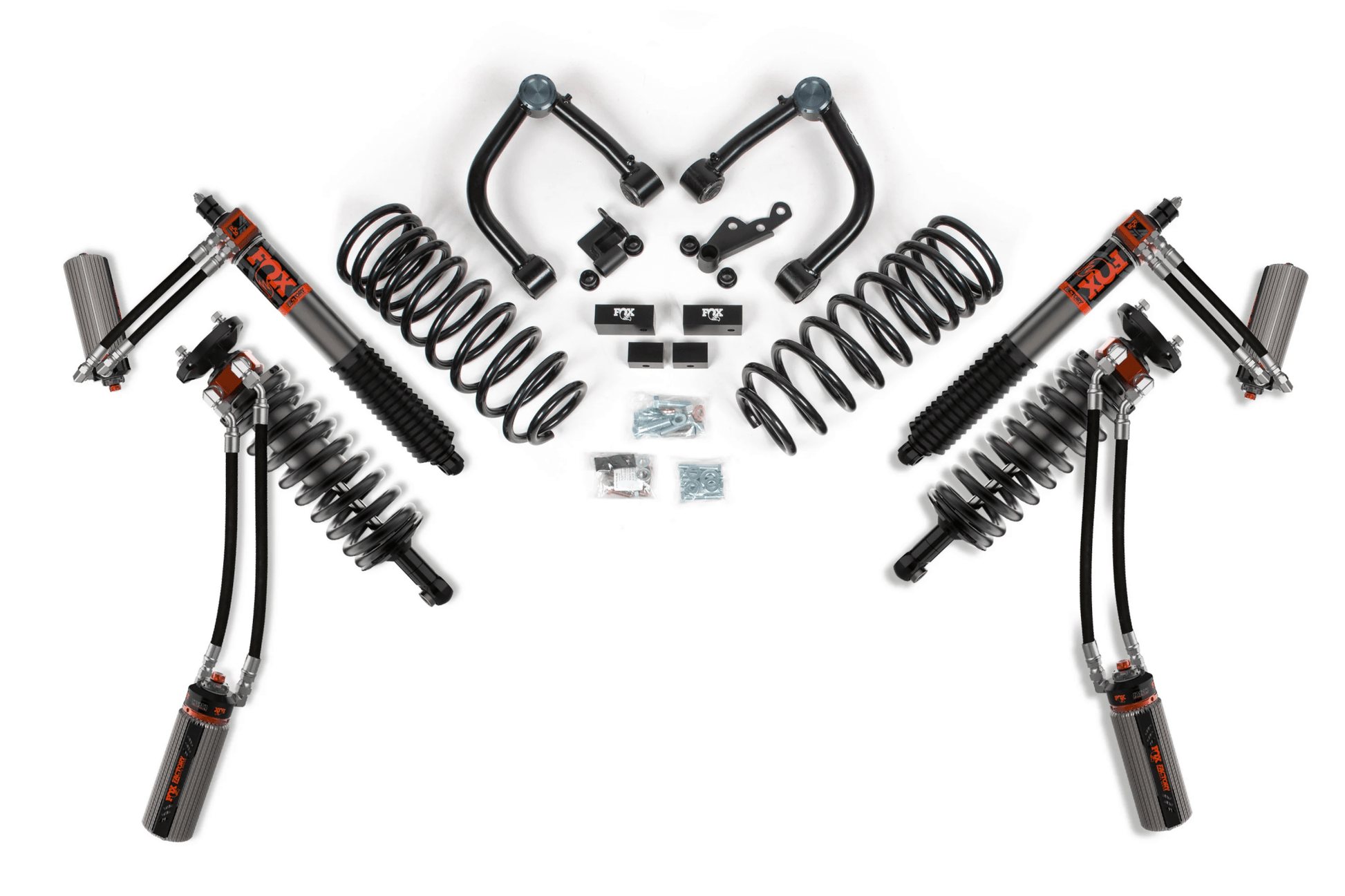

Transform your Toyota Tundra (22-24) into a high-performance machine with the BDS 2.25 Inch Lift Kit. Experience the thrill of FOX 3.0 Internal Bypass Factory Race Series coilovers, heavy duty tubular upper control arms, BDS heavy duty diff. drop brackets, and solid aluminium sway bar drop blocks. And in the rear, enjoy the unbeatable combination of 1-3/4" BDS heavy duty coil springs and FOX 3.0 Factory Race shocks with DSC remote reservoirs that deliver the smoothest ride possible. Upgrade now and unleash the full potential of your truck!
FOX Factory Race Series
FOX Factory Race Series 3.0 Internal Bypass shocks for the Toyota Tundra deliver position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit. Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston.
Finned external reservoirs and aluminum shock bodies keep shock fluid temperatures cool for better performance. Type III anodization prevents corrosion and wear of the 3-inch diameter bodies. The DSC adjuster allows you to dial in your Tundra for load, environment, and driving style. FOX Internal Bypass shocks deliver the support and confidence you need while driving high-speed through rugged terrain. Experience race-bred performance next time you leave the pavement.
HD Upper Control Arms (UCA)
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminium dust cap ready for installation right out of the box.
