BDS Suspension

BDS 2 Inch Lift Kit | FOX 2.0 Coil-Over | DS Ram 1500 13-25

BDS 2 Inch Lift Kit | FOX 2.0 Coil-Over | DS Ram 1500 13-25

SKU: BDS1665FSL

Regular price $4,999.00
Regular price Sale price $4,999.00
Sale Sold out
Shipping calculated at checkout.

We will contact you within 24hrs for confirmation on the lead time on this product and also to ensure that this is the correct product for your vehicle.

lead times: If you purchase this product and it is not in stock in store but is available in country, the expected shipping time is 1 - 2 weeks. If the product is not in country, both air freight and sea freight options are available and the expected shipping time is estimated 2 - 16 weeks.

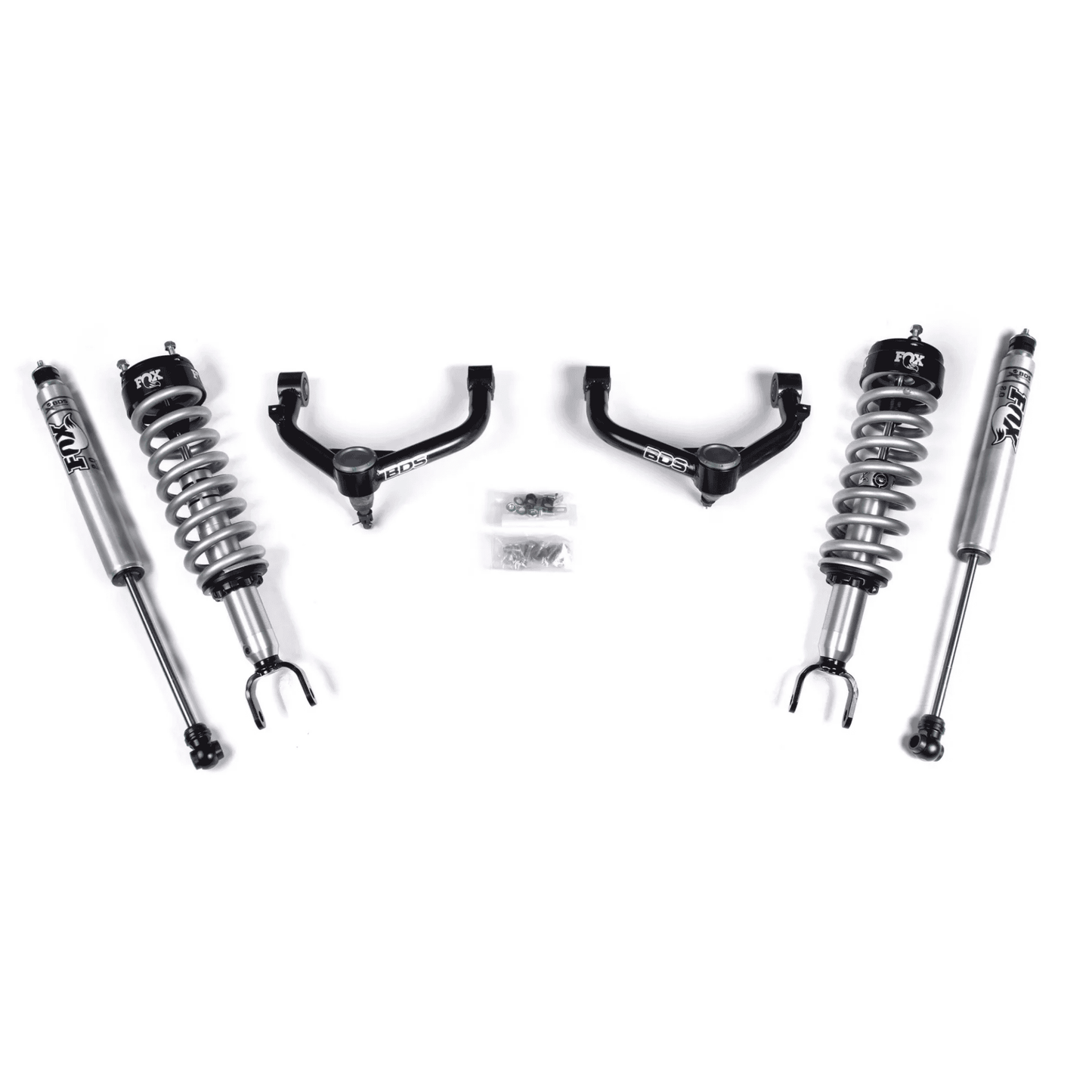

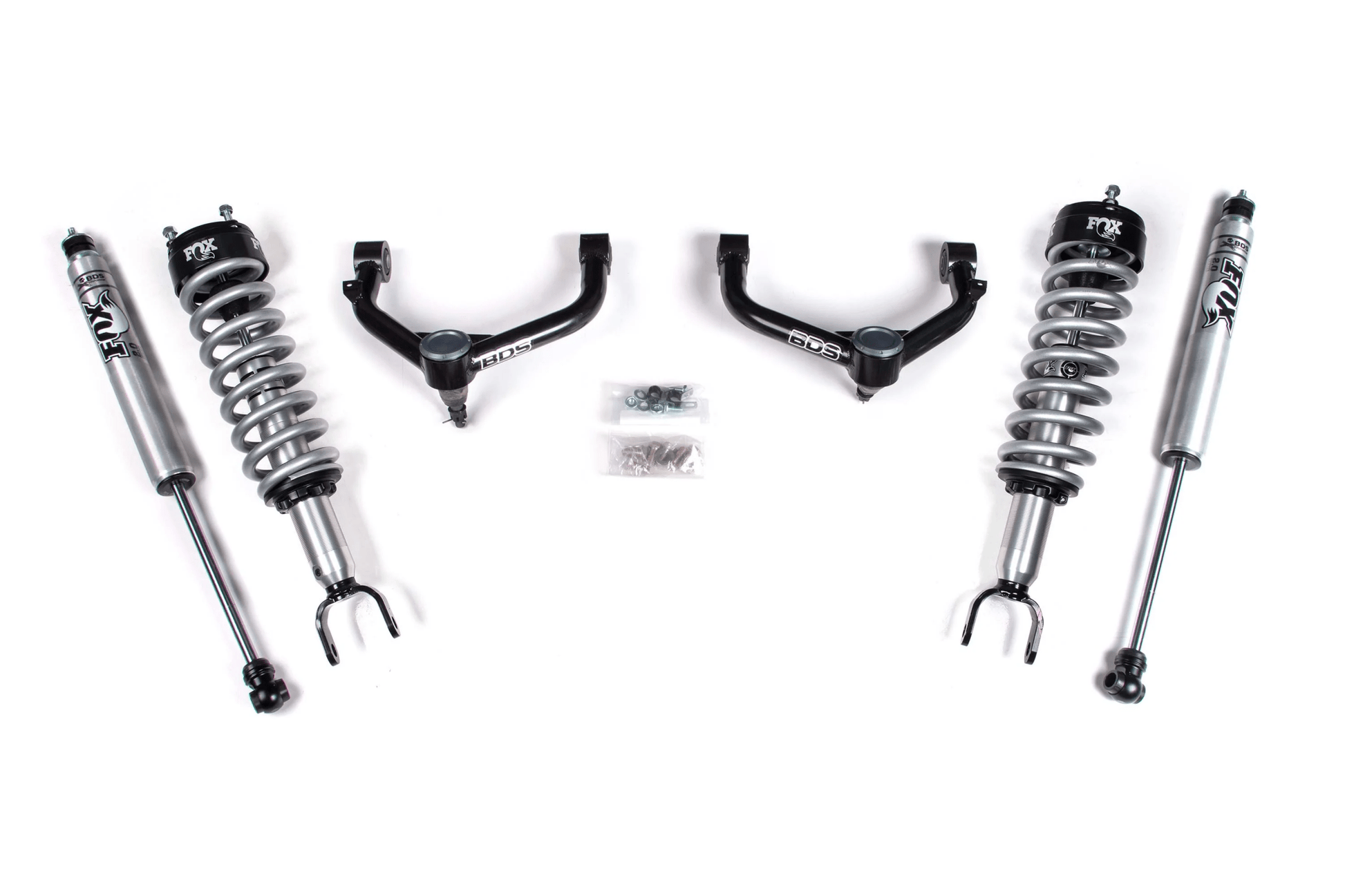

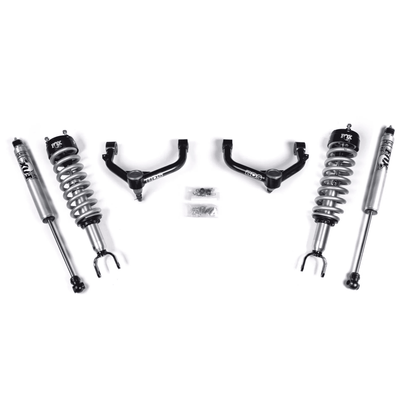

BDS 2" Lift Kit DS RAM 1500 2013 - 2025

Transform and enhance your 2013-2018 RAM 1500 4WD truck with this exceptional 2-inch leveling kit, complete with FOX 2.0 coil-over shocks from BDS Suspension. This kit is specifically designed to elevate both the stance and performance of your truck, giving you the confidence to tackle any terrain.

With enough clearance for up to 33" tyres, this kit includes everything you need to raise your truck to the next level. Equipped with heavy duty tubular upper control arms and FOX 2.0 Performance Series coil-over shocks, this kit provides unbeatable strength and stability in the front. Complete with a matching set of FOX 2.0 Performance shocks in the rear, you are guaranteed the smoothest ride on and off the road.

FOX 2.0 Coil-Over Shocks

Get ready for amazing damper performance and a smooth ride on and off the road with these FOX 2.0 Performance Series coil-overs. Designed as a direct bolt-in replacement for the factory strut, these coil-overs boast a 2.0" extruded and machined 6061 T6 aluminium body for superior heat dispersion. With an internal floating piston (IFP) that eliminates oil aeration, FOX's proprietary internals, and a 5/8" hard chrome plated heat treated alloy shaft, these coil-overs are sure to impress. Plus, they come preloaded with springs and top-plate for effortless installation. Don't miss out on this incredible upgrade for your vehicle!

HD Upper Control Arms

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.







Specifications

Front Lift Method : Coil-Over
Front Lift Height : 2"
Rear Lift Method : Stock
Rear Lift Height : 0"
Shocks Included : Yes

Features

Features & Benefits
FOX 2.0 performance series struts offer improved damper performance over factory and are a direct bolt-in replacement
Performance UCAs increase strength and allow for more suspension travel
FOX 2.0 performance series IFP rear shocks included
Factory Protection Plus drivetrain warranty included

Easy, 100% Bolt on installation

Vehicle Suitability

Vehicle Suitability
DS RAM 2013 - 2024
Will not suit DT RAM 2019 +

Installation

Est. Install Time :
3-4 hrs
Difficulty Level :
Easy

Installation Notes

Recommendations

Recommended Tyres & Wheels

(Trimming may be required)

33 x 12.5 with 18 x 9 and 5 in. Backspace
33 x 12.5 with 20 x 9 and 5 in. Backspace

What's In The Box

Important Notes

The stock wheel/tire can be reinstalled. Stock wheel with wider 12.50 tires cannot due to clearance issue to UCA at full steering lock.
Vehicles equipped with Offroad or Rebel Package will not achieve the full 2" of lift, net ride height change will be around 1" above stock.
Will not fit adjustable air suspension equipped models.
