BDS 3 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (23-24) 4WD

BDS 3 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (23-24) 4WD

SKU: BDS2200FPE

$12,899.99
$12,899.99
Sale Sold out
Shipping calculated at checkout.

We will contact you within 24hrs for confirmation on the lead time on this product and also to ensure that this is the correct product for your vehicle.

lead times: If you purchase this product and it is not in stock in store but is available in country, the expected shipping time is 1 - 2 weeks. If the product is not in country, both air freight and sea freight options are available and the expected shipping time is estimated 2 - 16 weeks.

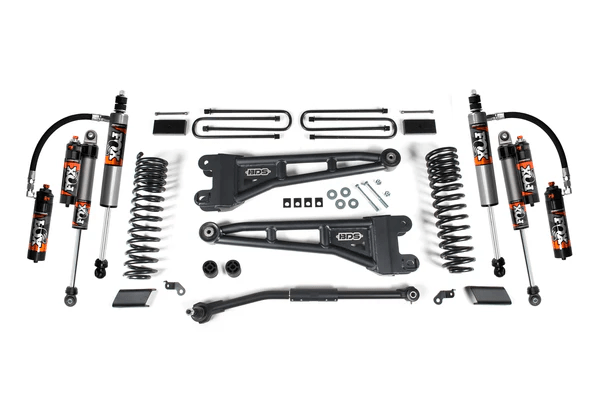

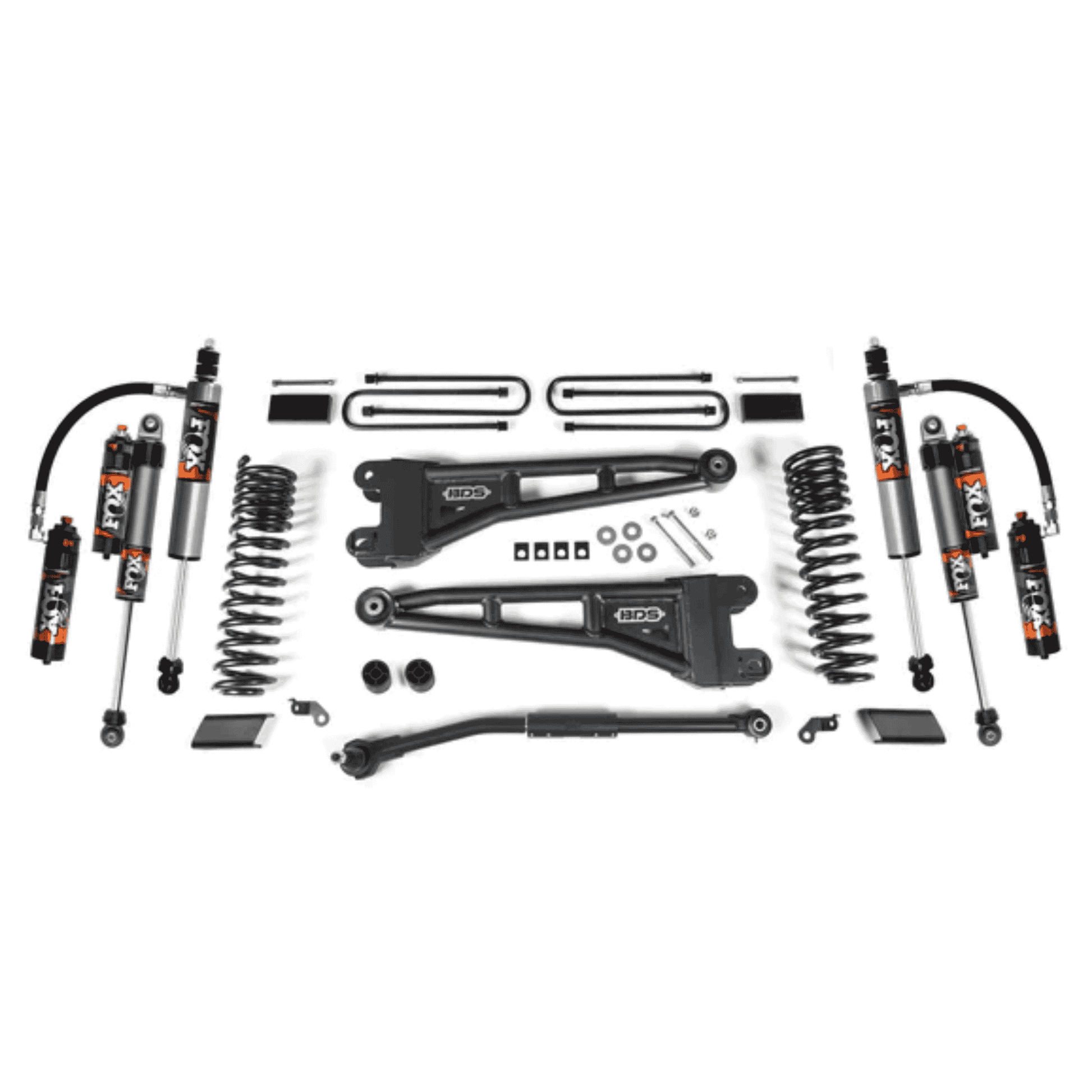

BDS 3 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (23-24) 4WD

Take your 23-24 Ford Super Duty truck to the next level with this 3-inch lift kit from BDS Suspension. Elevate your truck's stance, performance, and capabilities with ease. This all-inclusive kit allows you to clear up to 35" tyres, providing enhanced functionality and a sleek finish.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, sway bar relocation, brake line brackets Fox Performance elite 2.5 Suspension.

In the rear this kit utilises a high-strength fabricated lift block, longer u-bolts and a matching set

BDS 3 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (23-24) 4WD

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

HD Adjustable Track Bar

Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8" solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.





Specifications

Front Lift Method : Coil Spring
Front Lift Height : 3"
Rear Lift Method : Block
Rear Lift Height : 1"
Shocks Included : Yes

Features

Features & Benefits

Easy, 100% Bolt-on installation
Pro-Ride dual rate coil springs ride smooth through any terrain
Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
Adjustable solid steel track bar designed to recenter the front axle
Fabricated steel blocks provide level stance from front to rear
Standard NX2 Nitro shocks with vehicle-specific valving for better control
Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Vehicle Suitability

Installation

Est. Install Time :
5 hrs
Difficulty Level :
Moderate
Specialty Tools Needed :
30mm Socket, Pitman Arm Puller

Installation Notes

Recommendations


Recommended Tires & Wheels

(Trimming may be required)

35 x 12.5 with 17 x 9 and 5 in. Backspace
35 x 12.5 with 18 x 9 and 5 in. Backspace
35 x 12.5 with 20 x 9 and 5 in. Backspace

What's In The Box

Important Notes

Vehicles with radius arm mounted ride height sensors will require BDS123303.
Designed for use on diesel models, but can be installed on gas trucks, will achieve additional 1/2 inch front ride height.
Installation requires a torque wrench capable of 406 ft-lbs.
Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire fitment section.
Trucks without top mounted overload spring will require (x4) UBT4031 available to purchase separately.
Fits SRW models only.
Recalibration of your vehicles Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of the vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation. Please connect with your local dealership or ADAS service center. Similar to a wheel alignment, all charges and expenses that may occur from dealership calibrations and adjustments are the sole responsibility of the vehicle owner.
