BDS Suspension

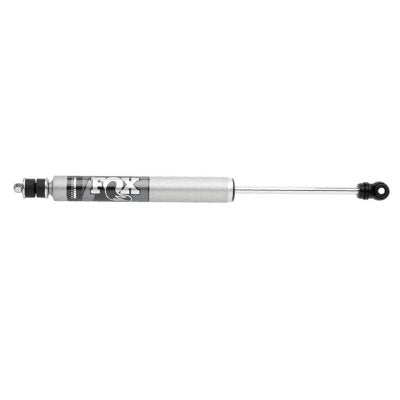

Front Fox 2.0" Shock to suit for 4-6" Lift Kit
Front Fox 2.0" Shock to suit for 4-6" Lift Kit
SKU: Fox98224752
Couldn't load pickup availability
We will contact you within 24hrs for confirmation on the lead time on this product and also to ensure that this is the correct product for your vehicle.
lead times: If you purchase this product and it is not in stock in store but is available in country, the expected shipping time is 1 - 2 weeks. If the product is not in country, both air freight and sea freight options are available and the expected shipping time is estimated 2 - 16 weeks.
Upgrade the on-road comfort and off-road control of your 2014-2018 Dodge Ram 2500 or 2013-2018 3500 4WD to FOX Performance Series 2.0 IFP (internal floating piston) front shocks. Designed to fit a BDS 4 to 6-inch lift suspension kit. The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.
FOX and BDS joined forces to custom valve each application to work perfectly with each BDS Suspension system. Based on FOX race products but re-designed to turn your BDS-equipped truck into an off-road machine providing a predictable ride - capable of handling the roughest conditions with fade-free performance.
Specifications
Specifications
Adjustable Damping No
Compressed Length 17.15
Extended Length 28.25
Finish Clear-anodized
Gas Charged Yes
Lower Mount Code EB1
Lower Mount Type Eyelet
Shaft Diameter 5_8
Travel Length 11.1
Type Smooth Body
Upper Mount Code S50
Upper Mount Type Stem
Features
Features
2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
5/8-inch hard chrome plated heat-treated alloy steel shaft
Race-developed high-flow piston design
Application-specific valving to maximize performance
Internal IFP mono-tube reservoir design
