Switch-Pros SP9100 Panel Power System

Switch-Pros SP9100 Panel Power System

4 in warehouse

SKU: Switch-Pros SP9100

$1,295.00
$1,295.00
Sale Sold out
Shipping calculated at checkout.

If you have purchased this item and it is out of stock, we will contact you within 24hrs.

    • Preset Dimming function WITH MEMORY (100% to 10% brightness)

    • Master Mode, with ability to turn up to 7 other switches On AND Off with one touch

    • On/Off or Momentary

    • Ignition or Battery Input

    • Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation

    • Automatic Power-Up upon vehicle start up

    • Time Delay off

    • No bulky relay box

    • Two External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)

    • Low Voltage Disconnect

    • Sleep Mode for minimal power consumption

    • Daisy Chain up to 3 Switch Panels to One Power Module

    Proudly made in the USA

    Specifications

    125amp capacity with 8 outputs

    8 Outputs: 4 rated @ 35A, 4 rated @ 20A

    Adjustable Output Overcurrent Values

    Switch Panel enclosure measures 4” L x 2” W x .375” H

    Power Module Measures 6”L x 3”W x .5”H (excluding connectors)

    Power Module Under Hood rating 125°C to -40°C

    Switch Panel and Power Module Waterproof rating of IP67

    Features

    RGB Backlighting

    Built-in Bluetooth module for use with free Switch-Pros App

    Program and operate your panel from any device with access to the iOs or Google Play Store

    Battery Voltage Readout on App screen

    Orange LED switch indicators

    LED Input Status Indicators for easy troubleshooting on power module

    Ideal Tongue Weight

    Vehicle Suitability

    Installation

    Recommendations

    What's in the box

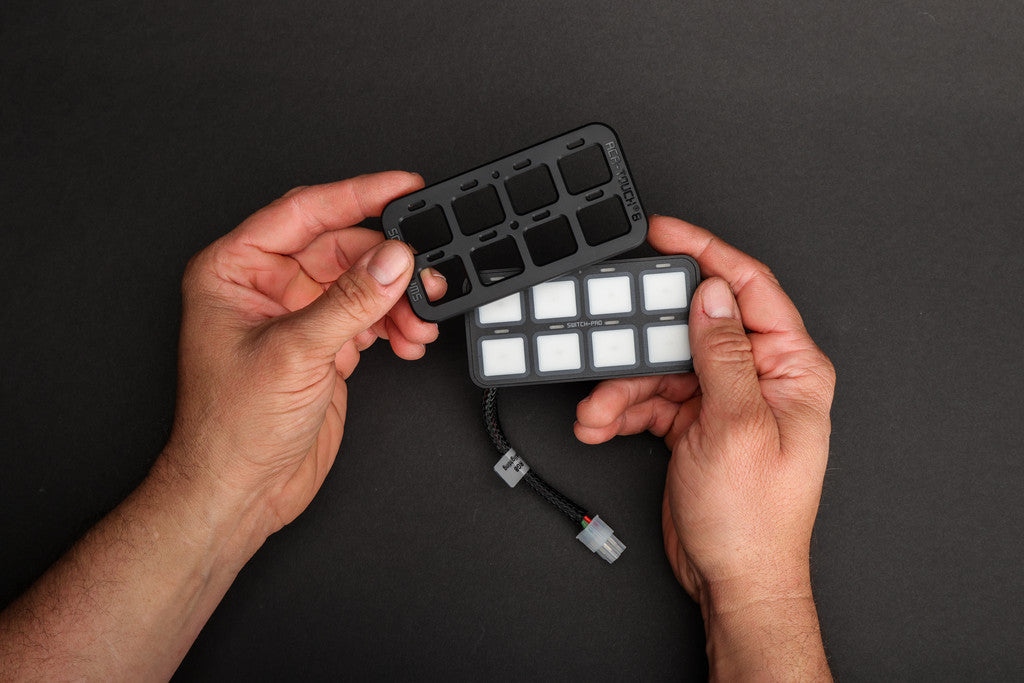

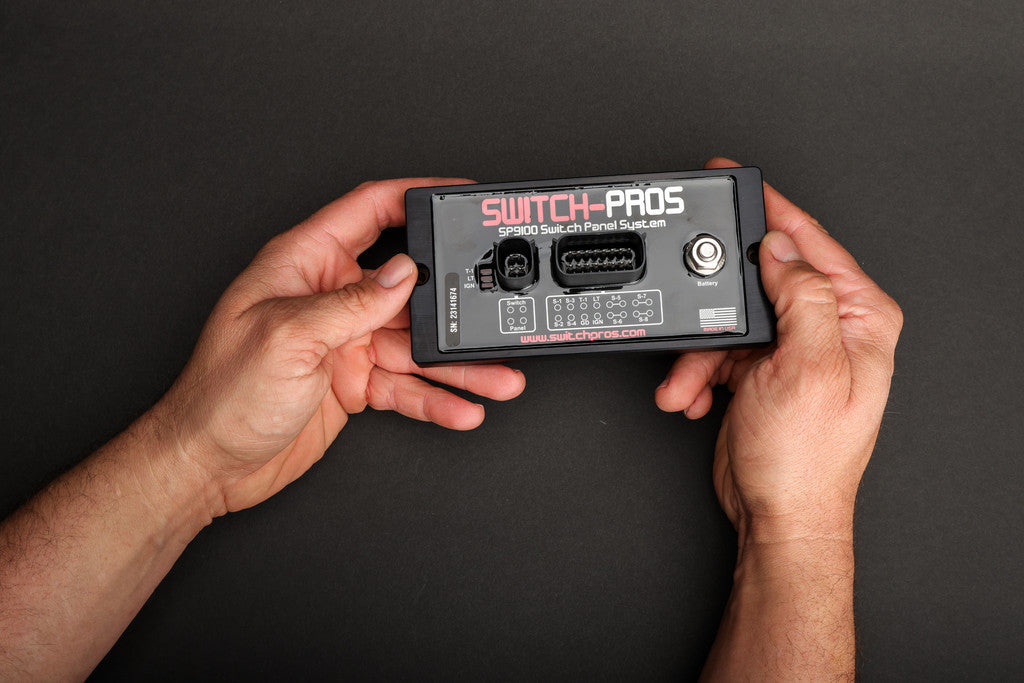

    Switch Panel and Power Module

    RCR-Touch®8 cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain  (United States Design Patent No. US D922,969 S)

    11’ of Communication Cable between Switch Panel and Power Module

    Power Cable with 125A inline fuse

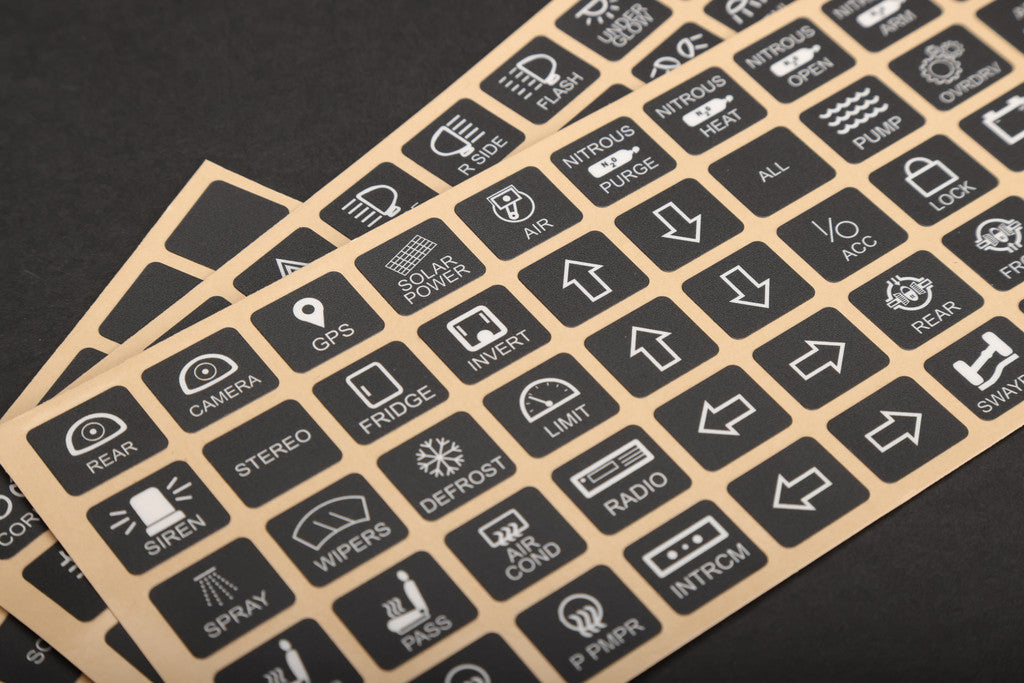

    125 User Selectable Legends included (Horizontal orientation)

    Installation brackets and hardware

    16-pin color coded output harness

    Detailed installation Guide
