Zone Offroad

3" Lift Kit with FOX 2.5 Performance Elite Shocks (Wrangler JL 2018-2022)

3" Lift Kit with FOX 2.5 Performance Elite Shocks (Wrangler JL 2018-2022)

Regular price $3,999.00 AUD
Regular price $7,999.00 AUD Sale price $3,999.00 AUD
Sale Sold out
Tax included.
3” SUSPENSION LIFT KIT 2018-2022 JEEP WRANGLER JL (4DR)

Take your Wrangler JL to new heights with this 3" lift kit from Zone Offroad. This 3" lift kit includes everything needed from full length coil springs and bump stop extensions to longer sway bar links, rear track bar bracket and lower cam washers. Get the look, performance, and capability your Jeep deserves with clearance for up to 37" tires.

QUICK SPECS
Front Lift Height: 3"
Rear Lift Height: 3"
Material: Steel
Front Lift Method: Coil Springs
Rear Lift Method: Coil Springs
Lift Type: Lift Kit
Wheel Size: 17 x 9
Back Spacing: 4.5"
Max Tire Size: 35 x 12.5
Is Adjustable: No
Cutting Required: No
Accommodates Factory Wheels: No
Welding Required: No

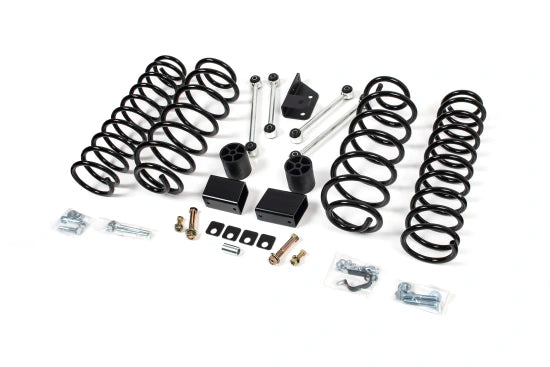

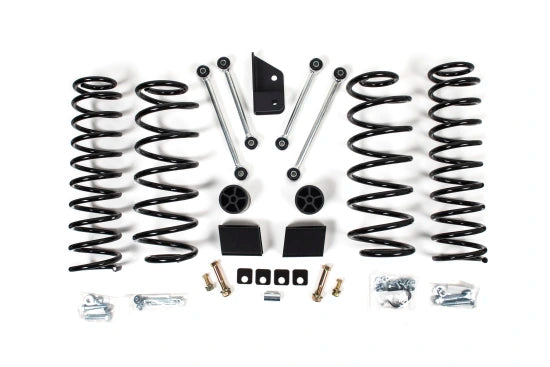

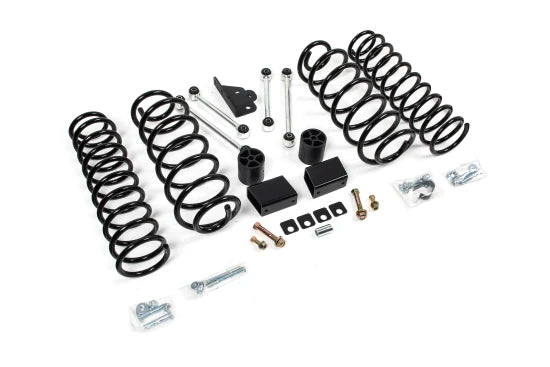

IN THE BOX
  • All Necessary Mounting / Installation Hardware
  • Bump Stop Extensions
  • Coil Springs
  • Sway Bar Links
  • Track Bar Relocation Bracket

FEATURES
  • Front and rear replacement coil springs s to lift
  • Front and rear bump stop extension to properly engage bump stops during hard compression
  • Front and rear sway bar links to correct sway bar operating angle
  • Front lower cam washers to correct caster
  • Rear track bar bracket to recenter axle under vehicle

IMPORTANT NOTES
  • Suits 4 Door Models ONLY
  • Does not fit Diesel Models
  • Non-Rubicon comes from factory at lower ride height, will net slightly more lift final stance the same for all models.
  • Stock wheels cannot be reinstalled without spacers due to rear sway bar interference.
  • Will not fit 4xe models.
  • Will not fit Rubicon 392 models.
ALSO INCLUDED

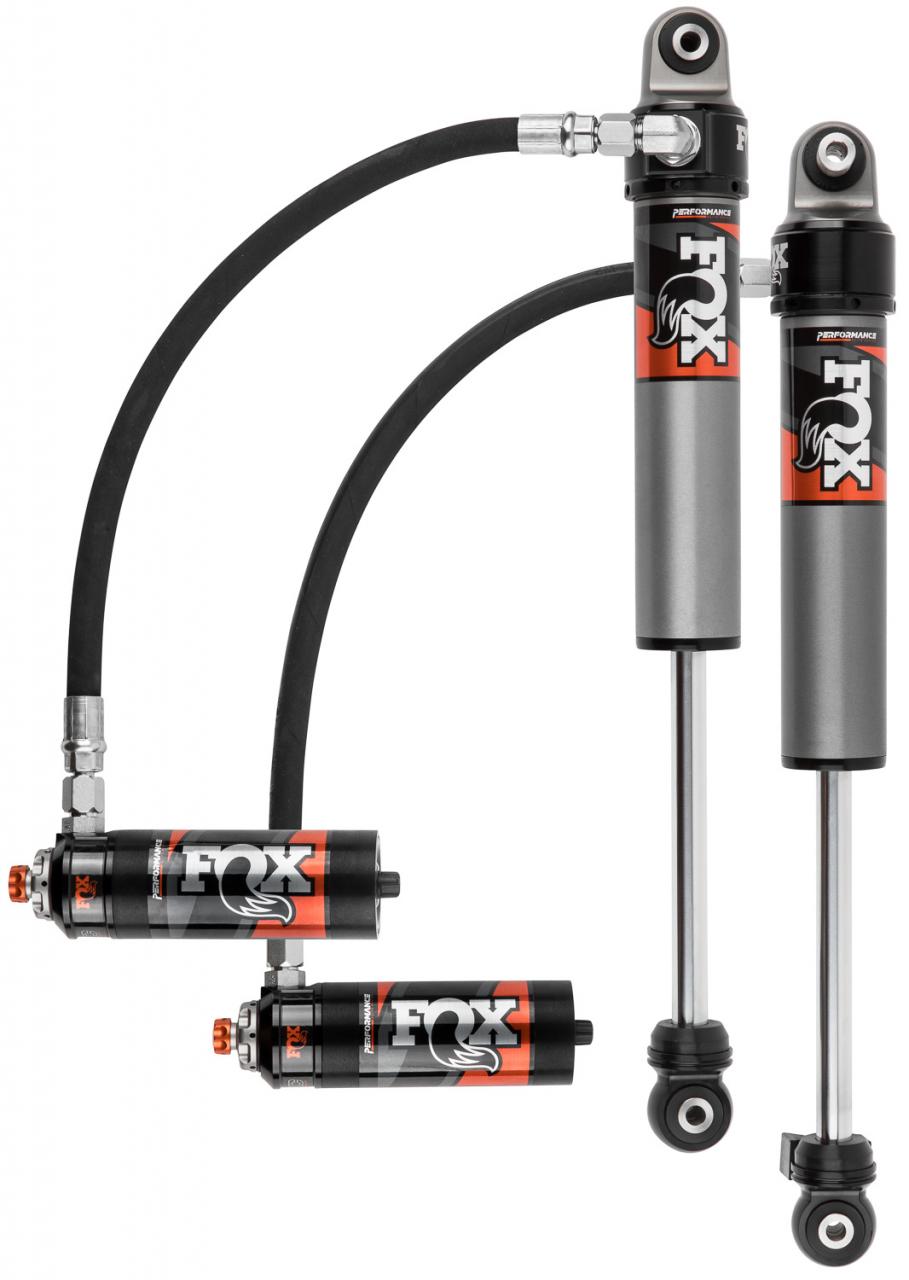

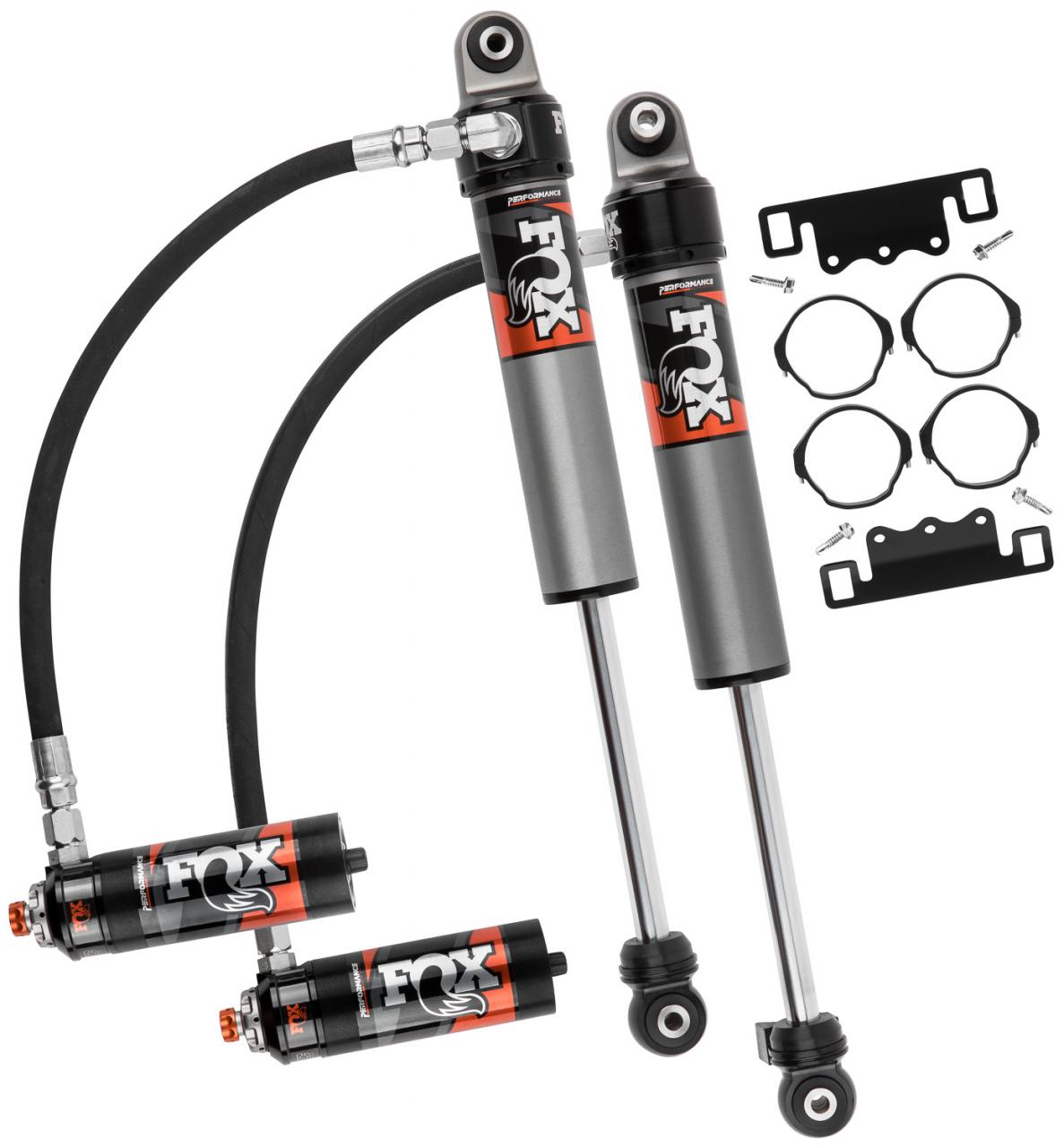

PERFORMANCE ELITE SERIES 2.5 RESERVOIR SHOCK (PAIR) - ADJUSTABLE - 883-26-050

Performance Elite Series 2.5 Reservoir smooth body shocks give you enhanced ride quality and the control you need when heading off the pavement. They take their design from our Off-Road race shocks, so they've been thoroughly perfected in brutal conditions that you will probably never see. Our athletes push the boundaries in competition to develop race-proven performance you can bolt onto your Truck or SUV.

The external reservoir allows for increased oil and nitrogen capacity while delivering a striking race look. Applications are available to fit most stock and lifted Trucks and SUVs. Our complete line of bolt-on, Performance Elite shocks provide improved damping in any terrain. Experience for yourself the incredible performance and precise control that Performance Elite Series 2.5 Reservoir shocks deliver.

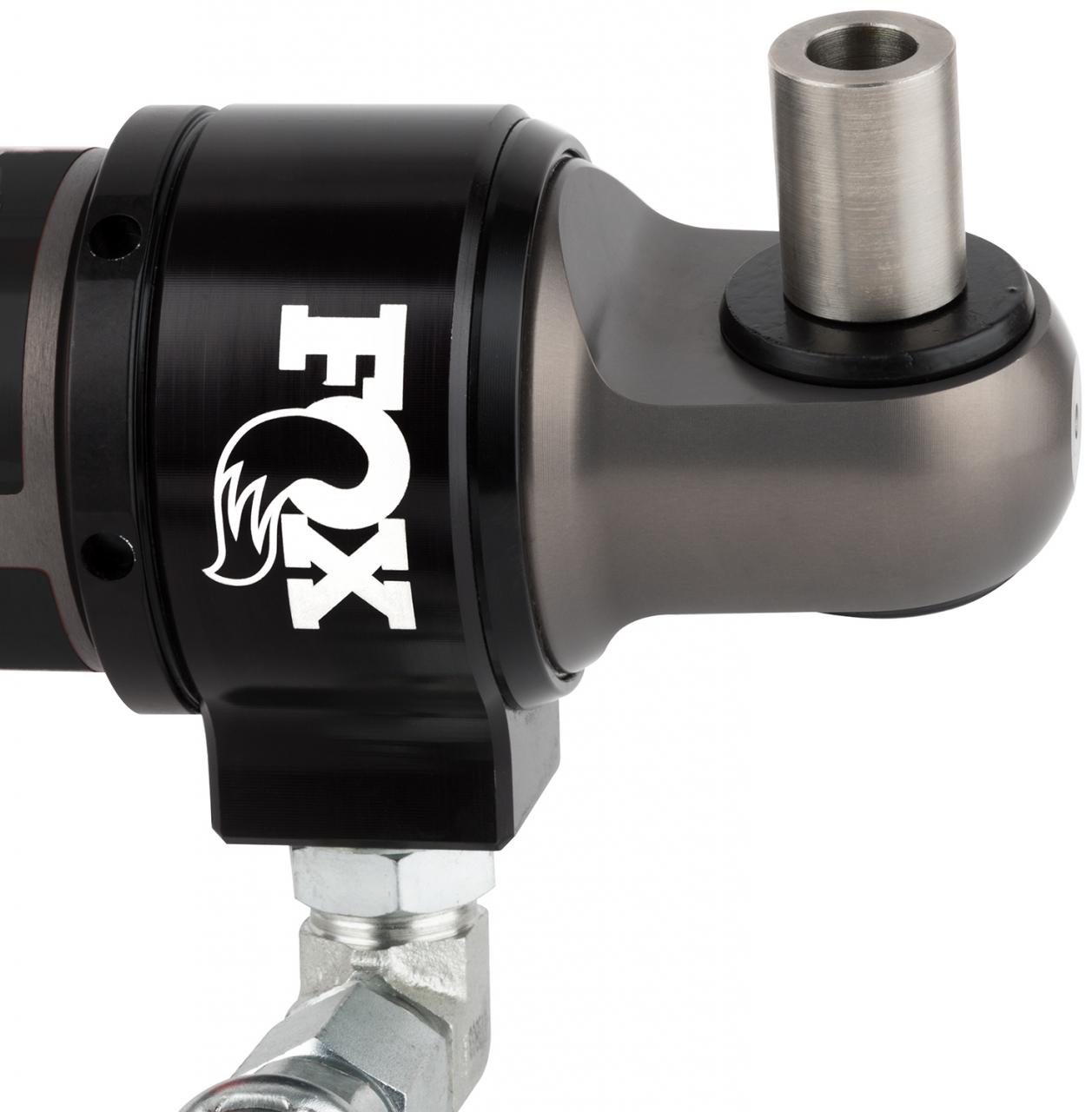

Body 2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time
Body Plating Hard-anodized for a durable finish
Reservoir External reservoir design separates shock oil from the high-pressure nitrogen
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft 7/8" hard chrome plated heat-treated alloy steel
Piston Race-developed high-flow piston design
Valving Application specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal
Bearing PTFE-lined, heat-treated, alloy steel spherical

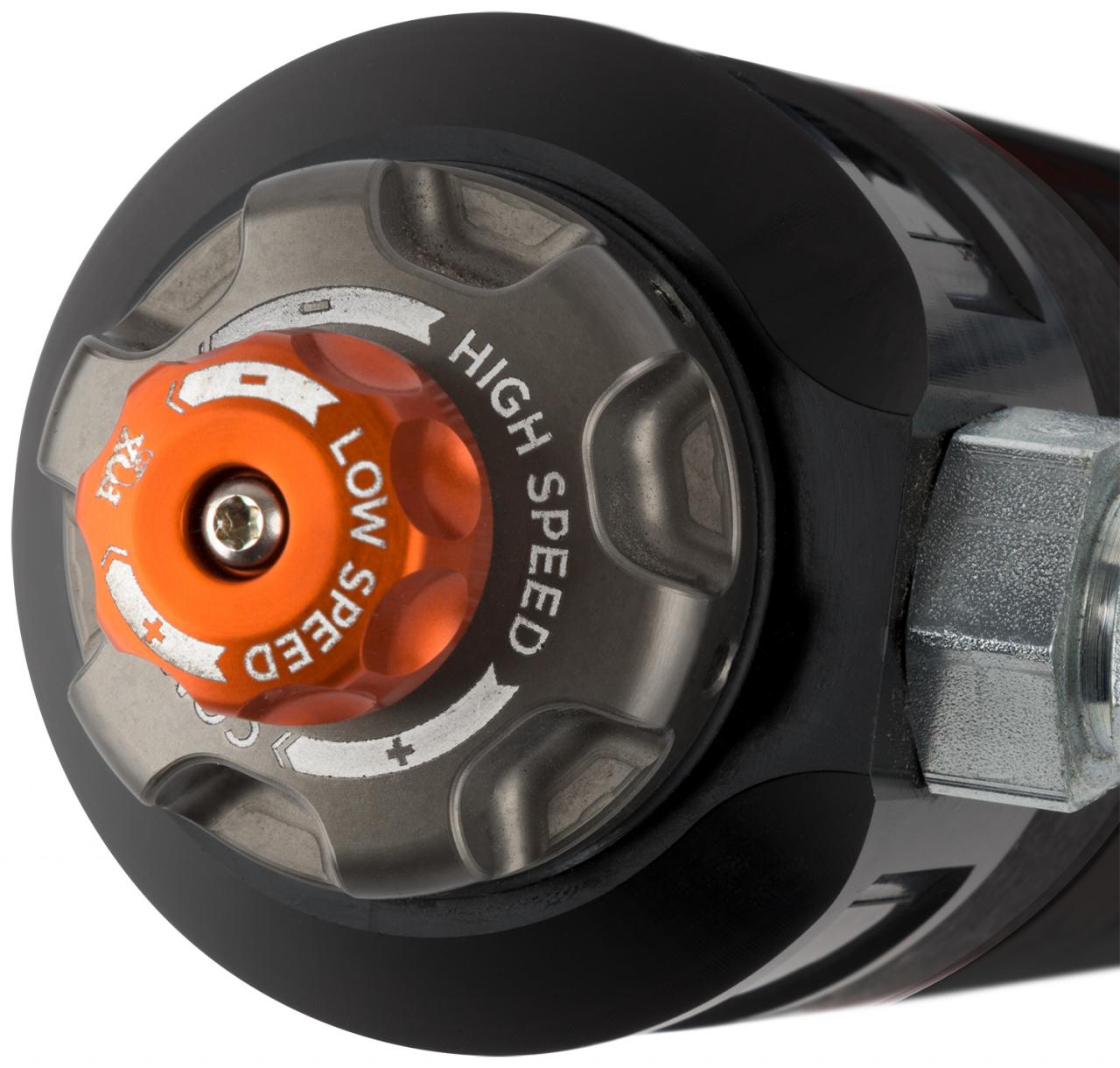

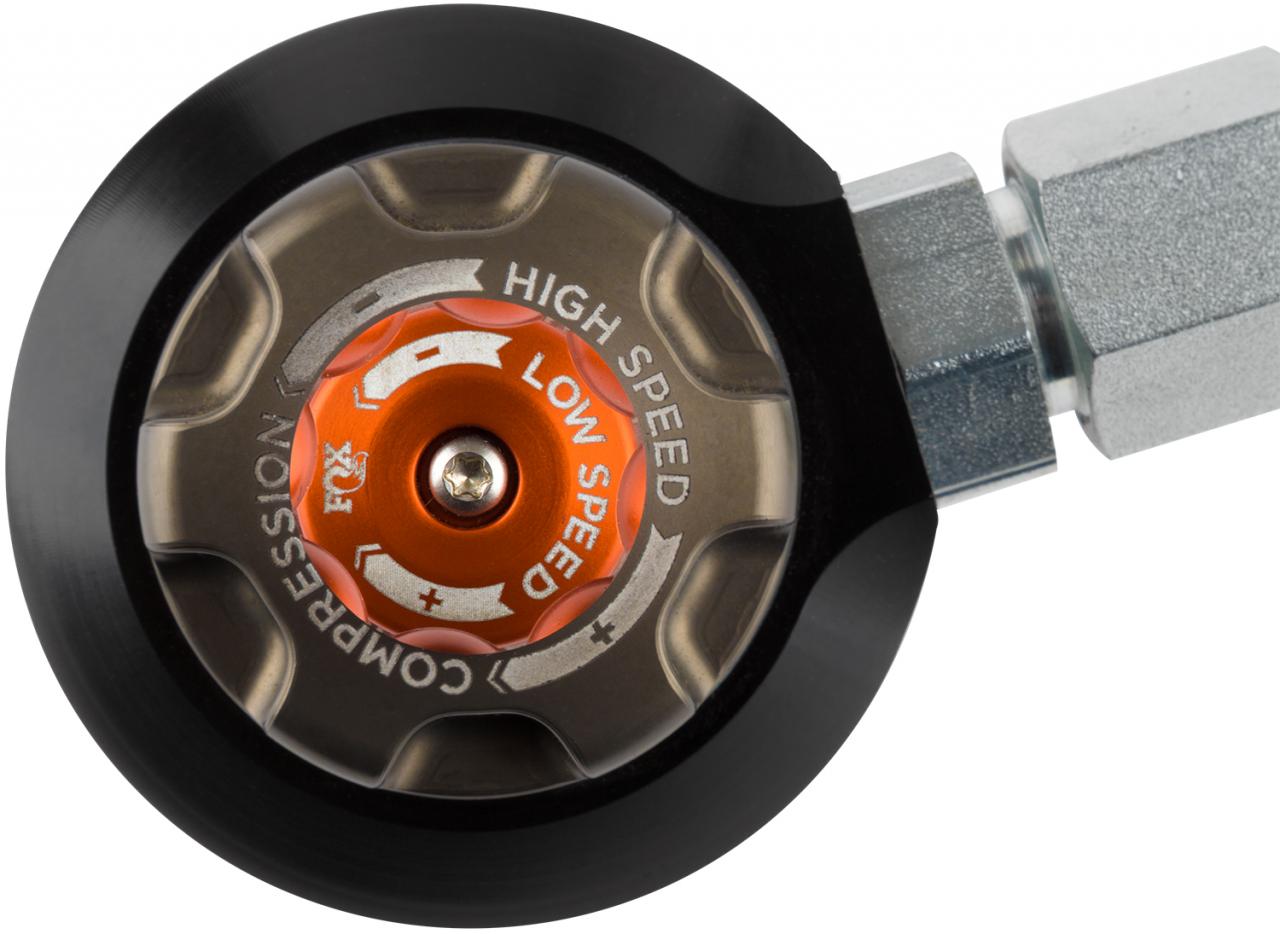

Adjuster Type DSC - Dual Speed Compression
Extended 26.510
Compressed 16.340
Travel 10.170

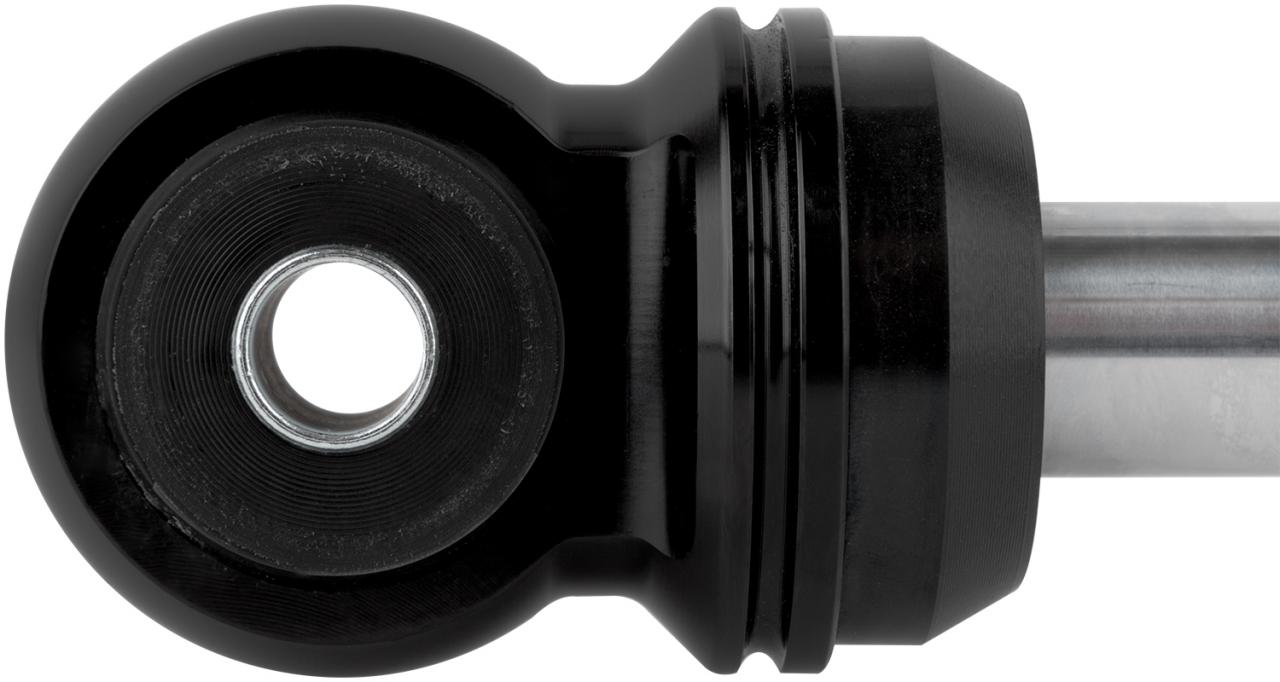

Top Mount Eyelet
Bottom Mount Eyelet
Fitment notes Includes Universal Bracket

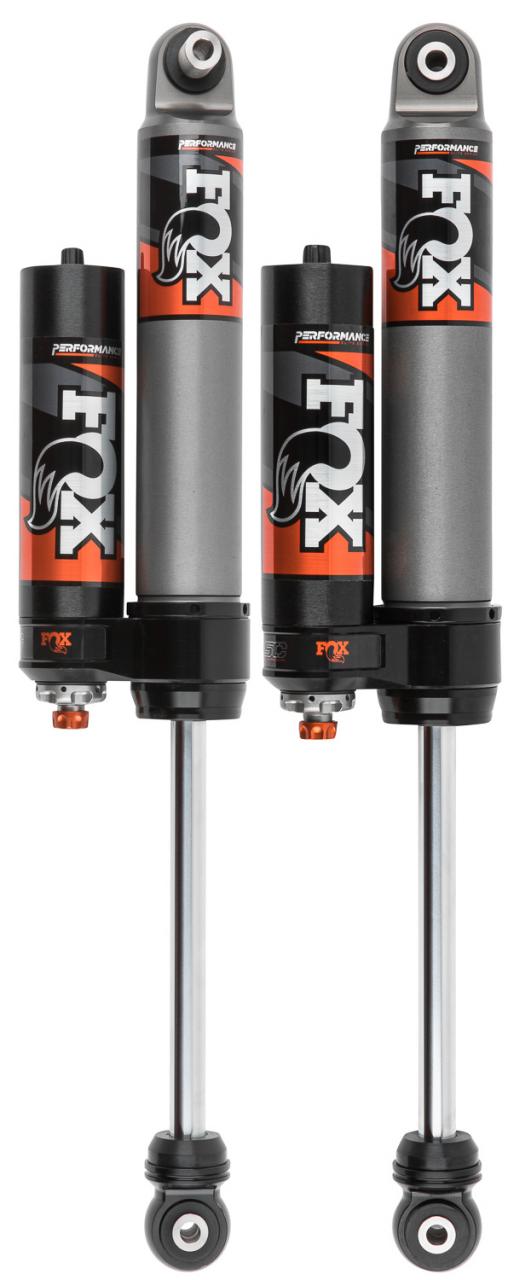

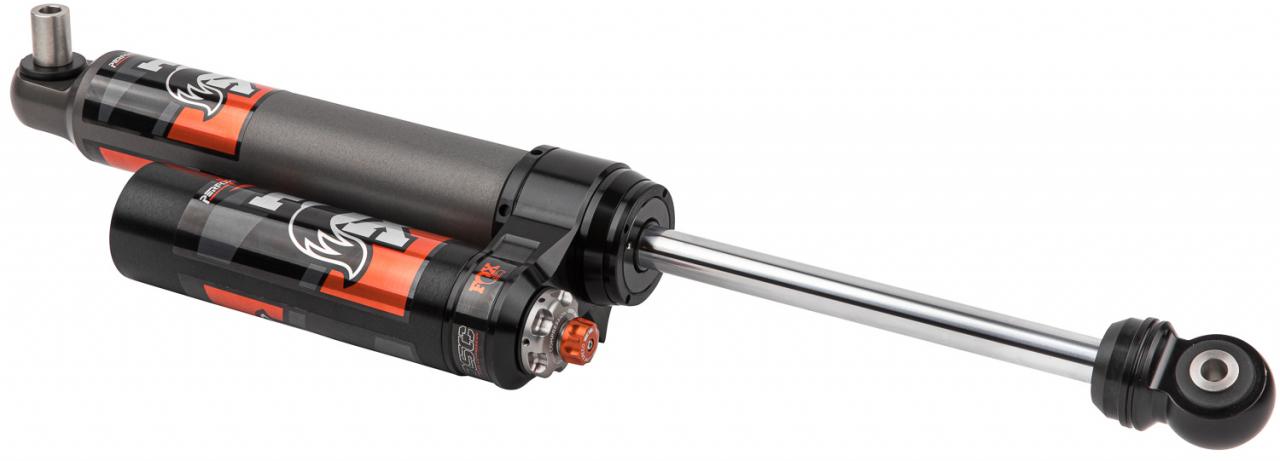

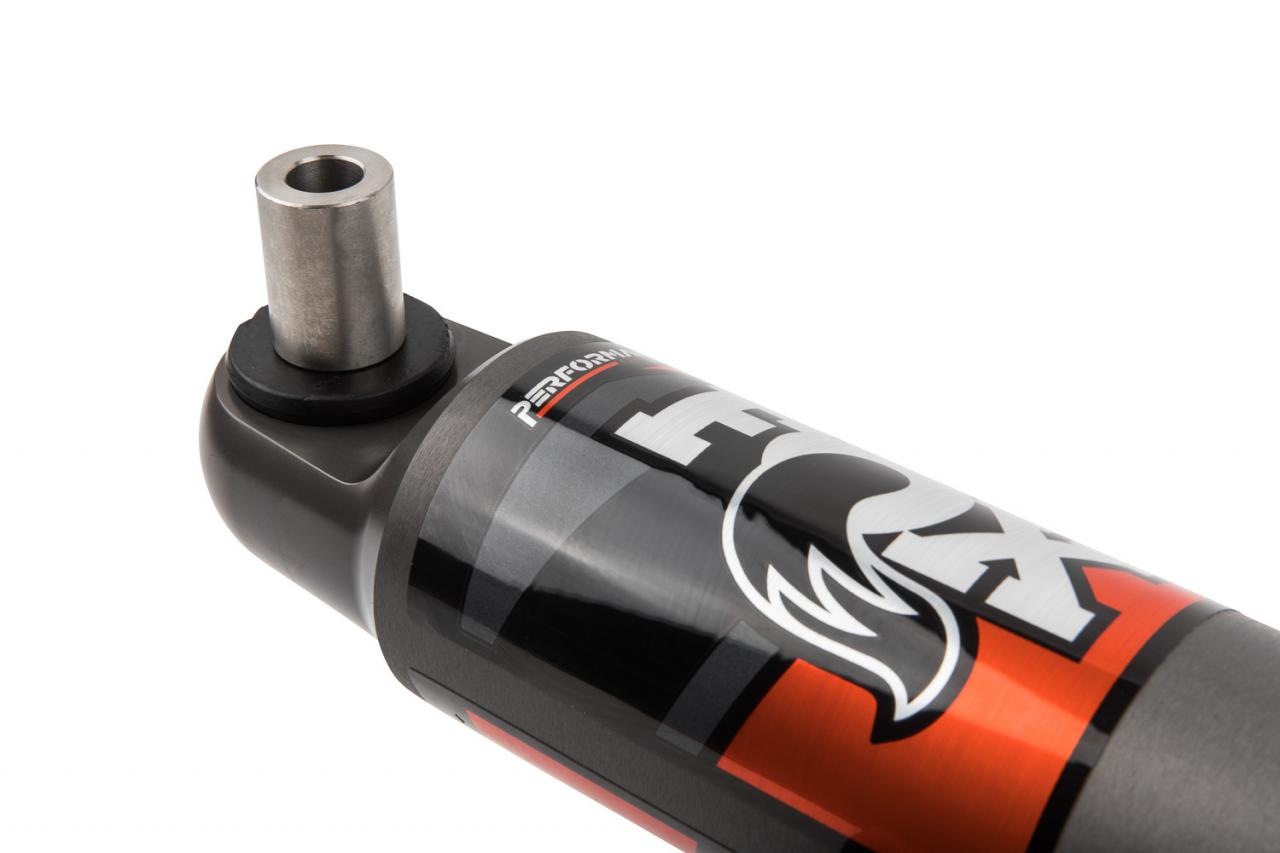

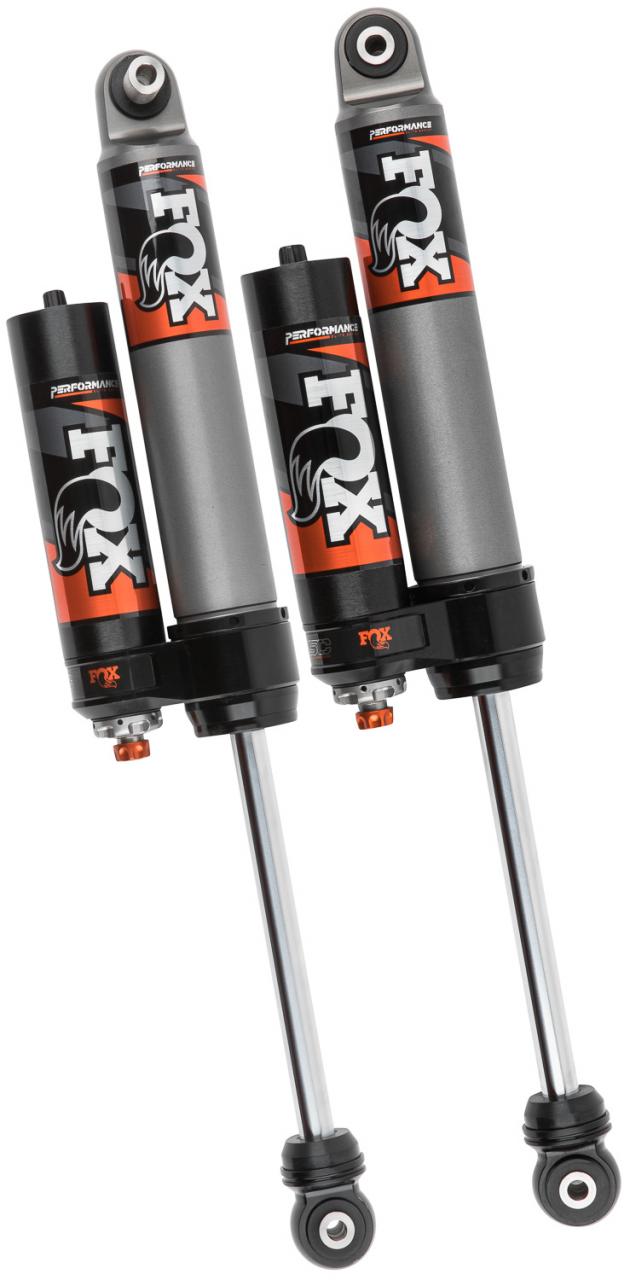

PERFORMANCE ELITE SERIES 2.5 RESERVOIR SHOCK (PAIR) - ADJUSTABLE - 883-26-054

Performance Elite Series 2.5 Reservoir smooth body shocks give you enhanced ride quality and the control you need when heading off the pavement. They take their design from our Off-Road race shocks, so they've been thoroughly perfected in brutal conditions that you will probably never see. Our athletes push the boundaries in competition to develop race-proven performance you can bolt onto your Truck or SUV.

The external reservoir allows for increased oil and nitrogen capacity while delivering a striking race look. Applications are available to fit most stock and lifted Trucks and SUVs. Our complete line of bolt-on, Performance Elite shocks provide improved damping in any terrain. Experience for yourself the incredible performance and precise control that Performance Elite Series 2.5 Reservoir shocks deliver.


Body 2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time
Body Plating Hard-anodized for a durable finish
Reservoir External reservoir design separates shock oil from the high-pressure nitrogen
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft 7/8" hard chrome plated heat-treated alloy steel
Piston Race-developed high-flow piston design
Valving Application specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal
Bearing PTFE-lined, heat-treated, alloy steel spherical
Adjuster Type DSC - Dual Speed Compression
Extended 28.600
Compressed 17.430
Travel 11.170

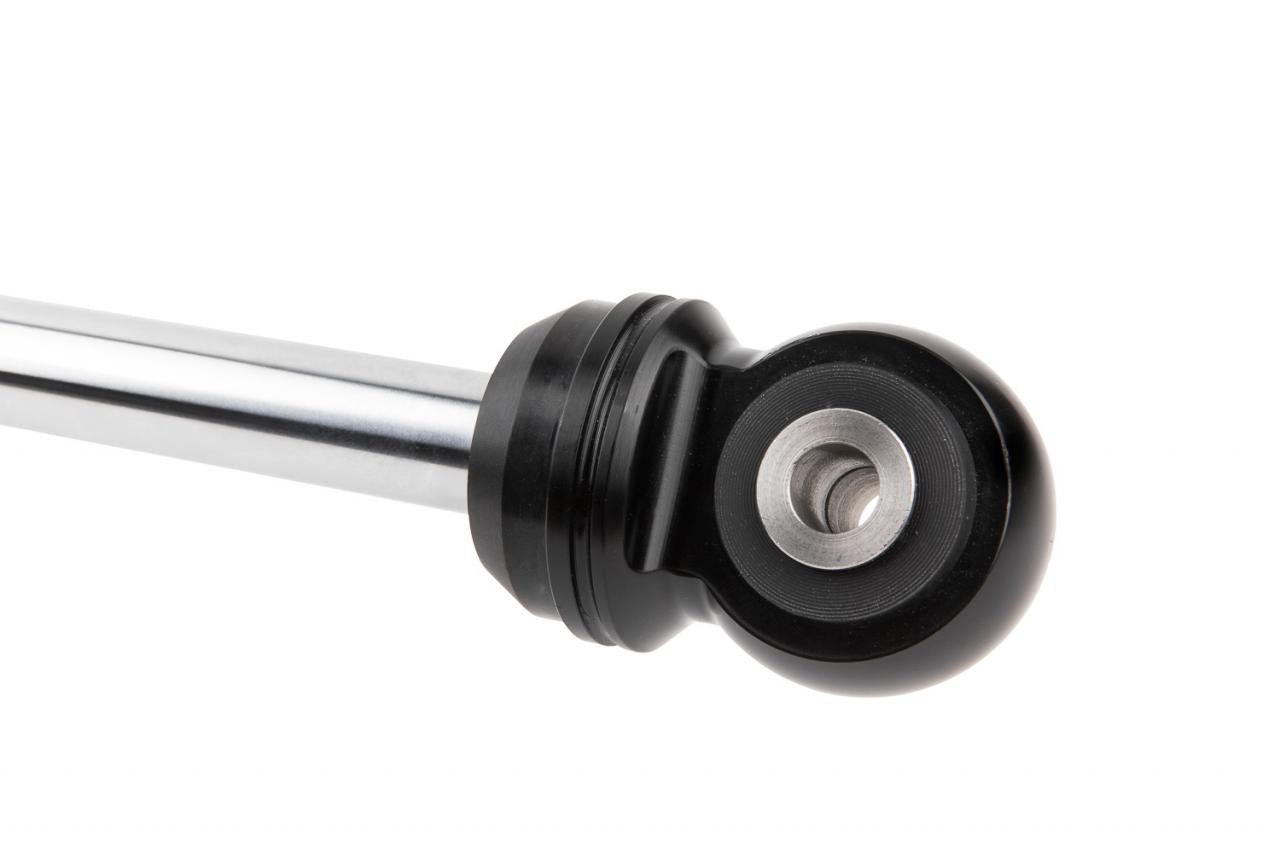

Top Mount Eyelet
Bottom Mount Eyelet
