DIESEL ONLY

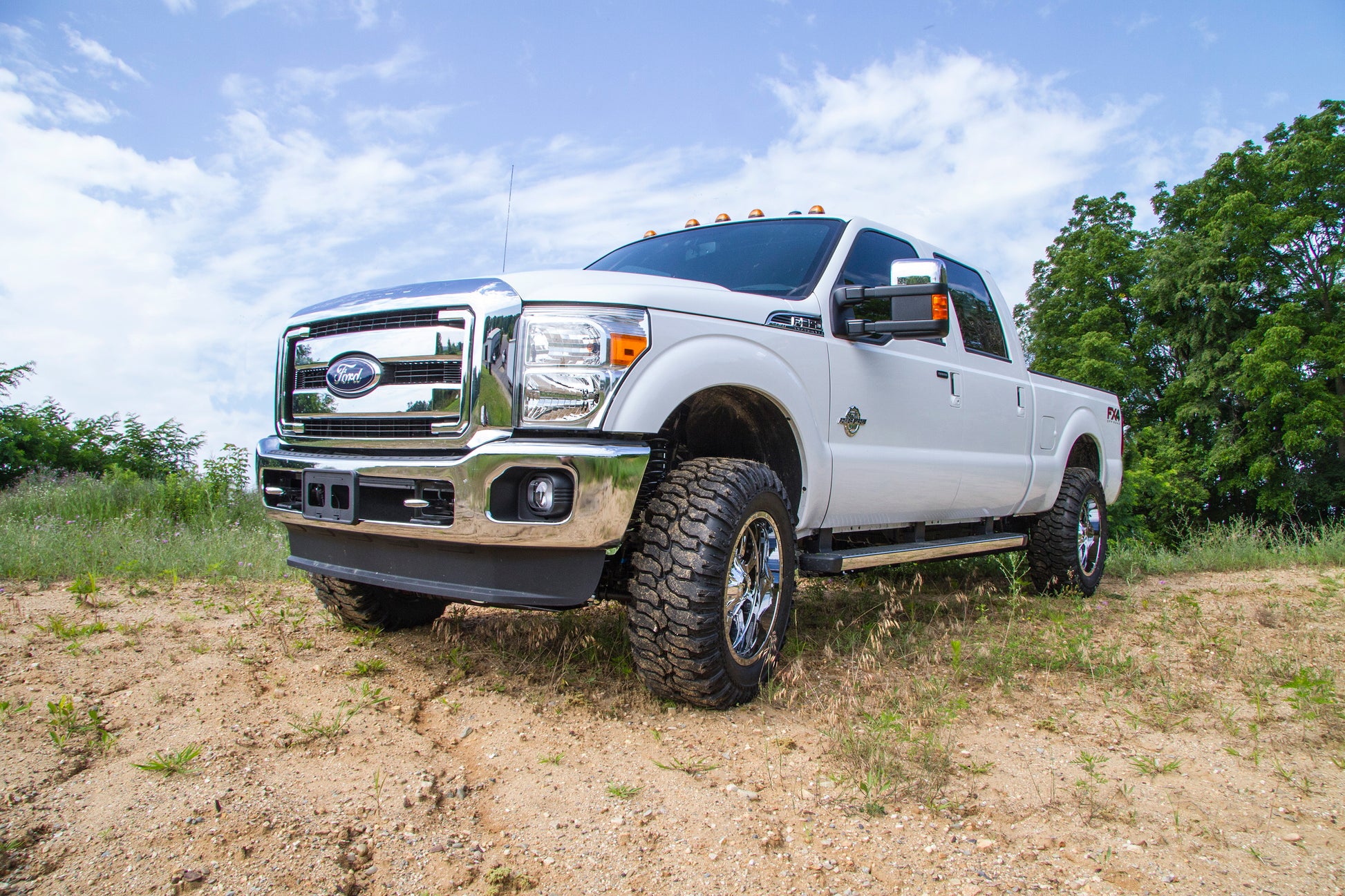

This new system is perfect for the F250 owner looking for a 2.5" lifted and leveled stance with the performance of dual rate coil springs. This kit is complete with new front dual rate coils, brake line relocation brackets, turnbuckle style adjustable front track bar, ball joint cams, coil shims, rear replacement block kit and your choice of shocks.

The key to this kit is the coil seat correction shims and upper ball joint cams. The coil seat shims reposition the lower seat to be square with the frame mount to minimize coil bow which is typical of leveled F250/F350 trucks when the radius arms aren't relocated or replaced. The ball joint cams return the caster to factory settings to provide stock-like handling and drivability.

This is a great kit for those who want more than just a spacer but aren't quite ready to jump into the full replacement radius arm system.

The rear block box kit replaces the factory 2" block on F250 models for a level stance. On F350 models with factory 3-7/8" blocks, the rear box kit can be omitted and achieve the same stance.

Tire & Wheel Combinations
35" x 12.50" w/17 x 9 and 5" back spacing
35" x 12.50" w/18 x 9 and 5" back spacing
35" x 12.50" w/20 x 9 and 5" back spacing
*Trimming may be required*

Est. Installation: 4 hours
Difficulty Level (easy 1 - 5 complicated): 2

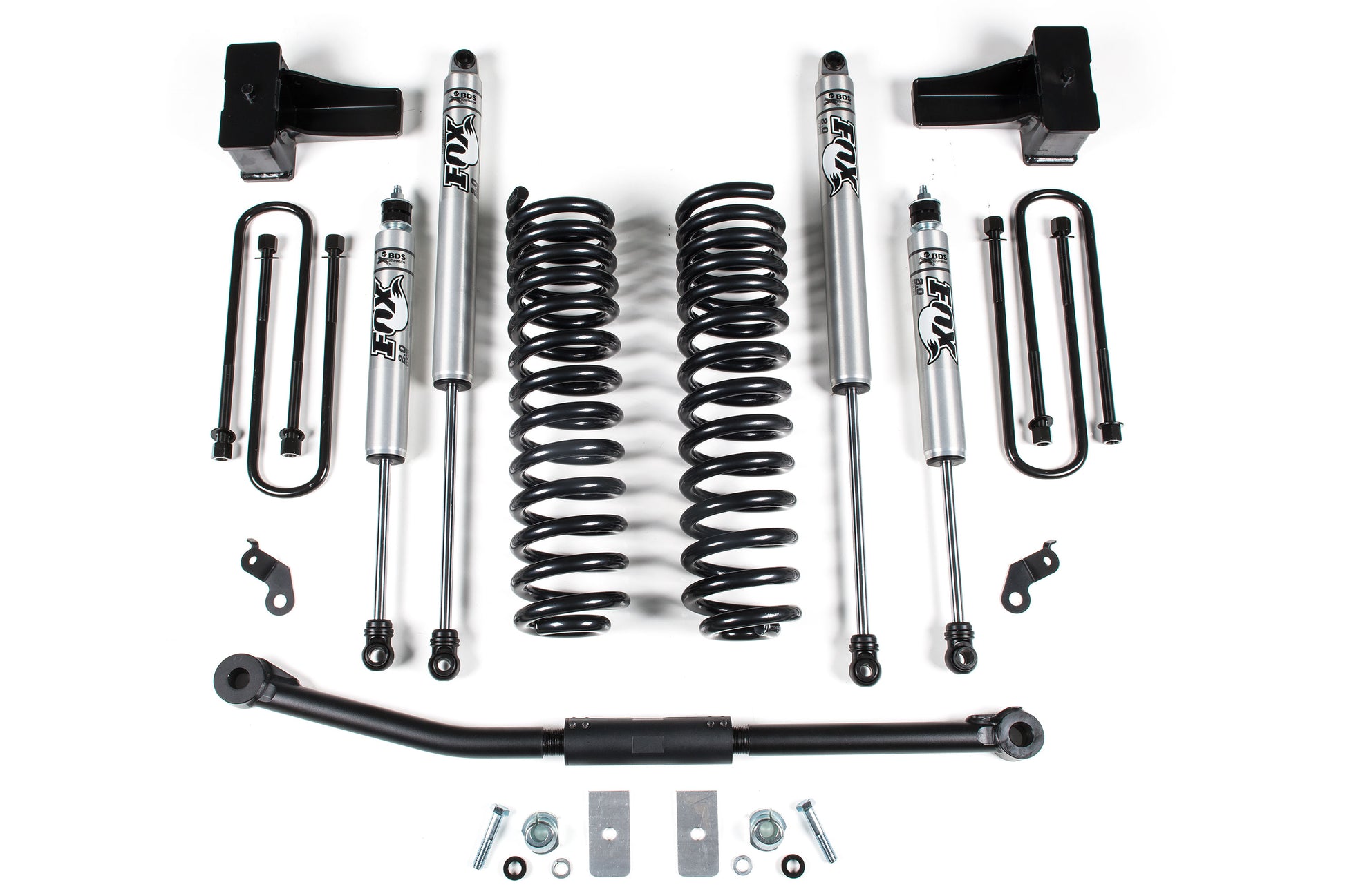

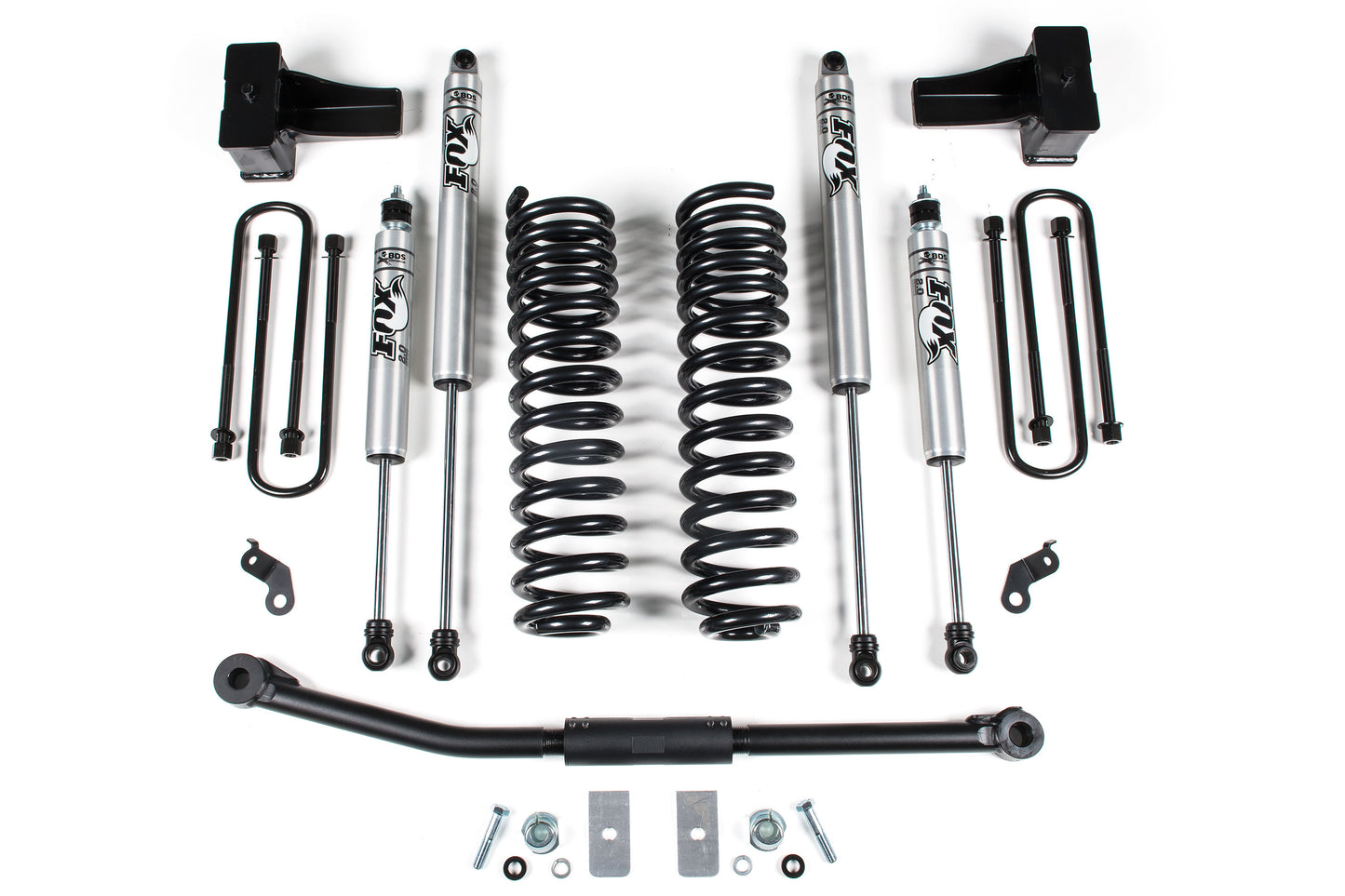

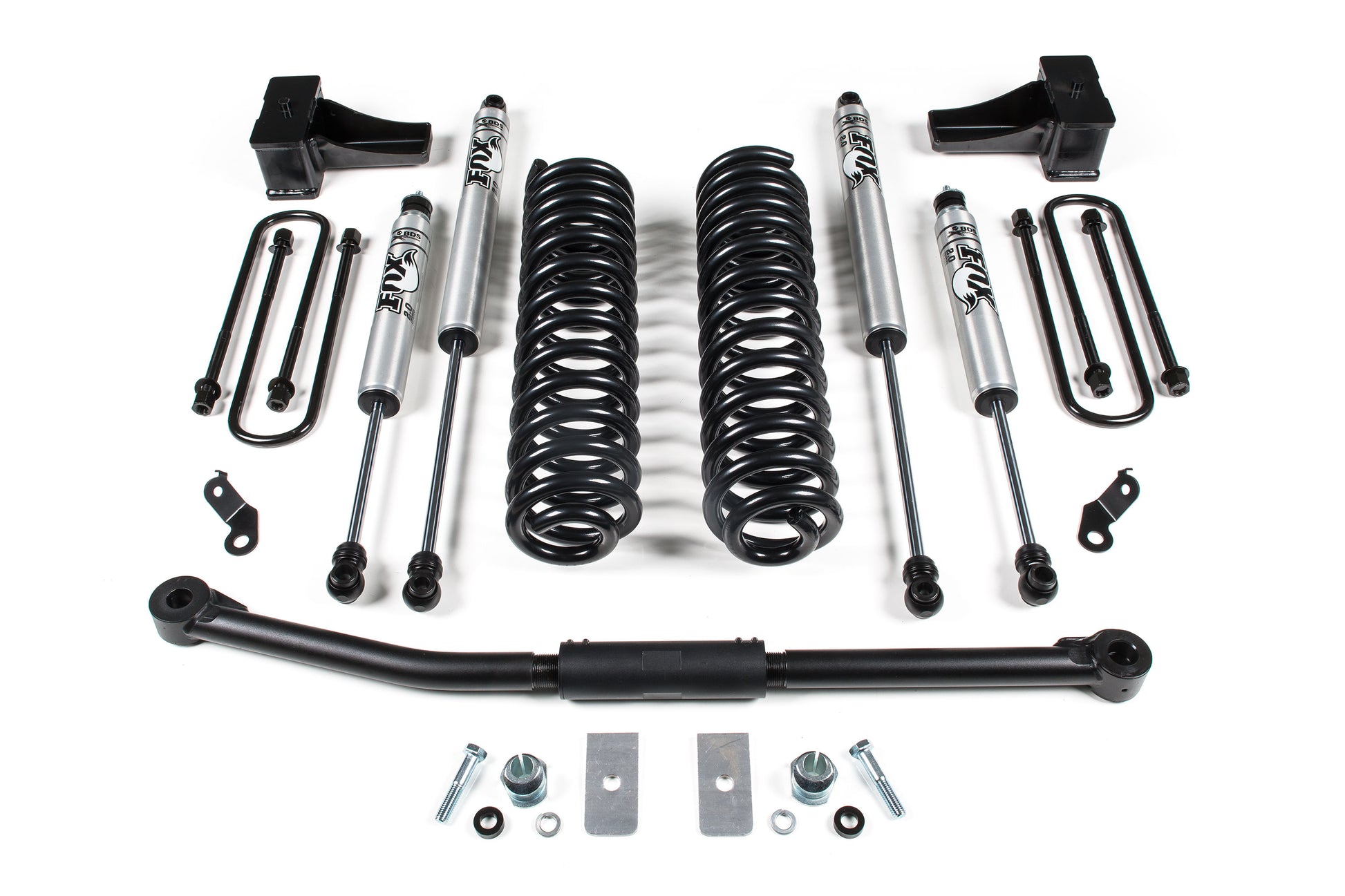

Kit Components
Qty Part# Description
1x 013254 2005-15 F250 2.5in Front Box Kit
1x 013408 2011-15 F250 4in Rear Block Kit
1x 033251 2005-2022 Ford Super Duty 2.5" Coil Spri
2x 98224710 Fox 2.0 Shock 23.27 x 14.65 x 2- S50/EB1
2x 98224760 Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
1x 55380 2017-2020 Ford Super Duty - Dual Steerin
2x 98224010 Fox 2.0 Steer Stab 23.7 x 15.1 EB1/EB1

Important Kit Notes
Front portion of the kit can be installed on an F-350 model, which uses a taller 3-7/8" rear block from the factory, in order to level the front with the rear
For a more tail-high stance, substitute #013519 5" rear block kit
Models equipped with top mounted overload springs must also purchase (4x) UBT4028.
