BDS 3" (2.0 IFP) Coilover Lift Kit (Tundra 4x4 2007-2021)
BDS 3" (2.0 IFP) Coilover Lift Kit (Tundra 4x4 2007-2021)
Regular price
$4,999.00 AUD
Regular price
Sale price
$4,999.00 AUD
Unit price
per
Tax included.
Couldn't load pickup availability
BDS offers next level performance while maintaining on-road handling and factory suspension geometry with 3" coilover systems for the Toyota Tundra.
These kits use FOX 2.0 performance series IFP coilovers for bolt-in upgrade to the factory strut assemblies for improve damper performance across all terrains. Also supplied as part of these complete 3" lift system are a pair of BDS performance series upper control arms (UCA). These UCAs improve suspension travel and while providing superior strength and styling to the factory arms. These arms are built from 1.5" OD heavy wall tubing, fully welded with integrated support gussets. They include brake line mounting tabs and use an indexed ball joint cup to correct ball joint positioning back to the neutral position at ride height. The BDS arms come fully assembled with OE-style rubber bushings for the frame mounts and a high-quality MOOG ball joint for smooth, quiet operation and better durability than arms that use heims and uniballs. 1" front differential spacers and longer hardware is supplied to reposition the front differential to keep CV axle angles at a minimum. In the rear, BDS supplies a set of heavy duty shackles. These shackles provide 1" of lift to level the stance and include grade 8 installation hardware. Rounding out the rear of this 3" coilover system are a pair of specially tuned FOX 2.0 performance series IFP shocks designed to pair with the front coilovers for impressive performance on and offroad. and allow clearance for 33" tires under Tundra.
As with all BDS lift kits these new 3" systems include Factory Protection Plus for the ultimate extended drivetrain warranty. Factory Protection Plus includes BDS's No Fine Print Warranty and a 5year-60,000mile drivetrain warranty to match the dealer. Get more out of your Tundra with these 3" coilover systems from BDS Suspension.
Tire & Wheel Combinations
33 x 12.50 w/17x9 and 5" back spacing
33 x 12.50 w/Stock and Stock back spacing
*Trimming may be required*
Est. Installation: 4-6 hours
Difficulty Level (easy 1 - 5 complicated): 3

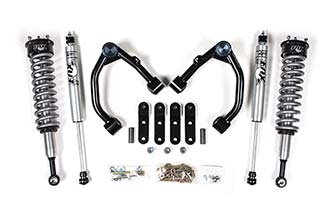

Kit Components
Qty Part# Description
1 028305 2007-2021 Toyota Tundra 3" Box Kit
2 98224700 Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
2 98602026 Kit: BDS, 07-ON Toyota Tundra Front Coil
Important Kit Notes
These kits use FOX 2.0 performance series IFP coilovers for bolt-in upgrade to the factory strut assemblies for improve damper performance across all terrains. Also supplied as part of these complete 3" lift system are a pair of BDS performance series upper control arms (UCA). These UCAs improve suspension travel and while providing superior strength and styling to the factory arms. These arms are built from 1.5" OD heavy wall tubing, fully welded with integrated support gussets. They include brake line mounting tabs and use an indexed ball joint cup to correct ball joint positioning back to the neutral position at ride height. The BDS arms come fully assembled with OE-style rubber bushings for the frame mounts and a high-quality MOOG ball joint for smooth, quiet operation and better durability than arms that use heims and uniballs. 1" front differential spacers and longer hardware is supplied to reposition the front differential to keep CV axle angles at a minimum. In the rear, BDS supplies a set of heavy duty shackles. These shackles provide 1" of lift to level the stance and include grade 8 installation hardware. Rounding out the rear of this 3" coilover system are a pair of specially tuned FOX 2.0 performance series IFP shocks designed to pair with the front coilovers for impressive performance on and offroad. and allow clearance for 33" tires under Tundra.
As with all BDS lift kits these new 3" systems include Factory Protection Plus for the ultimate extended drivetrain warranty. Factory Protection Plus includes BDS's No Fine Print Warranty and a 5year-60,000mile drivetrain warranty to match the dealer. Get more out of your Tundra with these 3" coilover systems from BDS Suspension.
Tire & Wheel Combinations
33 x 12.50 w/17x9 and 5" back spacing
33 x 12.50 w/Stock and Stock back spacing
*Trimming may be required*
Est. Installation: 4-6 hours
Difficulty Level (easy 1 - 5 complicated): 3
Kit Components
Qty Part# Description
1 028305 2007-2021 Toyota Tundra 3" Box Kit
2 98224700 Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
2 98602026 Kit: BDS, 07-ON Toyota Tundra Front Coil
Important Kit Notes
- Will NOT work on TRD Pro models.
- Can be installed on 2WD models, differential drop brackets are not used during installation.
