Built to take full advantage of the factory suspension design, these 4" radius arm systems correct suspension, steering and driveline geometry with room for 37" tires.

 At the heart of this system is a pair of heavy duty radius arms built to withstand whatever abuse you can throw at them. Built from 1-3/4" OD -10GA DOM tubing with support gussets, these replacement arms are far superior to the factory stamped steel units. They use a high clearance design for extra ground clearance and are formed inward to allow for additional clearance of oversized tires. They incorporate factory style 3-1/4" rubber bushings to minimize road vibrations and allow for a long, maintenance-free bushing life. The arms bolt into the factory mounting points and reposition the front axle to correct caster angle. The additional 4" of lift comes from a pair of full length diesel of gas specific ProRide coil springs. These paired with your choice of BDS NX2 series gas shocks or the precision tuned FOX 2.0 performance gas shocks offer a smooth ride and improved control over rough terrain. To improve steering angles a forged drop pitman arm is supplied with an integrated drag link flip. Used in combination with the 1/4" thick heavy duty track bar drop bracket will position the front axle and keep the track bar angle in phase with the steering for improved handling. Also included for the front suspension are a pair of sway bar relocation brackets, bump stop extensions, brake line relocation brackets and a NX2 series steering stabilizer with mounting bracket. Out back a you have the option of a 4.5" fabricated block with integrated bump stop wing is used in place of the factory block to level the stance or upgrade to GlideRide rear leaf springs. These springs integrate a overload leaf for increased load capacity while offering smooth on-road ride quality. Longer black e-coated u-bolts and your choice of NX2 or FOX 2.0 shocks round out this 4" radius arm lift system.

• Tire & Wheel Combinations
• 37x12.50 w/17x9 and 4.5"-5" back spacing
• 37x12.50 w/18x9 and 4.5"-5" back spacing
• 37x12.50 w/20x9 and 4.5"-5" back spacing

*Trimming may be required*

• Est. Installation: 6-8 hours
• Difficulty Level (easy 1 - 5 complicated): 4

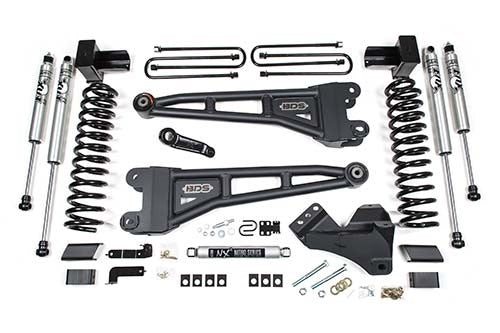

Kit Components
Qty Part# Description
1x 013414 Front Box Kit
1x 013459 2020-2022 F250/F350 4.5" Rear Block Kit
1x 033411 Coil Spring Box Kit (Diesel)
1x 123251 Radius Arm Box Kit
1x 85431 NX2 Single Stabilizer (BDS Only)
2x 98224700 Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
2x 98224718 Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
4x 4027 U-Bolt $55.36
1x 013261 2017-2022 F250/350 2.5in Front Box Kit
1x 55380 2017-2020 Ford Super Duty - Dual Steering Stabilizer Mount Kit
2x 98224010 Fox 2.0 Steer Stab 23.7 x 15.1 EB1/EB1

Kit Notes:
1. Ford recommends replacement of the pitman arm nut after each time it has been removed.
2. If installed on a truck with a top mounted overload spring, with an overload spacer block taller than 1-1/8" UBT4027 (Qty: 4) are required.
3. Front exhaust modification may be required to clear front drive shaft (Gas Only).
4. Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
5. If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
6. Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
7. Larger tires on stock wheel are not recommended due to brake line clearance required. Use recommended specs listed in wheel and tire fitment section.
8. Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
9. Installation requires a torque wrench capable of 405 ft-lbs.
10. Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, BDS recommends to have this performed prior to installing the lift.

*This kit is sold for offroad use only. Please check you local and state laws before use.
