BDS Suspension

BDS 6" Lift Kit Small Knuckle NO Air Ride (Ram DT New Body 2019-2022)

BDS 6" Lift Kit Small Knuckle NO Air Ride (Ram DT New Body 2019-2022)

Regular price $5,399.00 AUD
Regular price Sale price $5,399.00 AUD
Sale Sold out
Tax included.

Dodge Ram 1500 4WD Trucks without Air Ride


Improve the look and performance of your RAM 1500 4WD truck with the BDS Suspension 6" IFS lift system. Based around the tried and true high clearance technology that has made BDS the go to for RAM suspension lifts, these systems have been designed from the ground up to get more out of your late model RAMs. This new 6" lift system maintains on road comfor while improving offroad capability with clearance for 35-37" tires.

At the heart of this 6" system BDS utilizes a pair of 1/4" thick laser cut high clearance crossmembers to maximize clearance and provide a solid mounting point for the OE lower control arms. These paired with the heavy duty front skid plate system create a rigid subframe while adding protection for vital steering and driveline components. In place of the factory steering knuckles a pair of specially designed ductile iron replacement steering knuckles are supplied to maintain proper steering geometry for ESC system compatibility. These connect to the factory steering with a pair of heavy duty replacement tie rod ends included in the kit. The front differential is repositioned with BDS's multipoint relocation bracket system to secure the front differential and keep CV axle angles at a minimum. A billet aluminum front driveshaft spacer is also supplied along with longer hardware to allow the reinstallation of the factory driveshaft. Additional ride height on this particular kit comes from a set of top mounted steel fabricated strut spacers along with a preload spacers to maintain ride quality and handling characteristics. Rounding out the front of this kit are a pair of stainless steel braided extended brake line and sway bar relocation brackets.

In the rear of this 6" lift system the factory coil springs are replaced with 5" ProRide dual rate coil springs to lift and level the stance. With the additional ride height the rear suspension geometry is corrected with control arm relocation brackets, a bolt-on rear track bar relocation bracket to recenter the axle, extended length sway bar links to correct operating angle, and bump stop extensions to properly limit up travel. The rear of these kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance. All kits come finished in a durable textured black powdercoat and sent with all hardware packs to complete the install along with step-by-step installation instructions.

Tire & Wheel Combinations
37x12.50 w/18x9 and 4.5-5" back spacing
37x12.50 w/20x9 and 4.5-5" back spacing
*Trimming may be required*

Est. Installation: 10 hours
Difficulty Level (easy 1 - 5 complicated): 4

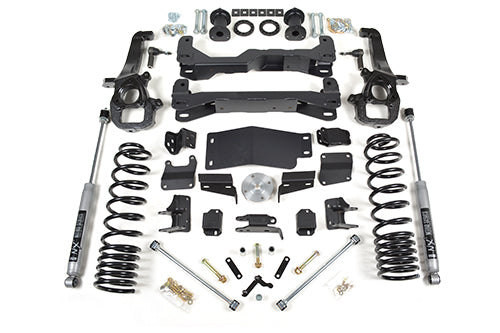

Kit Components
Qty Part# Description
1x 022508 2019-2022 Ram 1500 Rear Box Kit
1x 022632 2019-2022 Ram 1500 Knuckle Box Kit - DRV
1x 022633 2019-2022 Ram 1500 Knuckle Box Kit - PAS
1x 022636 2019 Ram 1500 6in Strut Spacer Box Kit
1x 022642 2019-2022 Ram Front Box Kit 1 of 2
1x 022643 2019-2022 Ram Front Box Kit 2 of 2
1x 032508 2019-2022 Ram 1500 5in Rear Coil Box Kit
2x 98224751 Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1

Important Kit Notes
1. Fits 4WD models only
2. RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.
3. Will NOT fit adjustable "air ride" suspension equipped models.
4. (1661H only) If installing the 6" kit on a Rebel or truck equipped with an "off road group package" the truck will sit roughly 1/2" front high with the preload spacer installed. If the preload spacer isn't installed the truck will sit about 3/8" nose low.
5. Stock 18" wheels cannot be reinstalled due to steering interference. Stock 20s can be reinstalled with factory tire size.
6. Will NOT work on diesel models.
7. Will NOT fit 2019-2022 RAM 1500 Classic models, Refer to the 2018 kit listings.
8. Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check diff cover for cooling lines.
