BDS 6" Radius Arm Lift Kit | Diesel ONLY (F-250, F-350 2017-2019)
BDS 6" Radius Arm Lift Kit | Diesel ONLY (F-250, F-350 2017-2019)
Couldn't load pickup availability
BDS raises the bar with 6" radius arm systems for the Ford Super Duty.
These 6" systems upgrade the factory stamped steel radius arms to high strength tubular radius arms allowing for caster control and superior strength. Full length 6" ProRide diesel or gas specific coil springs are used for the additional ride height paired with your choice of BDS NX2 series gas shocks or FOX 2.0 IFP performance gas shocks for a smooth ride on any terrain. A forged drop pitman arm and heavy duty track bar relocation bracket are supplied to correct steering angles and recenter the front axle. Also supplied for the front are bump stop extensions to limit suspension compression, sway bar drop brackets to correct the sway bar positioning, and brake line relocation brackets. At 6" of lift driveline adjustments are necessary so a precision built transfer case indexing ring is supplied to improve front driveline operating angle.
Additionally a high clearance transmission crossmember is supplied. In the rear of these 6" lift systems are replacement rear lift blocks to level out the stance. Additionally high strength black e-coated u-bolts are supplied along with a pair of matching NX2 or FOX 2.0 gas shocks to compliment the front setup for all around impressive performance.
Tire & Wheel Combinations
38x13.50 w/17x9/18x9/20x9 and 4.5-5" back spacing
38x13.50 w/17x10/18x10 and 5" back spacing
38x13.50 w/20x10 and 5" back spacing
*Trimming may be required*
Est. Installation: 4-6 hours
Difficulty Level (easy 1 - 5 complicated): 3

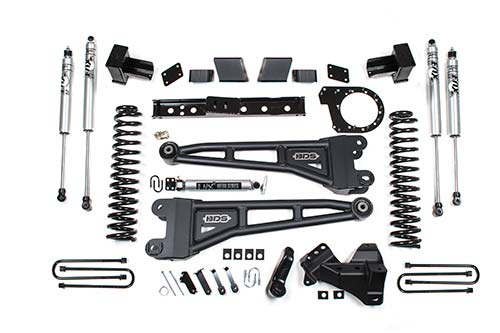

Kit Components
Qty Part# Description
1x 013219 2017-2019 Ford Super Duty - Add-A-Leaf K
1x 013603 2020-2022 F250/F350 6in RA Front Box Sus
1x 013607 17-19 Super Duty Rear 6in Block Kit
1x 033611 05-up Superduty 6 In Diesel Coils
1x 123251 Radius Arm Box Kit
1x 123605 2017-2022 SD T-Case Indexing Kit- DSL
2x 98224750 Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
2x 98224718 Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
1x 55380 2017-2020 Ford Super Duty - Dual Steerin
2x 98224010 Fox 2.0 Steer Stab 23.7 x 15.1 EB1/EB1
1x 123203 Adjustable Front Track Bar
1x 123402 Driveshaft Alignment Kit
Important Kit Notes
1. If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (pn# 123402)
2. 38 x 13.50 tires may require minor trimming.
3. Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
4. Transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
5. If your truck is equipped with a factory rear sway bar add rear sway bar links (pn# 123808)
6. Indexing ring has not been designed to work on manual shift transfer case models. Modification to the shift cable mount will be required.
