Warn 103255 VR EVO 12-S Winch

Warn 103255 VR EVO 12-S Winch

Regular price $1,439.10 AUD
Regular price $1,599.00 AUD Sale price $1,439.10 AUD
Sale Sold out
Tax included.

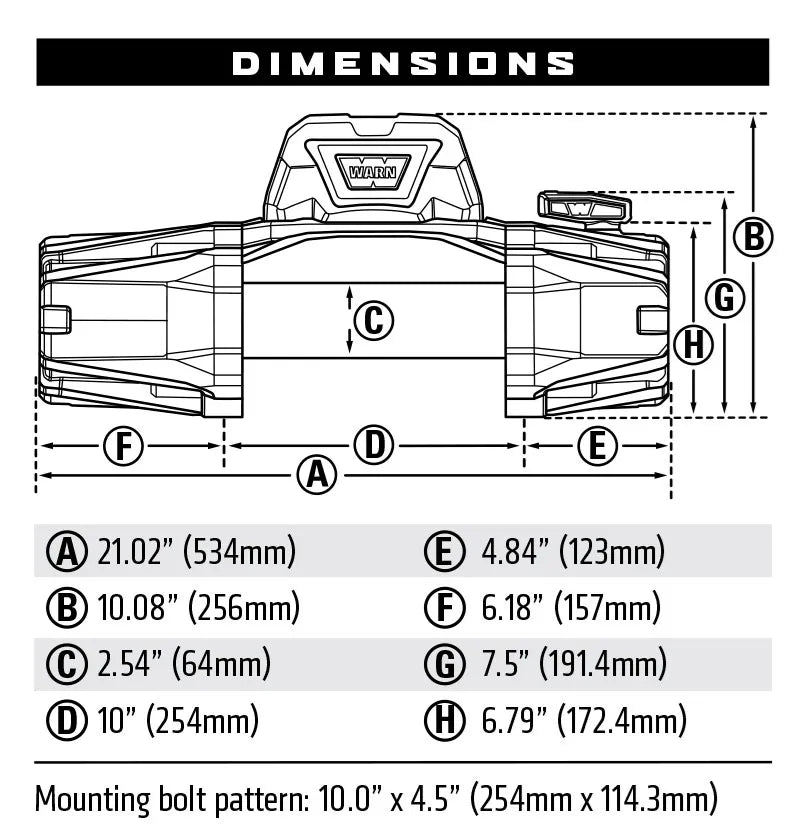

NOTE: Please check dimensions as this winch is not suitable for all bull bar types.

Ideal for 3/4 and 1-ton pickups and all types of large frame rigs that require longer and heavier pulls. The VR EVO 12-S features IP68-rated waterproof construction, an ultra-reliable Albright® contactor inside a relocatable control pack, and a state-of-the-art, two-in-one remote for added ease of use and versatility. With it's fast line-speed and lower amp draw, the VR EVO winches are the hardest-working standard-duty winches we've ever made, with tactical styling that looks great up front and at a price that won’t pull you out of your budget.

  • A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw
  • IP68-rated waterproof winch construction keeps the elements out
  • High-performance Albright contactor delivers maximum reliability
  • Control packs can be relocated for low-profile installations
  • Durable, one-piece cast-aluminum tie-plate for added strength and durability
  • Two-in-one remote with wired AND wireless options for ease of use and versatility
  • Limited lifetime warranty for mechanical parts and 7 years on the electrical
TYPE Electric
RECOMMENDED USE Vehicle Recovery
MOUNTING LOCATION Vehicle Mounted
VOLTAGE 12 Volt DC
ELECTRICAL CONTROL TYPE Albright Contactor
MOTOR TYPE Series Wound
DRIVE GEAR TYPE 3-Stage Planetary
GEAR REDUCTION RATIO 234:1
FREE SPOOLING Yes
BRAKE TYPE Spring
LINE DIAMETER (IN) 3/8 Inch
LINE MATERIAL Synthetic
LENGTH (FT) 90
FAIRLEAD TYPE Hawse
REMOTE TYPE 2 in 1 plug in remote with wireless capability
MOUNTING HOLE QUANTITY 4
MOUNTING PATTERN LENGTH (IN) 10 Inch
MOUNTING PATTERN WIDTH (IN) 4-1/2 Inch
INCLUDES MOUNTING HARDWARE Yes
COLOR Black
DRUM MATERIAL Steel
MAX LINE PULL/ LINE SPEED 12,000 pounds / 4.0 feet per minute
MAX AMP DRAW/ LINE PULL 396 Amps / 12,000 pounds
