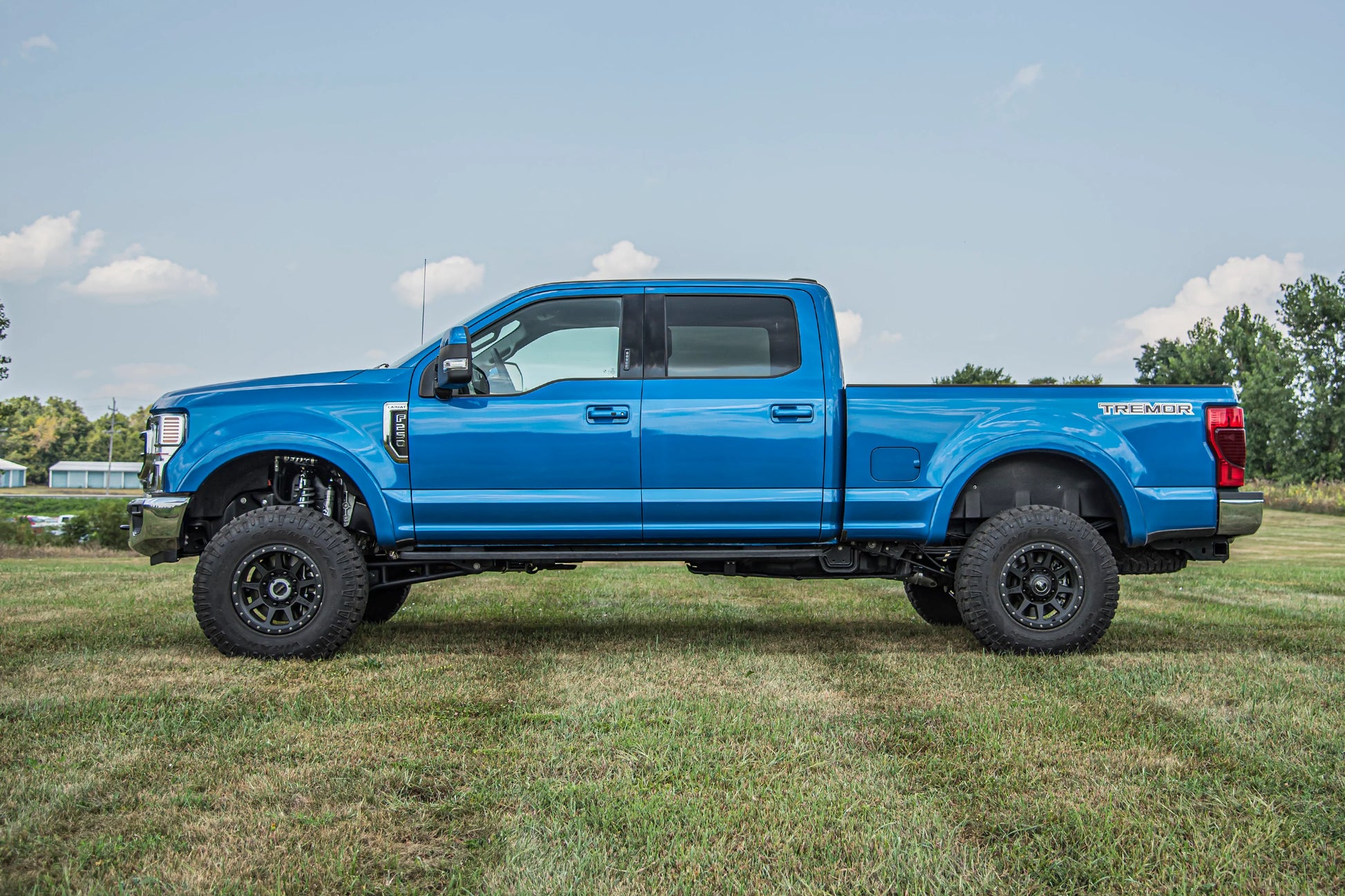

Build the ultimate Ford Super Duty diesel powered truck with this 3-inch radius arm lift kit with FOX 2.5 Performance Elite coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

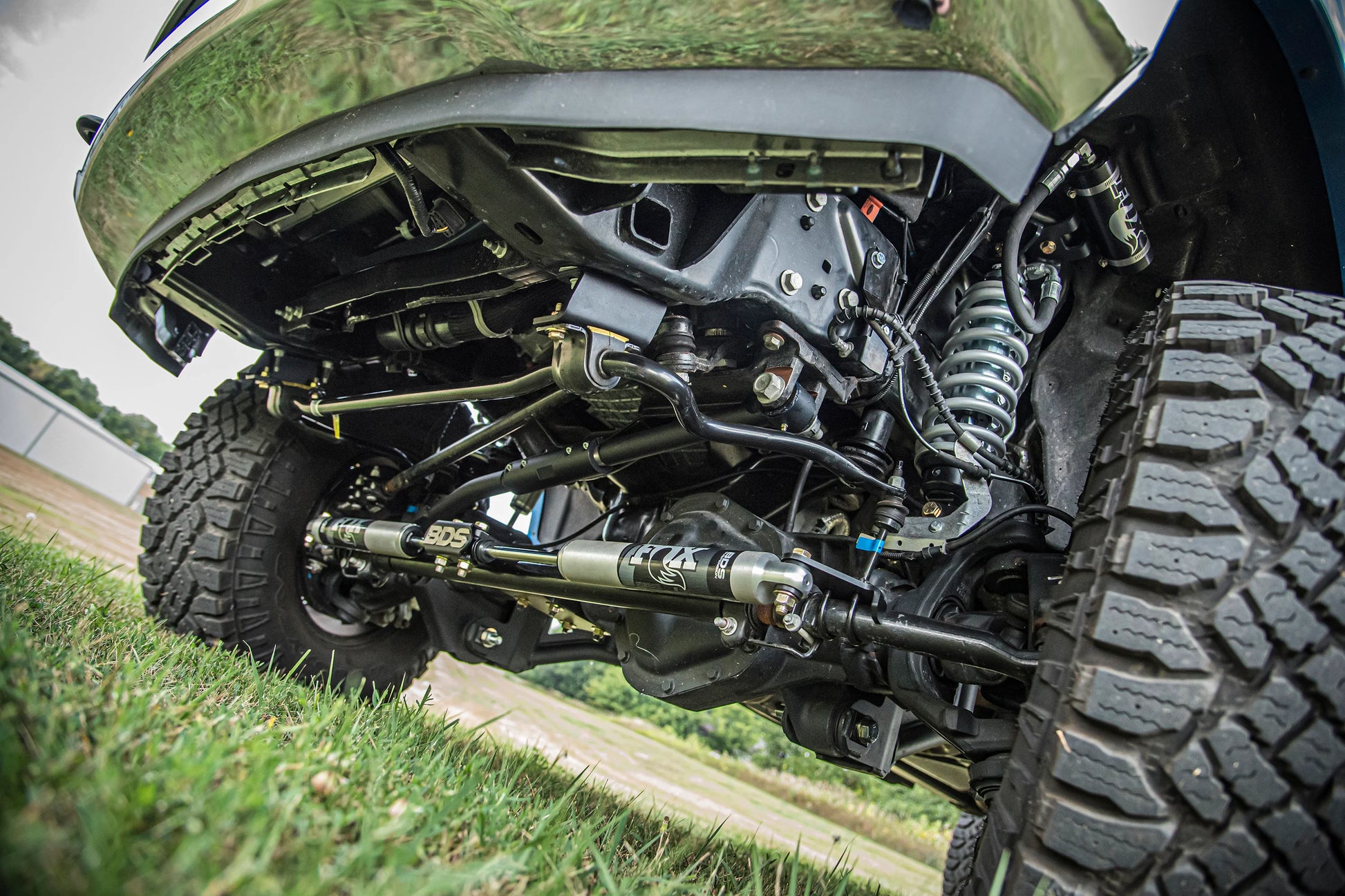

Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, sway bar relocation, brake line brackets.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of FOX Performance shocks.

FOX Performance Elite Coil-Over
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

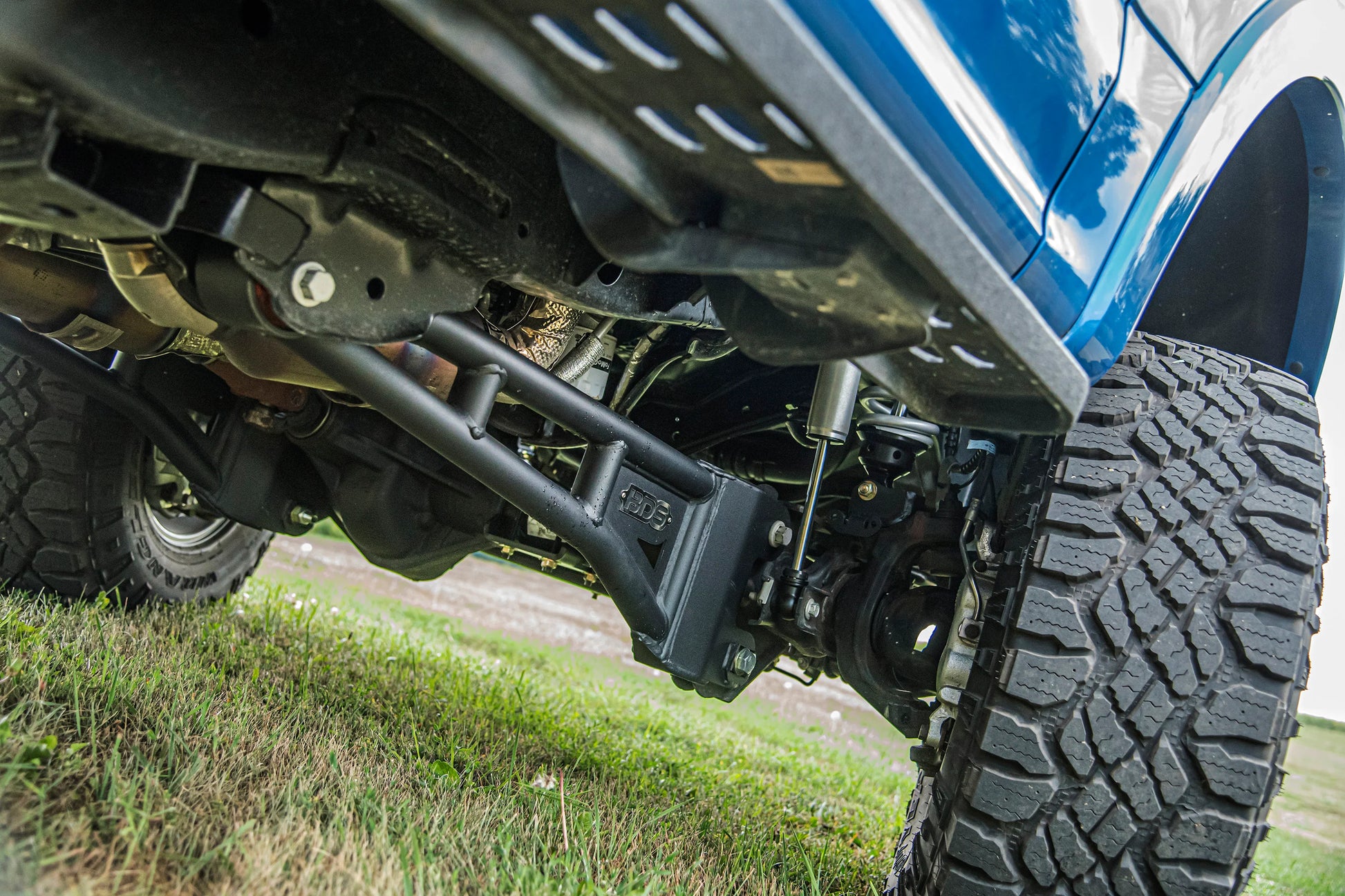

HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

HD Adjustable Track Bar
Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8" solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.

Features & Benefits

• FOX 2.5 Coil-Over mounts in factory coil bucket location
• Adds additional secondary FOX 2.0 shock for max performance
• Eibach coil springs ride smooth through the roughest terrain
• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Adjustable solid steel track bar designed to recenter the front axle
• Fabricated steel blocks provide level stance from front to rear
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
• Recommended Tires & Wheels

35 x 12.5 with 17 x 9 and 5 in. Backspace
35 x 12.5 with 18 x 9 and 5 in. Backspace
35 x 12.5 with 20 x 9 and 5 in. Backspace


IMPORTANT NOTES

• Designed for use on diesel models, but can be installed on gas model trucks (will achieve an additional 1/2" front ride height).
• Larger tires on stock wheels are not recommended due to the brake line clearance required. Use recommended specifications listed in the tire and wheel fitment section.
• Installation requires a torque wrench capable of 405 ft-lbs.
• Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final ride height will be the same as standard models.
• Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, BDS recommends having this performed prior to installing the lift.
• Trucks without top-mounted overload springs require (x4) UBT4031 available to purchase separately.
• Due to factory ride heights being lower on 2020 and newer model year trucks, the net lift you will gain with this kit will be 1" more than advertised. (EX. 4" kit will net 5" of lift)

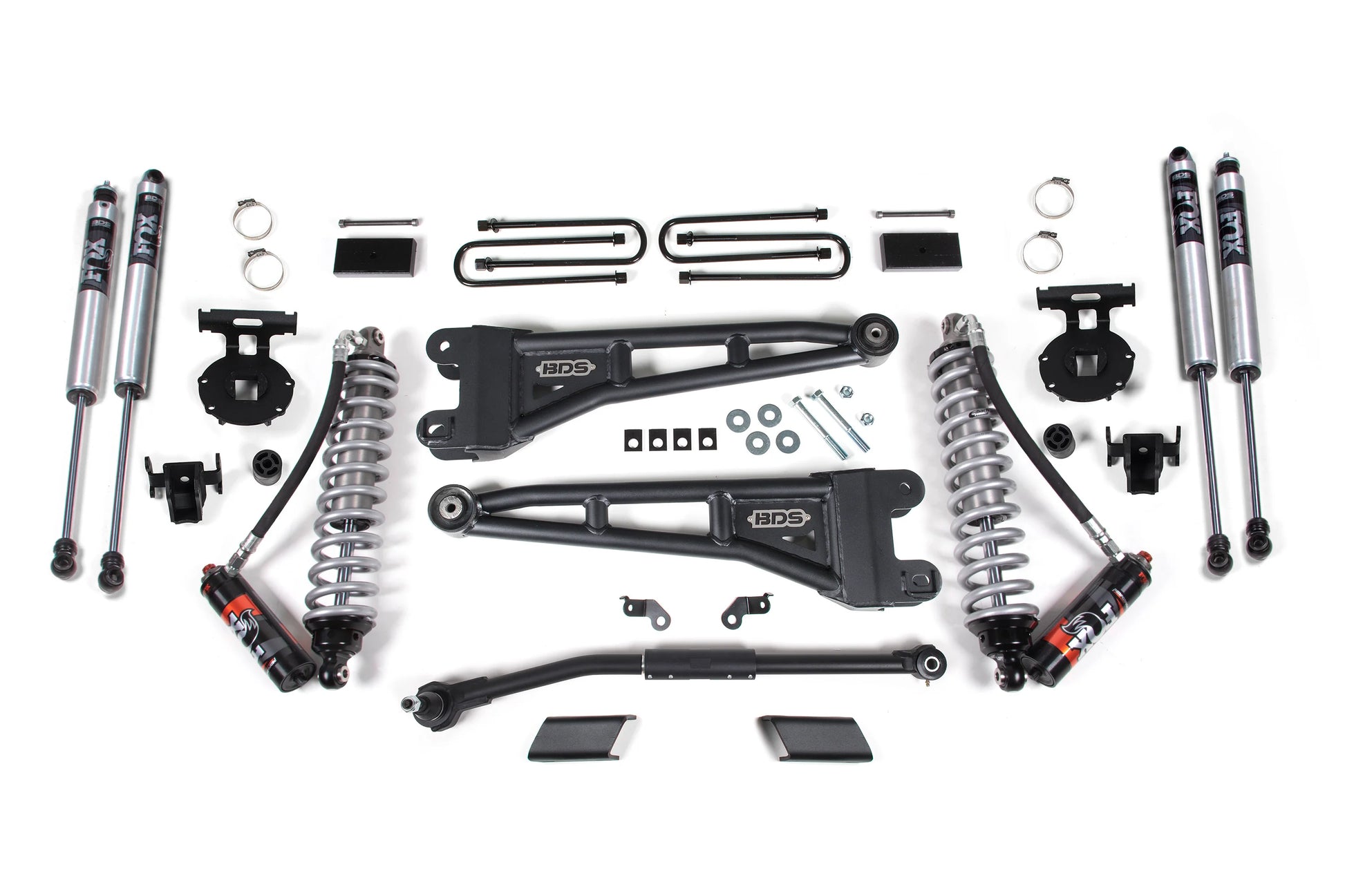

KIT COMPONENT LIST
1x BDS013108 2017-2022 F250/F350 1in Rear Block Kit
1x BDS013261 2020-2022 F250/350 2.5in Front Box Kit
1x BDS123251 2005-2022 Ford F250/F350 Radius Arm Kit, Pair
1x BDS123613 2017-2022 Super Duty Coil-over Mount Kit
1x FOX88406426 Kit: BDS 05-On Ford SD Front Coilover, 2.5 Truck PES, R/R 2.5" Lift, DSC
2x FOX98224710 Fox 2.0 Shock 23.27 x 14.65 x 2- S50/EB1
2x FOX98224717 Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
2x FOX98224010 Fox 2.0 Steer Stab 23.7 x 15.1 EB1/EB1
1x BDS55380 2017-2023 Ford Super Duty - Dual Steering Stabilizer Mount Kit
