BDS 4 Inch Lift Kit Ram 1500 DS 2013-18, DS Classic 2019-on) Non Air Ride Models

BDS 4 Inch Lift Kit Ram 1500 DS 2013-18, DS Classic 2019-on) Non Air Ride Models

$4,999.00 AUD
$4,999.00 AUD
Sale Sold out
Tax included.

BDS steps up the performance and capability of the 2013-2018 RAM 1500 trucks with a 4-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear this kit utilizes a 2" coil spacer, rear upper control arm relocation brackets to correct pinion angle, track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links. The rear of these kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Features & Benefits

  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
  • Factory Protection Plus drivetrain warranty included

Recommended Tires & Wheels

  • 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Rear Lift Option

These vehicles vary from 1" to 3" tail high from the factory. BDS offers 3" rear coil springs (standard) or 2" rear coil spring spacers. Measure your vehicle and order the appropriate rear lift height to get your desired stance.

Coil Spacers

  • Maintains factory ride quality
  • Made with heavy-duty steel construction
  • Powder coat finish for long-lasting durability

Shock Option

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminium body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminium mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes:

  1. The Rack and Pinion steering system is extremely sensitive to an out-of-round or out-of-balance tire/wheel combination. As you increase the tire diameter and/or decrease the wheel backspacing the more sensitive the system becomes and can cause minor steering wheel shimmy.
  2. Not recommended for AWD models.
  3. Stock 17" and 18" wheels can not be re-installed. Stock 20" can be reinstalled with a factory tire.
  4. Will not fit adjustable air suspension equipped models.
  5. This kit will bolt on Eco-Diesel models but it will require an aftermarket front drive shaft.
  6. This kit is FMVSS No.126 Compliant.

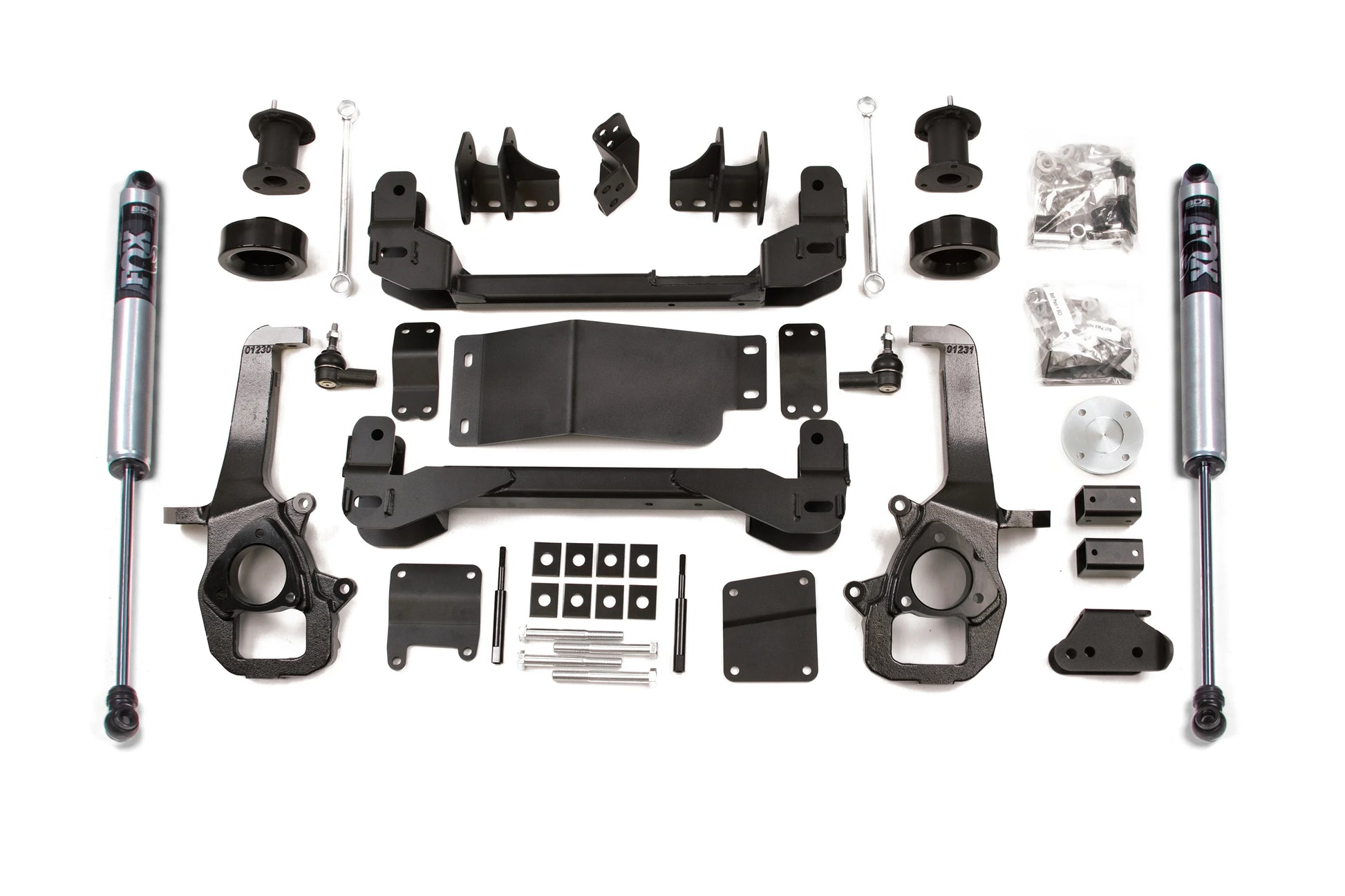

KIT COMPONENT LIST
1x BDS022209 09-12 Dodge 1500 2in Rear Spacer Kit
1x BDS022402 2012 Dodge 1500 4in Frnt Box Kit 3of4
1x BDS022625 2012 Dodge 1500 6 in Frnt Box Kit 4 of 4
1x BDS022630 2013 DODGE 1500 4WD FRONTBOXKIT (1 OF 4)
1x BDS022631 2013 DODGE 4WD FRONTBOXKIT (2 OF 4)
2x FOX98224758 Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1
