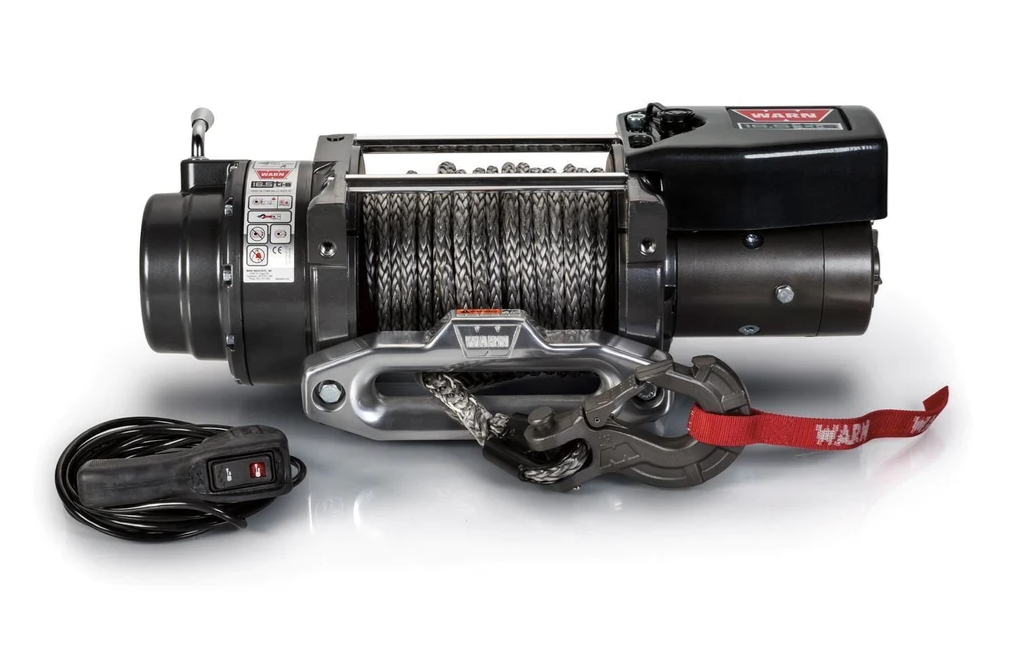

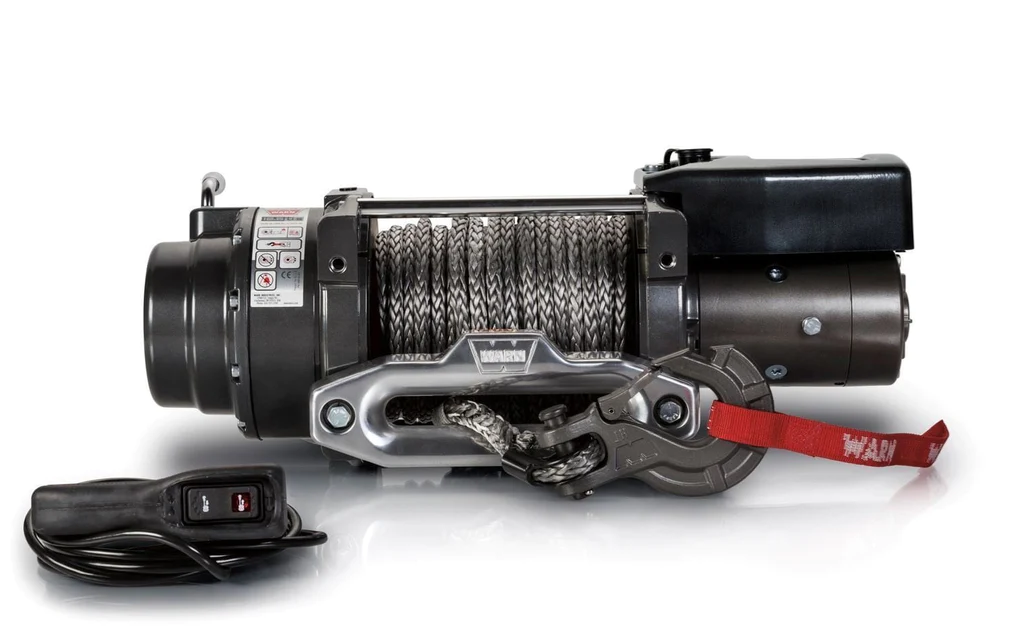

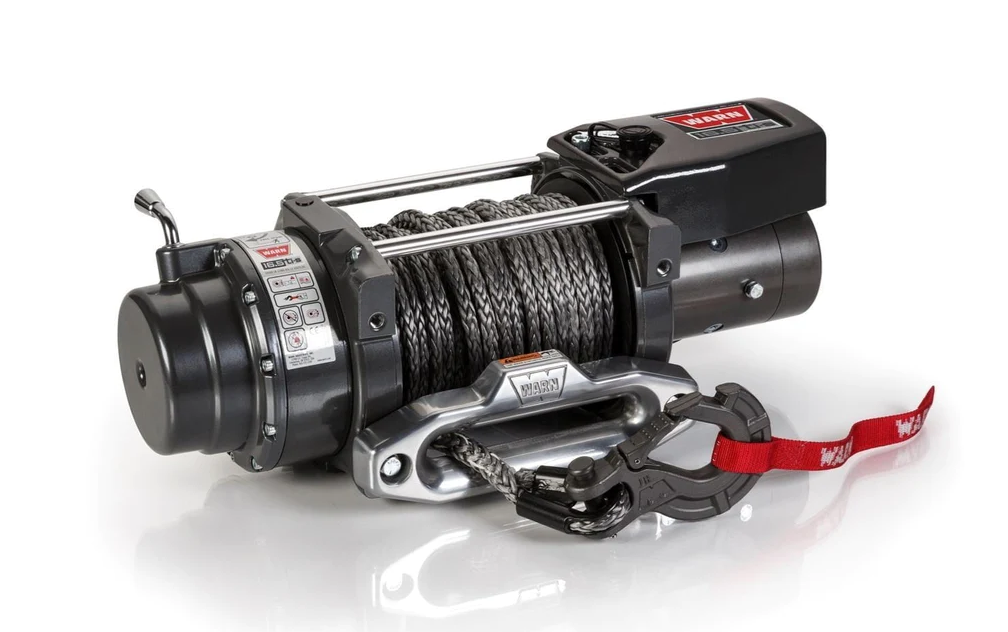

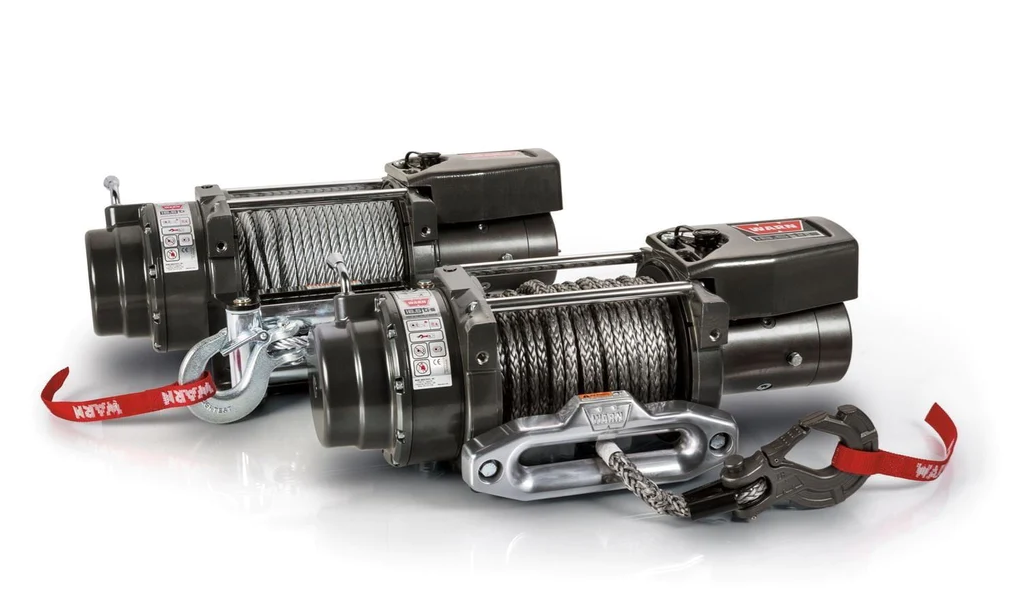

Warn 97740 16.5TI-S Big Rig Winch

Warn 97740 16.5TI-S Big Rig Winch

Regular price $5,499.00 AUD
Regular price Sale price $5,499.00 AUD
Sale Sold out
Tax included.

With a massive 16,500 lbs. of pulling capacity, the 16.5ti-s is not only the most powerful truck winch we make, it’s also now available with 80′ of 3/8″ lightweight, easy-to-handle Spydura® Pro synthetic rope. The rope’s heat-treated construction provides maximum tensile strength, and the temperature-resistant sleeve on the first layer provides maximum heat protection. This winch also features a thermometric indicator which provides operator feedback during the winching process and is great for the biggest, heaviest vehicles on or off the pavement.

SPECIFICATIONS:

  • Part Number: 16500TI-S-97740
  • Rated Line Pull: 16,500 lbs. (7484 kgs) single-line
  • Motor: 12V 4.6 hp, Gen II, Series Wound
  • Electrical Control: Solenoid Control Pack
  • Remote control: Remote switch, with LED indicator 12 ft (3.7m) lead
  • Gear train: 3-stage planetary
  • Gear ratio: 315:1
  • Clutch (free spooling): Rotating ring gear
  • Brake: Automatic mechanical cone
  • Synthetic rope: 9.5mm x 24.3M (3/8″ x 80′)
  • Fairlead: Aluminium hawse
  • Recommended battery: 650 CCA minimum for winching
  • Battery leads: 2 gauge, 72 in. (1.83m)
  • Finish: Ardent grey powder coat
  • Drum diameter/length: 3.5 in /8.2 in (9cm/21cm)
  • Weight: 104 lbs. (47 kgs.)

Dimensions 24.2″ L. x 8.5″ D. x 9.7″ H. (628mm L. x 216mm D. x 247mm H.)

Mounting Bolt Pattern 10.0″ x 4.5″ (254mm x 114.3mm)
