BDS 4 Inch Lift Kit w/ Radius Arm | FOX 2.5 Performance Elite Coil-Over Conversion | Ford F250/F350 Super Duty (11-16) 4WD | Diesel

BDS 4 Inch Lift Kit w/ Radius Arm | FOX 2.5 Performance Elite Coil-Over Conversion | Ford F250/F350 Super Duty (11-16) 4WD | Diesel

BDS Suspension

SKU: BDS1596FPE

In Stock — Ships within 1–3 business days

$12,500.00 + shipping

Authorised Dealers

Fitment Guarantee

Australia Wide Delivery

Expert Installation Available

Ask An Expert

Can't find what you are looking for? For trade pricing or volume discounts or just need help finding the correct product, call our sales team.

CALL NOW 07 5500 0095

4 Inch Lift Kit w/ Radius Arm | FOX 2.5 Performance Elite Coil-Over Conversion | Ford F250/F350 Super Duty (11-16) 4WD | Diesel

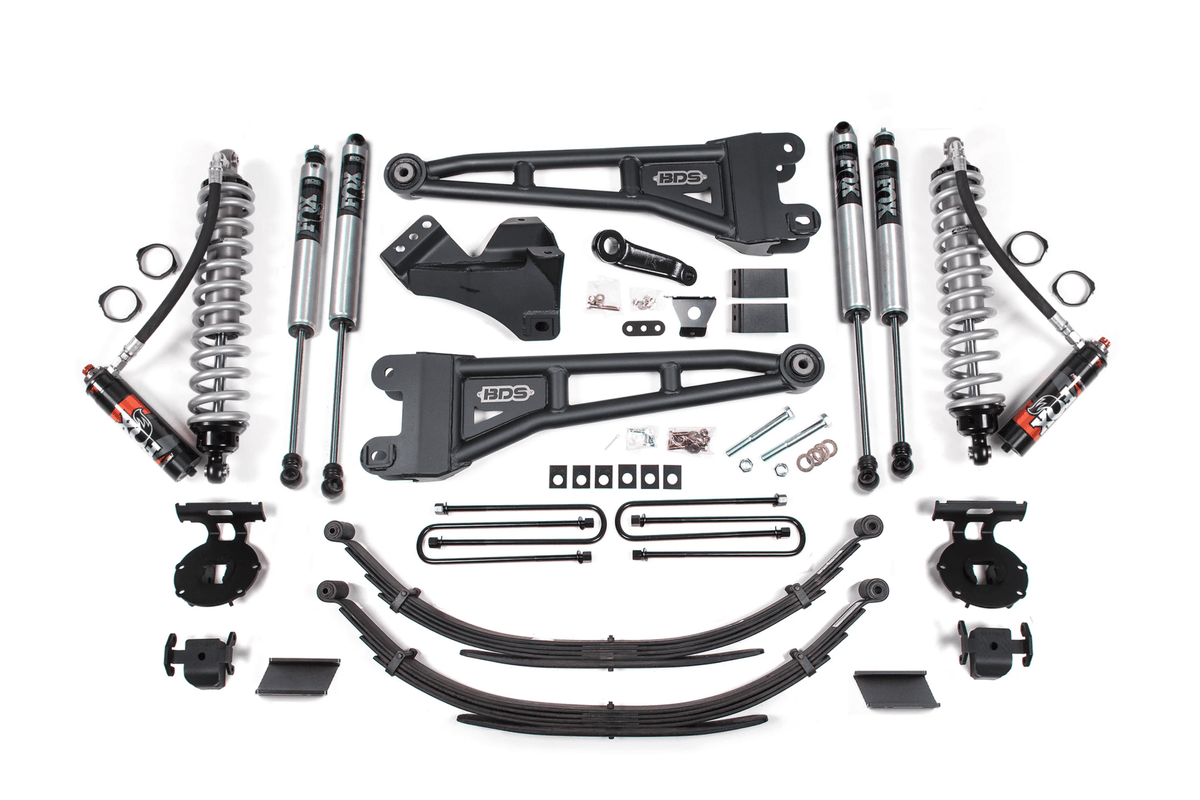

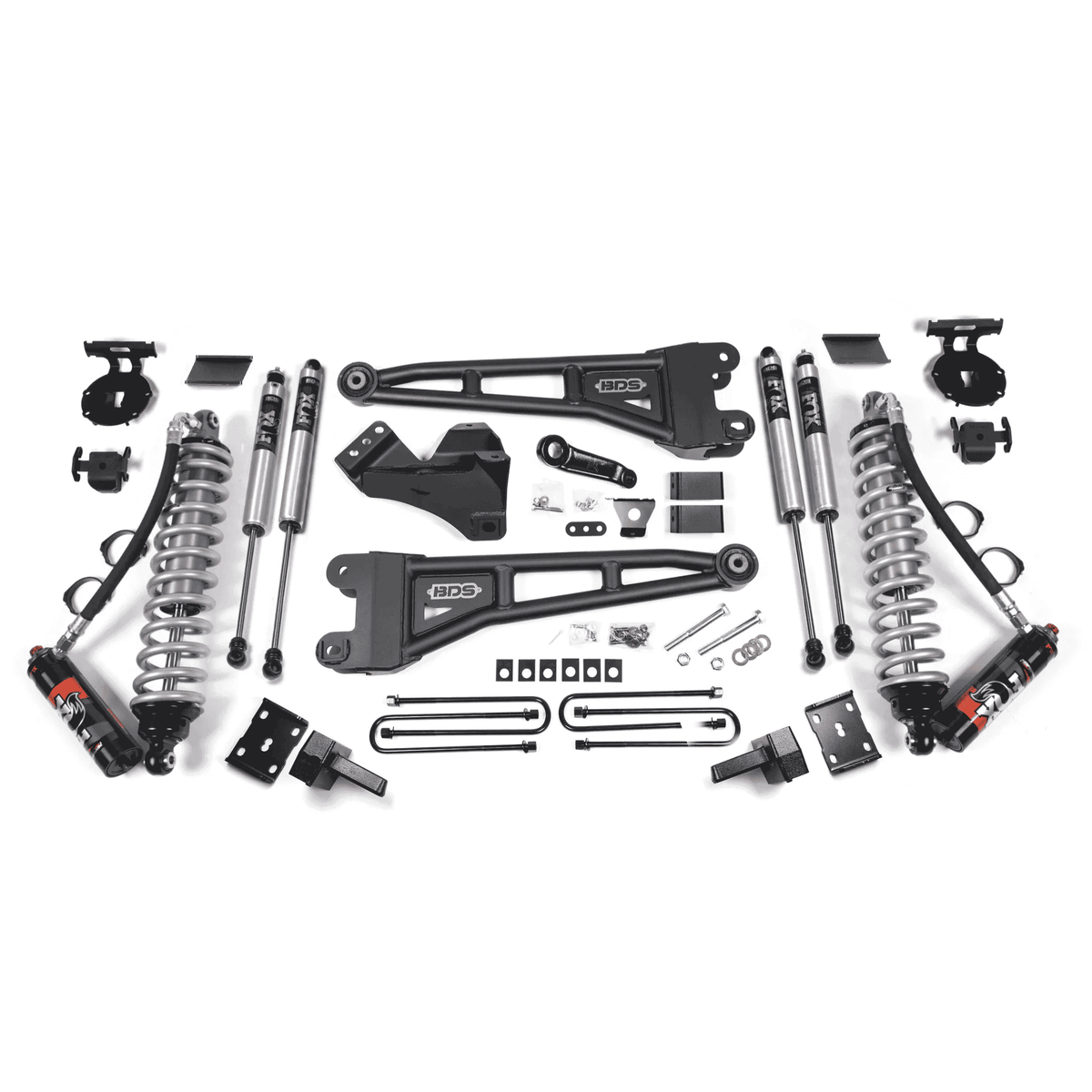

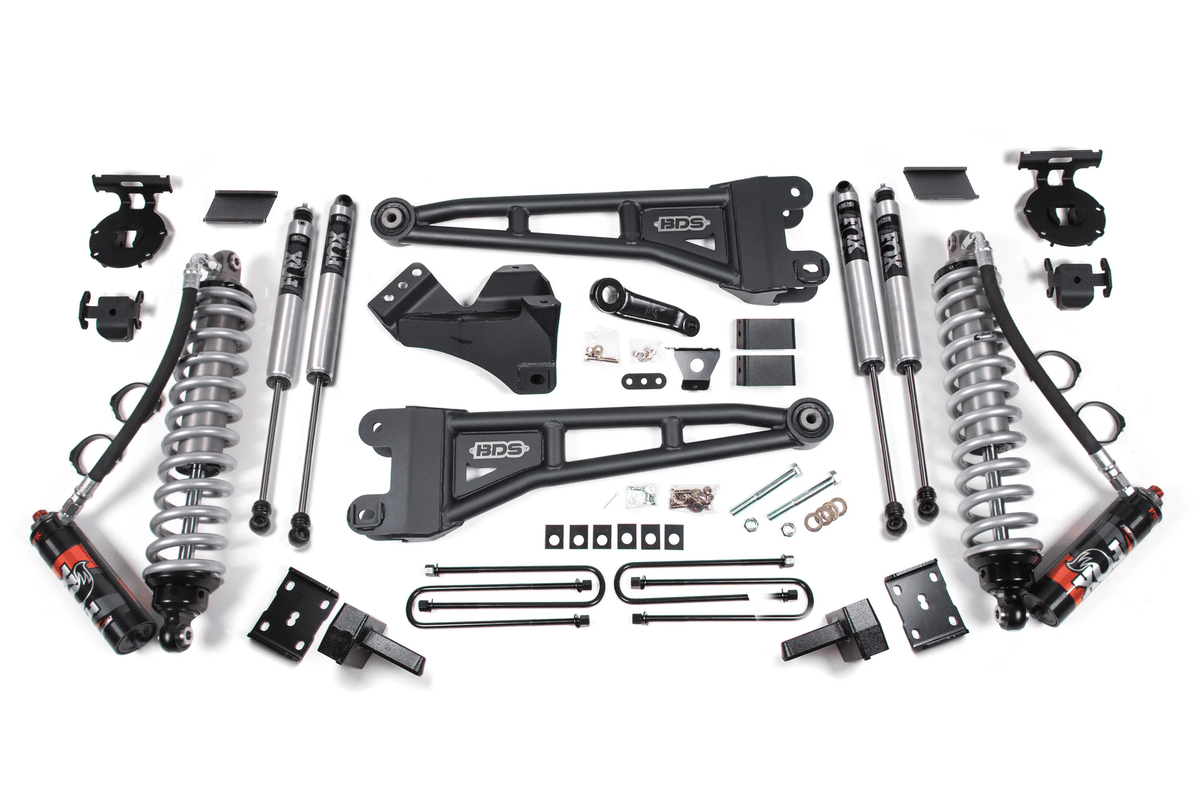

Built to outperform, upgrade your 2011-2016 Ford F250 and F350 Super Duty diesel powered truck with this 4-inch radius arm lift kit and FOX 2.5 Performance Elite Coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, heavy duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets.

In the rear this kit utilises a high-strength fabricated lift block, u-bolt flip kit for max ground clearance, brake line brackets and a matching set of FOX Performance shocks.

FOX Performance Elite Coil-Over

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodised aluminium reservoir to increase cooling efficiency.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Steering Correction

To optimise steering geometry once lifted, a forged drop pitman arm is used to minimise the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while re-centering the front axle.

Rear Lift Option

4 Inch Block Kit

Included in the base system.
Made of cast iron for high strength.
Designed to provide correct pinion angles.

Leaf Springs

Eliminates any need for a lift block.
Reduces axle wrap and creates a more controlled and stable feel.
Multi-leaf progressive design for a smooth ride.
Maintains factory payload weight ratings.
Features & Benefits
- FOX 2.5 Coil-Over mounts in factory coil bucket location
- Adds additional secondary FOX 2.0 shock for max performance
- Eibach coil springs ride smooth through the roughest terrain
- Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Fabricated steel blocks provide level stance from front to rear
- FOX shocks are fully serviceable and resistant to corrosion and harsh environments

FOX 2.5 Coil-Over mounts in factory coil bucket location

Adds additional secondary FOX 2.0 shock for max performance

Eibach coil springs ride smooth through the roughest terrain

Heavy duty tubular steel radius arms that correct caster while maximising ground clearance

Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling

Fabricated steel blocks provide level stance from front to rear

FOX shocks are fully serviceable and resistant to corrosion and harsh environments

Front Lift Method : Coil-Over

Front Lift Height : 4"

Rear Lift Method : Block

Rear Lift Height : 2"

Shocks Included : Yes

Est. Install Time :

8 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

Drill / Bit Set, Pitman Arm Puller

1 x 884-06-427 - Fox 2005+ Ford F250/350 Front 2.5" Remote Reservoir Coilover Shocks, Performance Elite Series, DSC, 4" Lift, Set of 2

2 x 982-24-700 - Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1

2 x 982-24-760 - Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

1 x BDS013424 - 2011-2016 Ford F250/F350 4" Radius Arm Front Box Kit

1 x BDS013519 - 2005-up Ford F250/F350 5in Rear Block

1 x BDS123212 - 2005-2016 Ford F250/F350 Super Duty Coil-over Mount Kit (2-4in)

1 x BDS123251 - BDS Suspension 2005-2022 Ford F250/F350 Radius Arm Kit, Pair, Black

Recommended Tyres & Wheels

(Trimming may be required)

35 x 12.5 with 18 x 9 and 4.5 in. Backspace

35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Removal of factory block required. Rear add a leaf is required for models equipped with factory 3-7/8" block for the level to tail high stance. Single add-a-leaf kit # 113218 recommended for more level stance - Dual add-a-leaf kit # 113209 recommended for tail high stance. (Add-A-Leafs do not apply to rear leaf spring-equipped systems)

If equipped with a 2-piece driveshaft, a driveshaft alignment kit (#123402) may be required.

Although extremely rare, front and/or rear driveline vibration may occur.

If equipped with a rear sway bar, #123009 is required.

U-bolts will not work on dually.
