BDS 4 Inch Lift Kit w/ Radius Arm | FOX 2.5 Coil-Over Conversion| Ram 2500 (19-25) 4WD

BDS Suspension

SKU: BDS1660PES

In Stock — Ships within 1–3 business days

$13,300.00 + shipping

Authorised Dealers

Fitment Guarantee

Australia Wide Delivery

Expert Installation Available

Ask An Expert

Can't find what you are looking for? For trade pricing or volume discounts or just need help finding the correct product, call our sales team.

CALL NOW 07 5500 0095

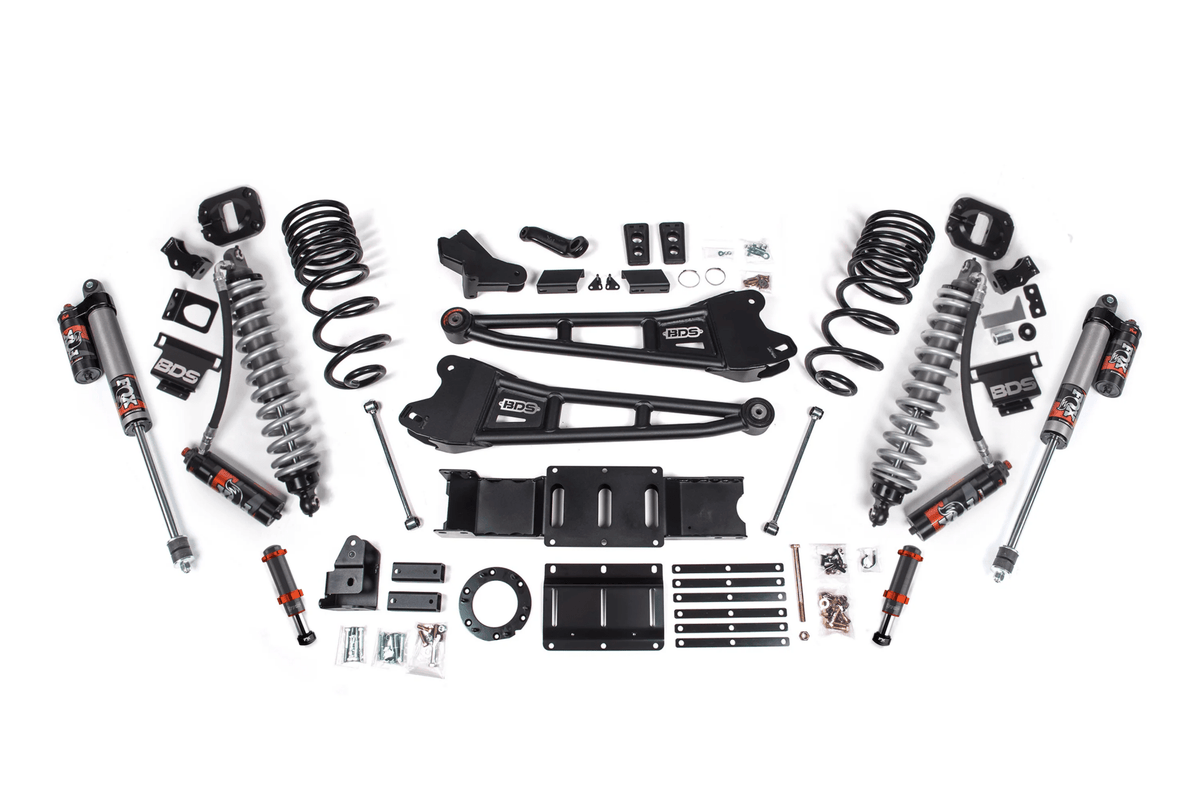

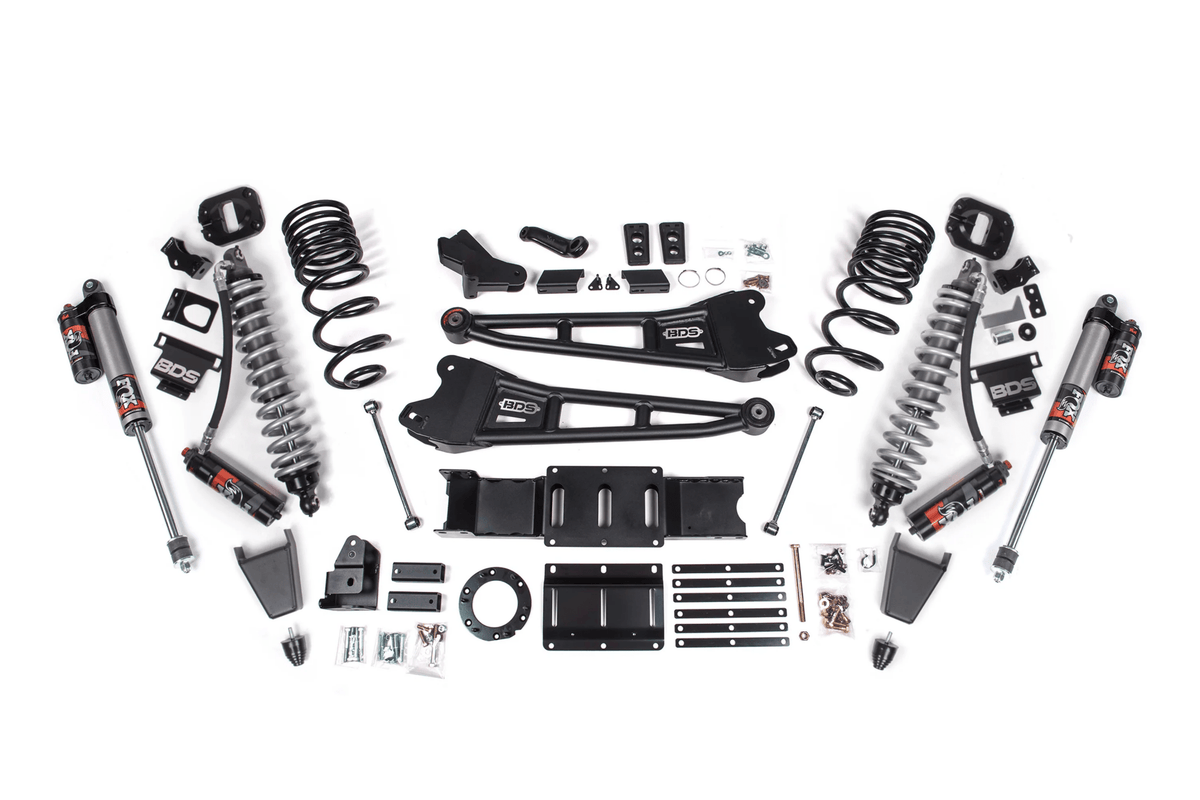

BDS 4 Inch Lift Kit w/ Radius Arm | FOX 2.5 Coil-Over Conversion| Ram 2500 (19-25)

Engineered for extreme terrain and relentless performance, this BDS 4" Radius Arm Lift Kit transforms your RAM 2500 into an unstoppable off-road machine. Swap out factory components for purpose-built BDS radius arms that deliver superior articulation and unmatched durability when tackling the toughest trails. Whether you're pushing limits or conquering challenging landscapes, this kit provides the strength and capability serious off-roaders demand.

Experience a complete suspension transformation with FOX Performance Elite coilovers up front and matching shocks in the rear. This BDS conversion delivers responsive handling, refined comfort, and advanced damping technology that performs flawlessly across any terrain—from smooth highways to brutal off-road conditions. Feel the difference precision engineering makes when every bump is absorbed and every corner is controlled.

Looking to push harder? The optional FOX 2.0 hydraulic bump stops for the front are a must. These add an extra layer of control when you’re hitting hard or landing heavy, soaking up big impacts and keeping things in check.

Whether you’re crawling rocks, hauling gear, or just turning heads in the parking lot, this kit is designed to deliver performance you can feel and durability you can count on.

Rubber Bump Stop:

Rubber factory style bump stops provide a hard stop for the suspension will keep your shocks and other components safe. They are great for road use and light offroading where the bump stops will be engaged at low speeds.

FOX 2.0 Factory Race Series Hydro Bump Stop:

Engineered to perform in the roughest terrain, the FOX 2.0 Hydraulic Bump stops provide one more layer of shock absorption when utilizing the full travel of your suspension. Ideal for the avid offroader who hits big obstacles and goes over rough terrain at speed to maintain comfort and control.

Fox 2.5 Performance Elite Coil over mounts in the factory coil spring bucket.

Fox 2.5 Performance Elite rear shocks.

Optional Auxiliary front shock absorber.

Heavy Duty tubular steel radius arms which correct caster while maximizing ground clearance.

Front adjustible track bar which allows the front of the truck to be re-centered after lifted.

Front sway bar correction to maintain handling performance.

Front Lift Method : Coil-Over

Front Lift Height : 4"

Rear Lift Method : Coil Spring

Rear Lift Height : 2.5"

Shocks Included : Yes

Est. Install Time :

7-8 hrs

Difficulty Level :

Difficult

Specialty Tools Needed :

8677 Chrysler ball joint seperation tool (or Equiv), Cut Off Wheel or Equiv., Plasma Cutter, Welding Equipment

Recommended Tyres & Wheels

(Trimming may be required)

37 x 12.5 with 17 x 9 and 5 in. Backspace

37 x 12.5 with 20 x 9 and 5 in. Backspace

37 x 13.5 with 20 x 9 and 5.625 in. Backspace

Will not fit air ride equipped models

Diesel models only

Not designed for Power Wagon models

Requires aftermarket driveshaft due to increased wheel travel.
