LOGIQ - 2020+ Chevrolet 2500 Air Spring Kit

Product Information

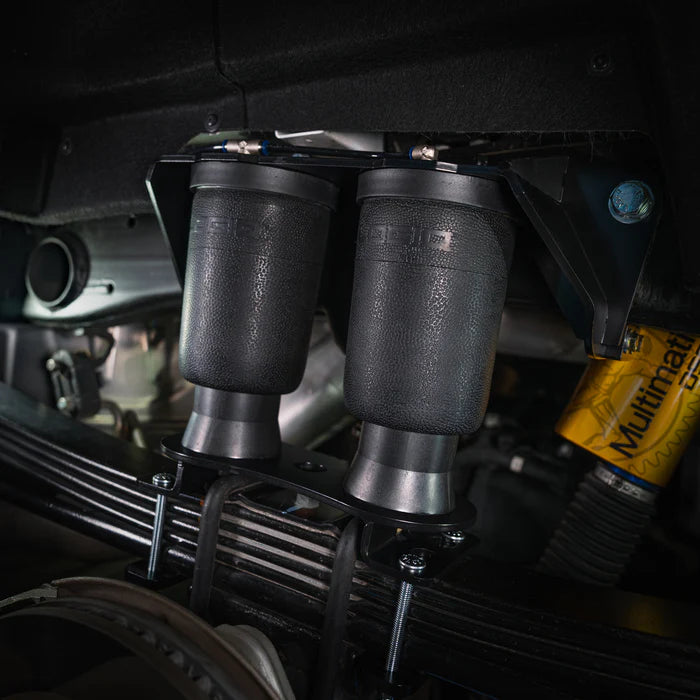

Unlock your GM's fullest potential with a LOGIQ Air Spring Kit. The leaf assist Air Spring Kit is proven amongst the hardest working trucks to not only improve load support, but drastically increase in-cab comfort when towing and hauling heavy loads. This kit is simple to install as it mounts between the frame rail and leaf pack of your vehicle. If your truck has factory overload springs, The LOGIQ Air Spring Kit will replace them and increase your loaded ride comfort even more while also improving upon lifting capacity and load support. Our Air Spring Kits come pre-assembled, meaning no drilling, no welding an no guesswork is needed to improve your ride immediately.

While most factory and aftermarket solutions compensate for heavy loads by solely increasing spring rate or adding more leaf packs, LOGIQ solves load leveling by using dual rolling sleeve air springs that are tuned to match the ride frequency of the front suspension, making for the smoothest ride possible in these trucks.


WARNING - Never exceed manufacturer's Maximum Payload or GVM

Kit Includes

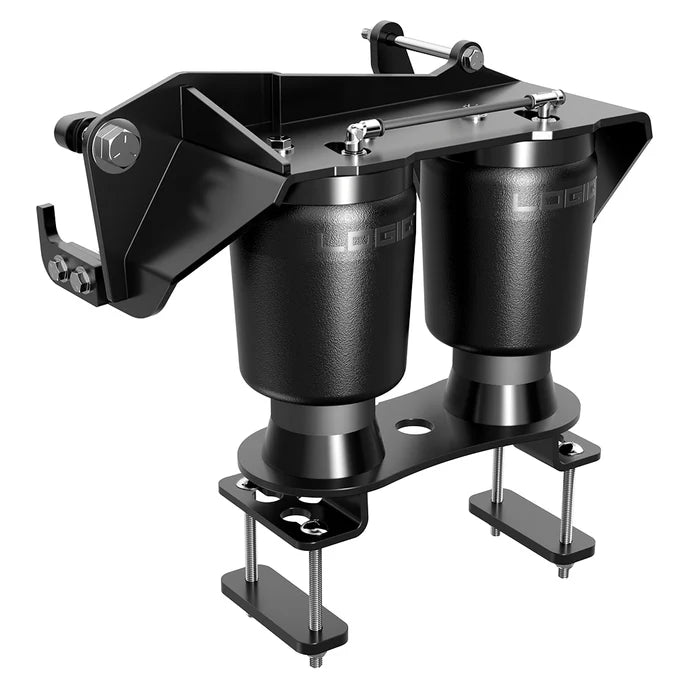

(1) Driver Side Air Spring Assembly
(1) Passenger Side Air Spring Assembly
(1) Hardware Kit
(1) Overload Spring Removal Hardware Kit

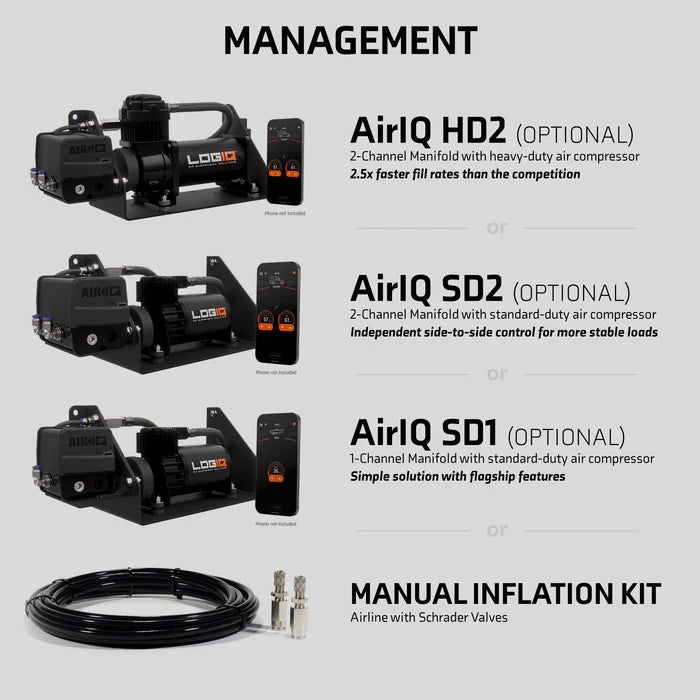

(1) Manual Inflation Kit

Fitment Notes

Not compatible with some aftermarket leaf springs.
Not compatible with aftermarket fuel tanks.

Tech Specs

Air Spring Location: Leaf Spring Mounted Outboard Frame Rails
Air Spring Quantity: 4
Load Capacity: 6,400 lbs @ 150 psi
Maximum Pressure: 150 psi
Minimum Pressure: 5 psi
