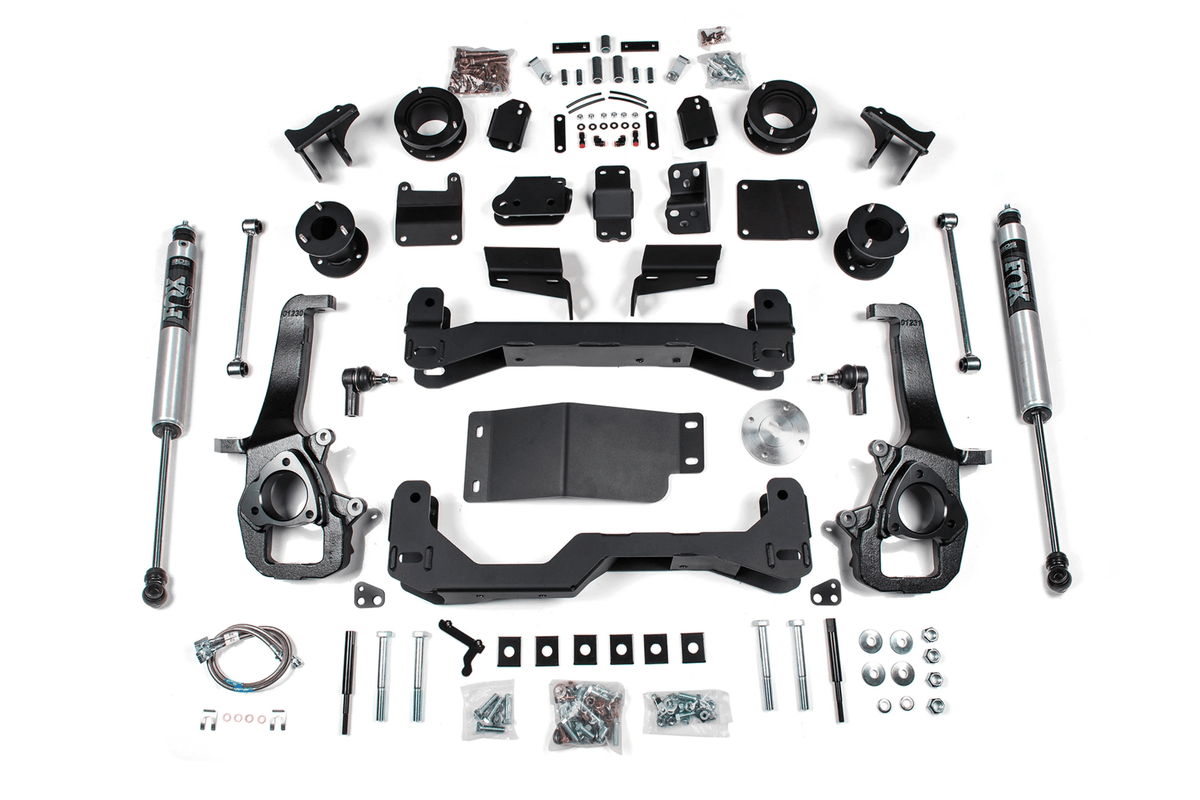

Boosting the performance and capability of 2019-2024 RAM 1500 trucks with factory rear air ride, the BDS 4 Inch Lift Kit is the ultimate upgrade. Elevate your truck's stance, enhance performance, and increase capability with this all-inclusive kit, providing enough clearance for 35" tyres.
Experience the ultimate in performance and offroad capability with BDS's 4 Inch Lift Kit for Ram 1500 LIMITED. Our innovative design offers maximum ground clearance, durability, and protection while also improving suspension and steering geometry for precise on-road handling. With top mounted strut spacers, reinforced steel crossmembers, and differential relocation brackets, this kit is built to withstand any terrain. And for added convenience, our CNC-machined ductile iron steering knuckles and tie rod ends allow for ESC system compatibility. Plus, with included components like sway bar drops, bump stop extensions, and stainless steel braided brake lines, this complete front suspension lift has everything you need to conquer any challenge. Don't settle for less than the best – choose BDS for unbeatable performance.
In the rear this kit utilizes top mounted air bag spacers, rear upper control arm relocation brackets to correct pinion angle, track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links. Also, new air lines and fittings are supplied to along with ride height sensor brackets to maintain propoer positioning and functionality of the factory air ride system at the new height. The rear of these kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
