BDS 5 Inch Lift Kit W/ Radius Arm | FOX 2.5 Coil-Over Performance Elite | Ford F250/F350 Super Duty (23-24)

BDS Suspension

SKU: BDS2206FPE

In Stock — Ships within 1–3 business days

$16,800.00 + shipping

Authorised Dealers

Fitment Guarantee

Australia Wide Delivery

Expert Installation Available

Ask An Expert

Can't find what you are looking for? For trade pricing or volume discounts or just need help finding the correct product, call our sales team.

CALL NOW 07 5500 0095

BDS 3" FOX Performance Elite Ford F250/F350 Super Duty 23-24

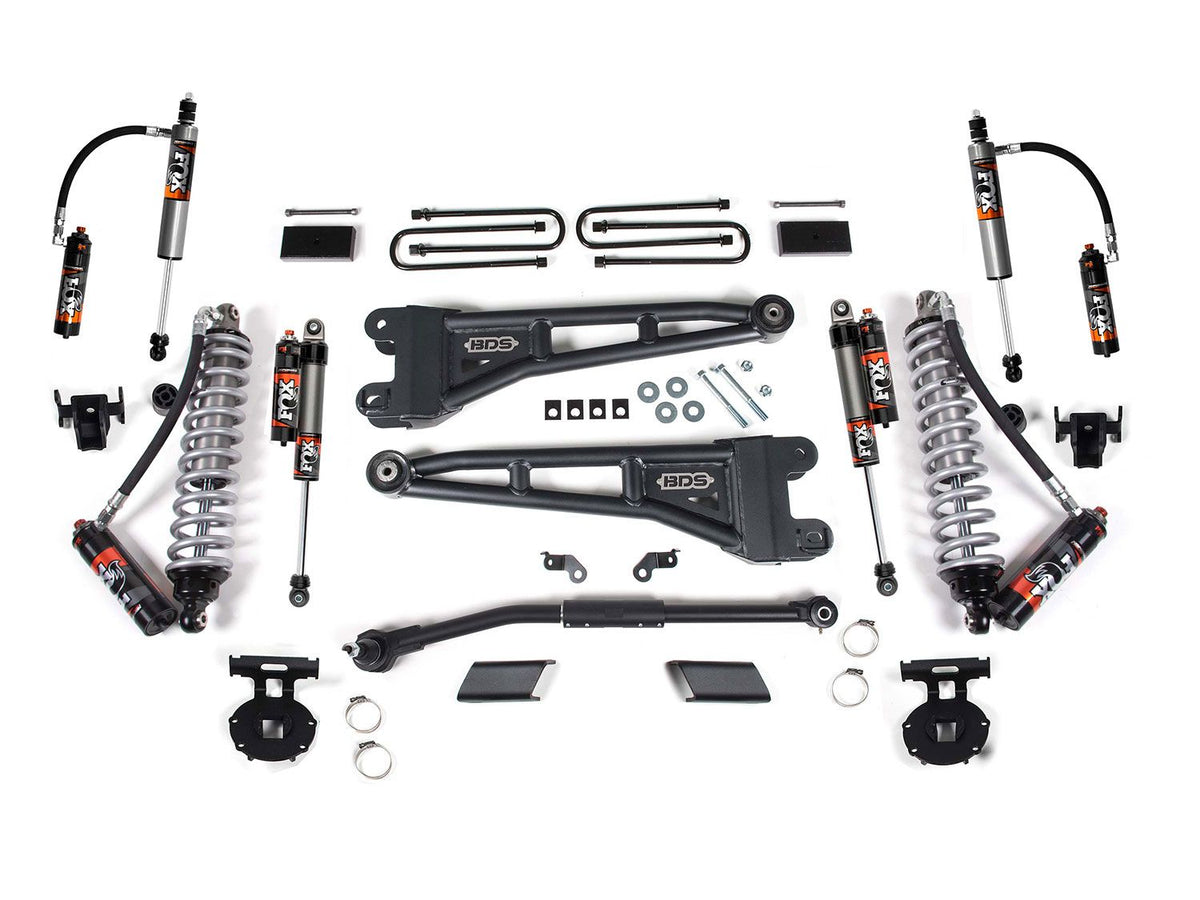

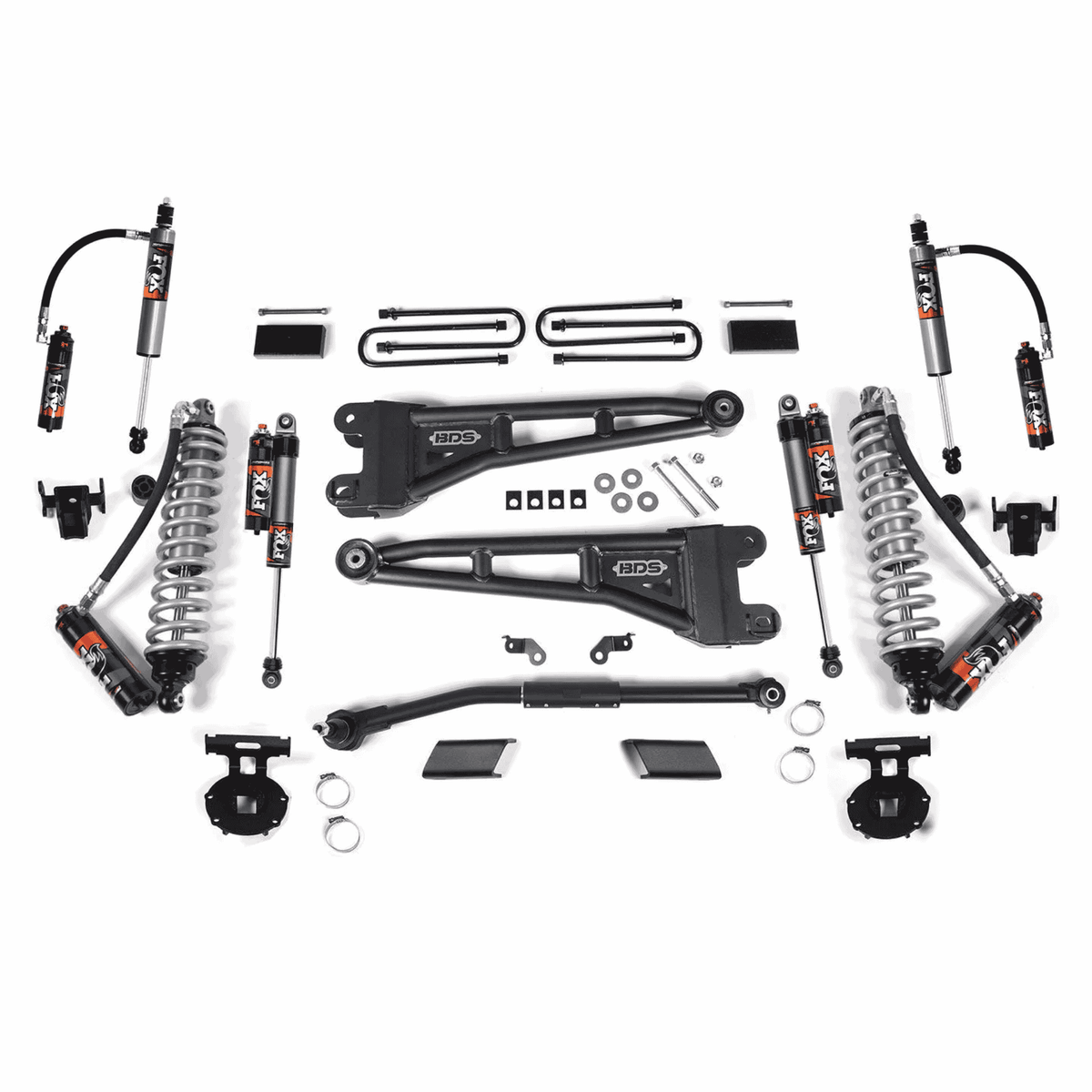

Transform your 23-24 Ford Super Duty truck into a high-performance machine with the BDS 5 Inch Lift Kit W/ Radius Arm and FOX 2.5 Coil-Over Performance Elite shocks. This kit is designed for diesel engines, providing improved stance, capability, and performance.

Experience the thrill of up to 37" tyres with this all-inclusive kit, featuring diesel-specific Pro-Ride coil springs, heavy duty radius arms, a 1-3/8 inch solid steel track bar for precise steering, sway bar relocation, brake line brackets, and precision tuned nitrogen. Upgrade your truck and unleash its true potential!

charged shocks.

FOX-021-CMYK-HiRes.png__PID:d54ebeb3-8397-4bf5-9159-569ba3bda665

FOX Performance Elite Coil-Over

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

HD Adjustable Track Bar

Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8" solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.

Easy, 100% Bolt-on installation

Pro-Ride dual rate coil springs ride smooth through any terrain

Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance

Adjustable solid steel track bar designed to recenter the front axle

Fabricated steel blocks provide level stance from front to rear

SPECIFICATIONS

Front Lift Method : Coil-Over

Rear Lift Method : Block

Shocks Included : Yes

Front Lift Height : 5"

Rear Lift Height : 3"

Est. Install Time: 10-12 hrs

Difficulty Level: Very Difficult

Specialty Tools Needed: Drill / Bit Set, Pitman Arm Puller, Reciprocating Saw

NOTE: For the OK by Zone Offroad and BDS Kits with 2.5" Remote Res shocks, please add 2 hours extra for all kits for fitment. It takes a little longer to mount the remote reservoirs compared to the standard shocks.

Recommended Tyres & Wheels

(Trimming may be required)

37 x 12.5 with 17 x 9 and 5 in. Backspace

37 x 12.5 with 18 x 9 and 5 in. Backspace

37 x 12.5 with 20 x 9 and 5 in. Backspace

IMPORTANT NOTES

Vehicles with radius arm mounted ride height sensors will require BDS123303.

Ford recommends the replacement of the pitman arm nut after each time it has been removed.

Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.

If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.

Due to the taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.

Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire fitment section.

Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.

Installation requires a torque wrench capable of 406 ft-lbs.

Trucks without top mounted overload springs will require (4) UBT4028.

Vehicles with leaf spring ride height sensors must select the rear block option.
