COMEUP SOLO 12.5rs GMF Winch for Silverado HD / Sierra HD

COMEUP SOLO 12.5rs GMF Winch for Silverado HD / Sierra HD

COMEUP
SKU: 16060024AA
In Stock — Ships within 1–3 business days
Call for Pricing
Authorised Dealers
Fitment Guarantee
Australia Wide Delivery
Expert Installation Available
Ask An Expert
Can't find what you are looking for? For trade pricing or volume discounts or just need help finding the correct product, call our sales team.
CALL NOW 07 5500 0095

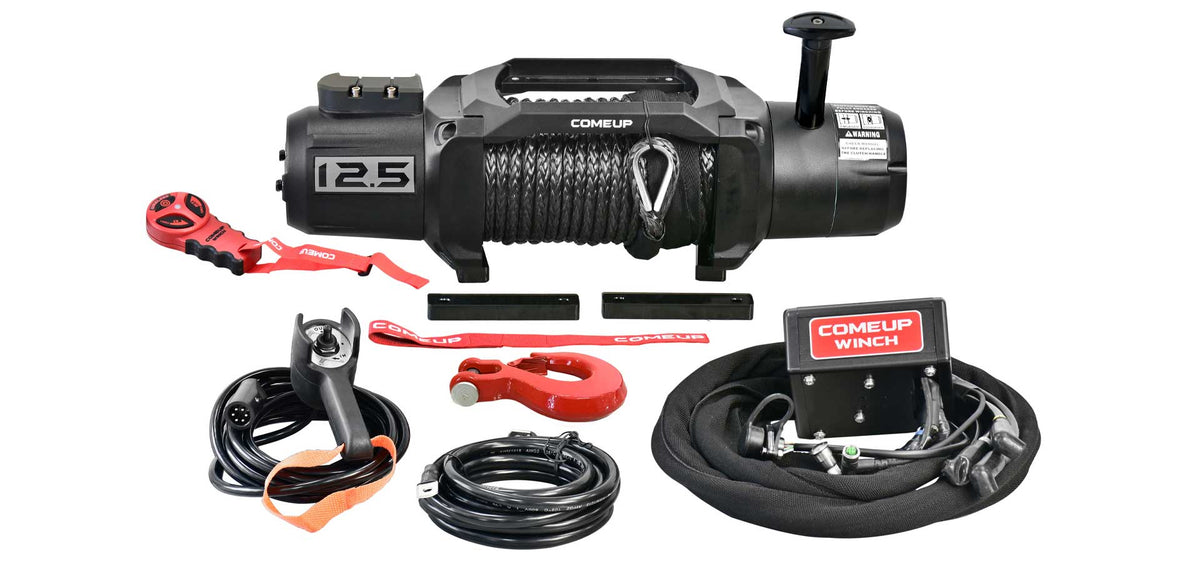

Designed specifically for Silverado HD and Sierra HD equipped with the AEV stamped-steel front bumper. The COMEUP SOLO 12.5rs GMF Winch features a compact design and a 12,500-lb. pulling rating. Kit includes winch, controller, wire harness, wireless remote control and wired waterproof remote control.

Key Features

  • 12V DC severe duty winch rated at 12,500 lbs. pulling helps meet your needs
  • Heavy-duty series wound motor delivers excellent torque output and fast line speed; equipped with a thermal protection switch to help prevent winch motor from overheating
  • Hardened steel, three-stage planetary gear train for efficient and reliable operation
  • Includes a built-in digital two-way wireless remote control and a wired waterproof remote control
  • 12-strand 69-foot synthetic rope, coated to improve abrasion with no water absorption
  • Patented mechanical cone brake located outside the drum expedites heat dispersion; the greater the load on the rope, the greater amount of braking is generated by the mechanism
  • Heavy-duty sealed contactor housing with silver-alloy contact pads, thick copper buss bars and submersible construction helps provide weather resistance



Line Speed and Amp. Draw (1st layer of wire rope on the drum)

Line Pull,
kg / lb 		Line Speed,
mpm / fpm 		Amp. Draw, A
No load 7.7 / 25.3 45
907 / 2,000 3.4 / 11.2 75
1,814 / 4,000 2.5 / 8.2 160
2,722 / 6,000 2.0 / 6.6 230
3,629 / 8,000 1.7 / 5.6 300
5,,670 / 12,500 0.9 / 3.0 470


Line Pull and Rope Capacity

Layer of Rope Pull by layer, kg / lb Total Rope on the Drum, m / ft
1st 5,670 / 12,500 4.8 / 15.7
2nd 4,499 / 9,919 10.9 / 35.7
3rd 3,729 / 8,221 18.5 / 60.7
4th 3,184 / 7,020 21.0 / 69.0
