LOGIC - 2009-25 1500 LIFT SPACER KIT
LOGIC - 2009-25 1500 LIFT SPACER KIT

LOGIQ RAM 1500 Air Spring Spacer Kit (2009+) – For 3" to 6" Lifts

Logiq
SKU: 89-11090-3
Available to Order
$227.70 + shipping
Authorised Dealers
Fitment Guarantee
Australia Wide Delivery
Expert Installation Available
Ask An Expert
Can't find what you are looking for? For trade pricing or volume discounts or just need help finding the correct product, call our sales team.
CALL NOW 07 5500 0095

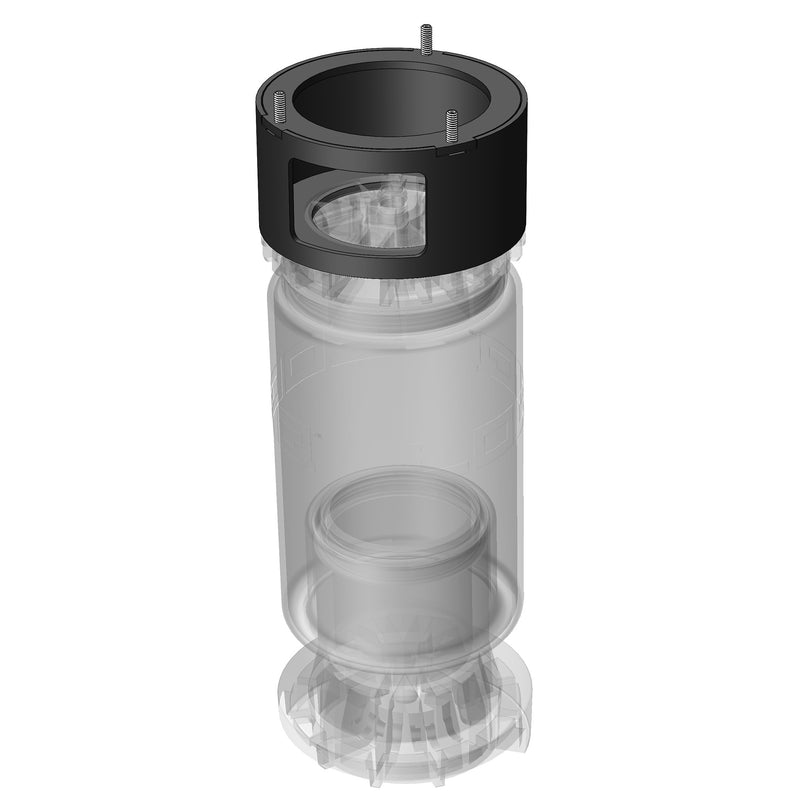

The LOGIQ Rear Spacer Kit for the 2009+ RAM 1500 lets your LOGIQ RAM 1500 Air Spring Kit (89-11090) work on a truck with a rear lift of 3" to 6" (approx. 76–152mm) above factory ride height.

Lifting a RAM 1500 changes the distance between the axle and the frame. Without spacers, the air springs can't make up that gap. The kit supplies air spring spacers that attach to the upper perch and the air spring, so your lifted RAM keeps the full suspension travel the airbag kit was designed for.

This kit is an add-on only. It's for use with the LOGIQ 89-11090 RAM 1500 Air Spring Kit and doesn't include air springs.

Why You Need the RAM 1500 Spacer Kit

  • Run LOGIQ air springs on a lifted RAM 1500. It's built for rear lifts between 3" and 6" above factory.
  • Keeps maximum suspension travel. The spacers position the air springs correctly for your new ride height.
  • Matched to the 89-11090 kit. It's designed specifically for the LOGIQ RAM 1500 air spring kit.

RAM 1500 Spacer Kit Specs

Fitment 2009+ RAM 1500 with LOGIQ Air Spring Kit 89-11090
Rear lift range 3" to 6" (approx. 76–152mm) above factory
Part number 89-11090-3

What's in the Box

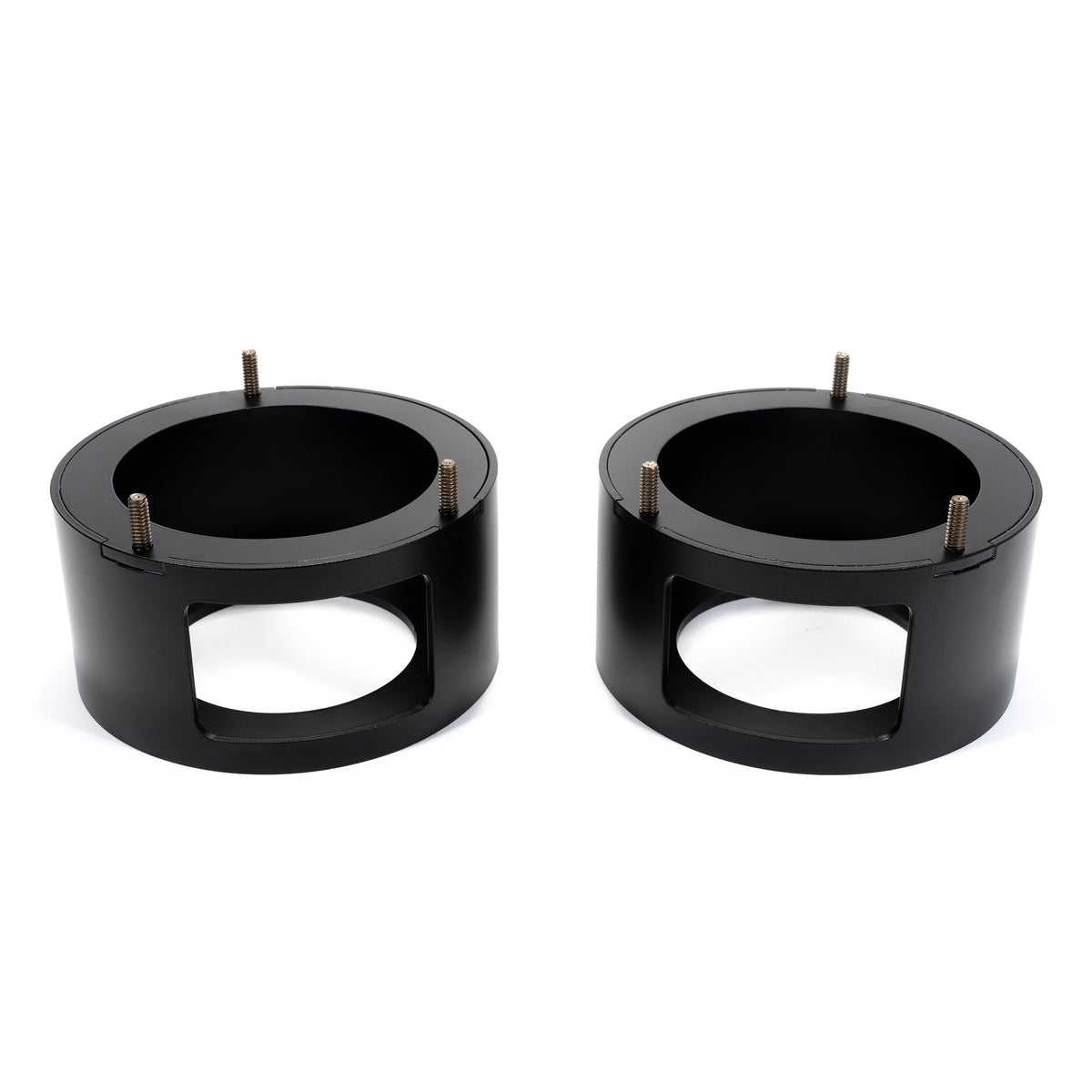

  • 2 × air spring spacers

Fitment Notes

  • For use with the LOGIQ 89-11090 RAM 1500 Air Spring Kit only.
  • Only needed if your RAM 1500's rear is lifted 3" to 6" above factory. Trucks at factory height or with less than 3" of rear lift don't need it.
  • The 89-11090 kit isn't compatible with RAM 1500 TRX or RHO trim packages, so this spacer kit isn't either.

Frequently Asked Questions

Do I need this spacer kit?

Only if your RAM 1500 has a rear lift of 3" to 6" above factory ride height. If you're unsure how much lift you're running, get in touch with your truck and suspension details and we'll confirm.

Does it include air springs?

No. This is the spacer kit only. You'll also need the LOGIQ RAM 1500 Air Spring Kit (89-11090).

Will it work with other airbag brands?

No. It's designed for the LOGIQ 89-11090 kit only.

What air management do you recommend with the RAM 1500 kit?

The RAM 1500 kit replaces your rear coils with full primary air springs, so we pair it with the AirIQ HD2 and its heavy-duty compressor, the same as our other full airbag kits. We also recommend adding the AirIQ Remote, and the 2-gallon air tank for faster recovery.

Can Tough Trucks install it?

Yes. Book a fitting at our Arundel or Mackay workshop and we'll take care of the install.

Download the RAM 1500 spacer kit installation instructions (PDF)
