Stage 1
5,500 kg
- Lift
- 3 inch torsion
- Suspension
- Fox 2.5 HTO, 500 kg rear packs, BDS control arms
- Payload
- About 1,708 kg
- Wheels
- Load-rated wheels required
- Tyres
- 125Q, up to 35x12.5
Chevrolet · GMSV only
Silverado 2500HD GVM Upgrade
A GMSV Silverado 2500HD arrives at 4,495 kg in NB1, or 5,148 kg if it is already NB2. These federally approved SSM packages take it to 5,500 kg or 6,000 kg. That is NB2, so the driver needs a Light Rigid licence. We fit the package as specified at Arundel or Mackay. Private imports are not covered. A taller lift does not add GVM once the stage is chosen.
Factory combined mass stays 12,474 kg and braked towing stays 4,500 kg on every stage. Payload below uses a 3,762 kg kerb. Your canopy, bar and winch eat into that payload.
Packages
Stage 1 is the 5,500 kg package. Stages 2 to 6.5 are all 6,000 kg. Stages 5, 6 and 6.5, and 37 inch tyres, are pre-registration builds.
Stage 2
6,000 kg
- Lift
- 3 inch
- Suspension
- Fox 2.5 Performance Elite, 500 kg packs
- Payload
- About 2,198 kg
- Note
- The touring stage. The lift is not why the rating went up.
Stage 3
6,000 kg
- Lift
- 3 inch coilover conversion
- Suspension
- Fox 2.5 Performance Elite, 500 kg packs
- Payload
- About 2,190 kg
- Note
- Same GVM as stage 2. Different front end.
Stage 3.5
6,000 kg
- Lift
- 3 inch coilover
- Rear
- Kelderman air instead of leaf packs
- Note
- For a canopy or tow-ball weight that changes trip to trip.
Stage 4
6,000 kg
- Lift
- 5 inch torsion
- Packs
- 550 kg rear packs
- Tyres
- 37 inch tyres are a pre-registration fitment
- GVM
- Same 6,000 kg as stage 2
Stage 5
6,000 kg
- Lift
- 6.5 inch torsion
- Suspension
- Fox 2.5 Performance Elite, 500 kg packs
- Fitment
- Pre-registration only
- GVM
- Same 6,000 kg as stage 2
Stage 6
6,000 kg
- Lift
- 6.5 inch coilover
- Packs
- 500 kg packs
- Tyres
- 128Q
- Fitment
- Pre-registration only
Stage 6.5
6,000 kg
- Lift
- 6.5 inch coilover
- Rear
- Kelderman 4-link air
- Fitment
- Pre-registration only. Still 6,000 kg.
Compare the stages
| Spec | Factory | Stage 1 | Stage 2 | Stage 3 | Stage 3.5 | Stage 4 | Stage 5 | Stage 6 | Stage 6.5 |
|---|---|---|---|---|---|---|---|---|---|
| GVM | 4,495 kg NB1 or 5,148 kg NB2 | 5,500 kg | 6,000 kg | 6,000 kg | 6,000 kg | 6,000 kg | 6,000 kg | 6,000 kg | 6,000 kg |
| Category | NB1 or NB2 | NB2 | NB2 | NB2 | NB2 | NB2 | NB2 | NB2 | NB2 |
| Payload | 733 kg NB1 / 1,386 kg NB2 | 1,708 kg | 2,198 kg | 2,190 kg | 2,190 kg | 2,138 kg | 2,138 kg | 2,138 kg | 2,138 kg |
| GCM | 12,474 kg | 12,474 kg | 12,474 kg | 12,474 kg | 12,474 kg | 12,474 kg | 12,474 kg | 12,474 kg | 12,474 kg |
| Braked tow | 4,500 kg | 4,500 kg | 4,500 kg | 4,500 kg | 4,500 kg | 4,500 kg | 4,500 kg | 4,500 kg | 4,500 kg |
| Lift | Factory | 3" | 3" | 3" | 3" | 5" | 6.5" | 6.5" | 6.5" |
| Suspension | Torsion | Torsion, Fox 2.5 HTO | Torsion, Fox 2.5 Elite | Coilover, Fox 2.5 Elite | Coilover and Kelderman air | 5" torsion | 6.5" torsion, Fox 2.5 Elite | 6.5" coilover | 6.5" coilover and Kelderman air |
| Rear | Factory leaves | 500 kg packs | 500 kg packs | 500 kg packs | Kelderman air | 550 kg packs | 500 kg packs | 500 kg packs | Kelderman air |
| Wheel load | 1,600 kg | 1,644 kg | 1,644 kg | 1,644 kg | 1,644 kg | 1,644 kg | 1,644 kg | 1,644 kg | 1,644 kg |
| Tyre index | Factory | 125Q | 125Q | 125Q | 125Q | 125Q | 125Q | 128Q | 128Q |
| Wheels required | No | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| When | — | Pre or post | Pre or post | Pre or post | Pre or post | 37" is pre-rego | Pre-rego | Pre-rego | Pre-rego |
What stays in the kit
In the approved package
- The shock and lift combination for that stage
- BDS control arms
- Rear packs, or Kelderman air on 3.5 and 6.5
- Flares where the stage needs them for the tyre
- Install at Arundel or Mackay
Quoted around it
- Load-rated wheels and tyres
- Bull bar, lighting, steps, long-range tank
- Anything that changes kerb weight
We do not swap the shocks, arms or packs for a different brand. That breaks the approval.
State-Based Engineering
A state-based modification plate sets the kilograms for the VIN. Use it to stay at or under 4,500 kg on a car licence, or when the truck is a private import and cannot take the federal package. The McGaughy's and BDS kits below are off the shelf. They are not the SSM stage table.
Signature kits
Off-the-shelf kits
These are the lift kits we sell for a state-based plate. Wheels, tyres, lights and a bar are open on this path. They are quoted with the kit, and they are listed under Add-ons.

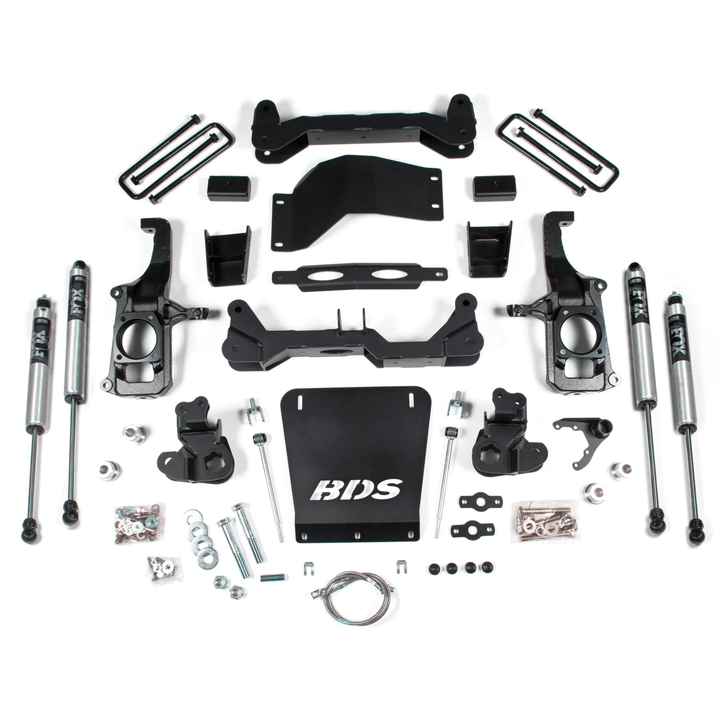

BDS 4.5 Inch Lift Kit Fox 2.0 | Chevy Silverado Or GMC Sierra 2500HD/3500HD (11-19)$7,150.00

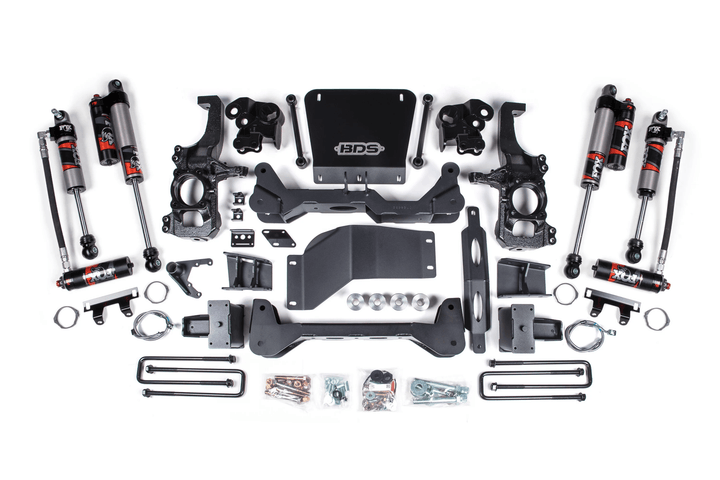

BDS 5 Inch Lift Kit | FOX Performance Elite | Chevy Silverado Or GMC Sierra 2500HD/3500HD (20-26)$12,300.00
4 Inch Premium Lift Kit w/ M84 Reservoir Shocks 2020-2026 Silverado/Sierra 2500 2WD/4WD - 52404$13,809.99

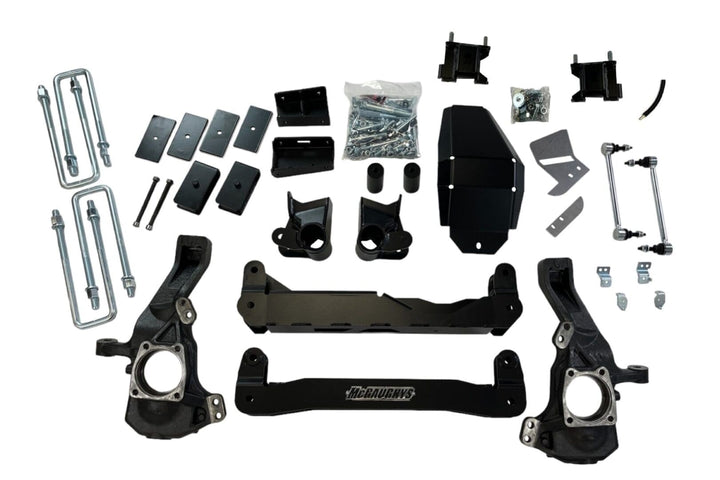

4 Inch Premium Lift Kit 2024-2026 Silverado/Sierra 2500 ZR2/AT4X - 52454$11,690.00

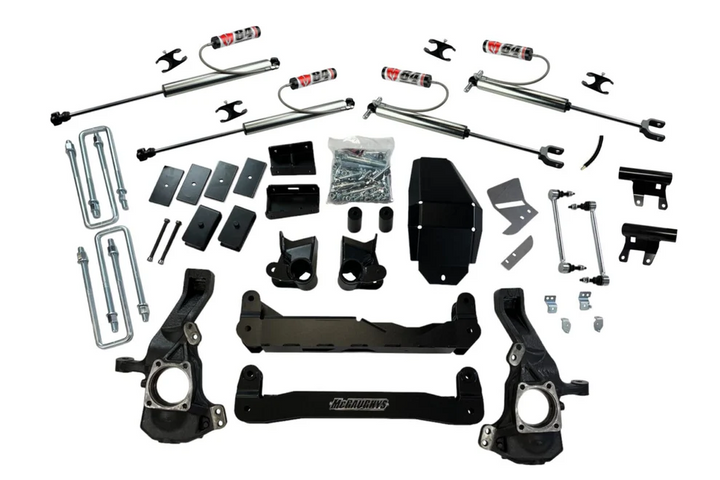

4 Inch Premium Lift Kit w/M84 Reservoir Shocks 2020-2026 Silverado/Sierra 3500 2WD/4WD - 52405$13,860.00

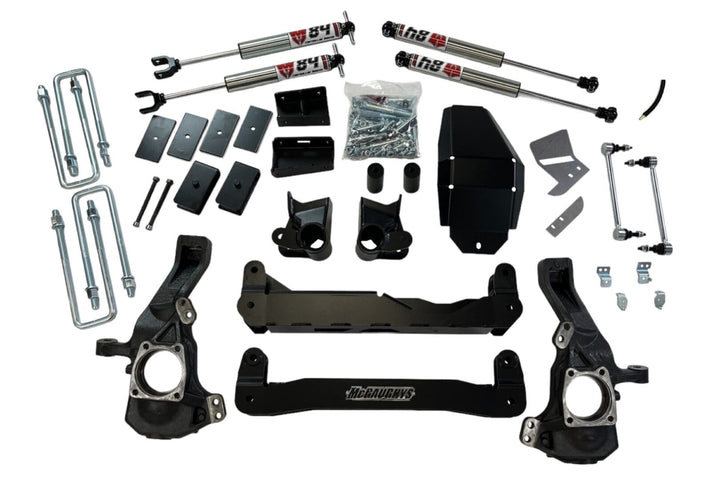

4 Inch Premium Lift Kit w/M84 Shocks 2020-2026 Silverado/Sierra 3500 2WD/4WD - 52455$11,690.00
Add to the build
Where a stage needs a load-rated wheel, we quote it with the package. It is not approved until the provider signs it off and the load rating meets the figure in the table. The order is an AEV wheel that fits this truck, then the KMC KM733 Impact FFT on an HD 8-lug, then Fuel Maverick or Fuel Vapor in 18x9 or 20x9 at +20. Method is not on this list. Tyres are a BFGoodrich Mud-Terrain T/A KM3 when a size meets the stage load index, or a BFGoodrich all-terrain. Lights and a bull bar sit outside the approved kit. A bar, winch or canopy adds kerb weight and uses payload.

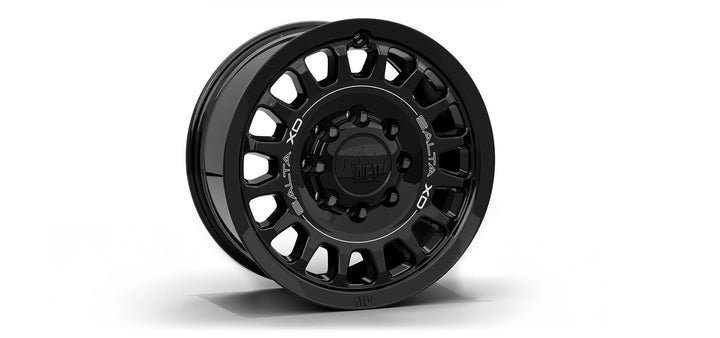

WheelsAEV Salta XD Wheel for 2024+ Silverado HD & Sierra HDAEV Salta XD for a 2024-on Silverado HD. Earlier HD years are quoted.
WheelsKMC WheelsKMC KM733 Impact FFT when the truck is an HD 8-lug.
LightingKC HiLiTESOutside the approved package.
LightingDiode DynamicsOutside the approved package.
Bull barRugged BullbarsAdds kerb weight. Does not change the approved kit.
AEVAmerican Expedition VehiclesBumper only where we stock one for this truck.
Silverado 2500 GVM questions
Can I keep a car licence?
Not on these packages. 5,500 kg and 6,000 kg are NB2, which needs a Light Rigid licence, a zero blood-alcohol limit, and heavy-vehicle rules. To stay at or under 4,500 kg, that is State-Based Engineering and we set that rating for the VIN.
Will you do a private import?
No. This approval is GMSV Silverado 2500HD only, 2020 to 2026. A privately imported truck is State-Based Engineering, and the kilograms will not be these stage figures.
Does the 6.5 inch package carry more than the 3 inch package?
No. Stages 2 through 6.5 are 6,000 kg. The extra lift is stance and tyre size. Stage 1 is the only 5,500 kg package.
Which wheels can I run?
Every stage needs a wheel rated to at least 1,644 kg. We quote AEV first where it fits, then a KMC KM733 Impact FFT, then Fuel Maverick or Vapor at +20. Nothing is fitted until that wheel is signed off for the stage. Stages 1 to 5 need a 125Q tyre. Stages 6 and 6.5 need 128Q. A BFGoodrich KM3 is the tyre we spec when the size meets that index.
Request a quote Silverado 2500HD
Tell us the VIN, the stage, and whether the truck is already registered. We fit the approved package as specified. Pricing is on application. Call 07 5500 0095.
